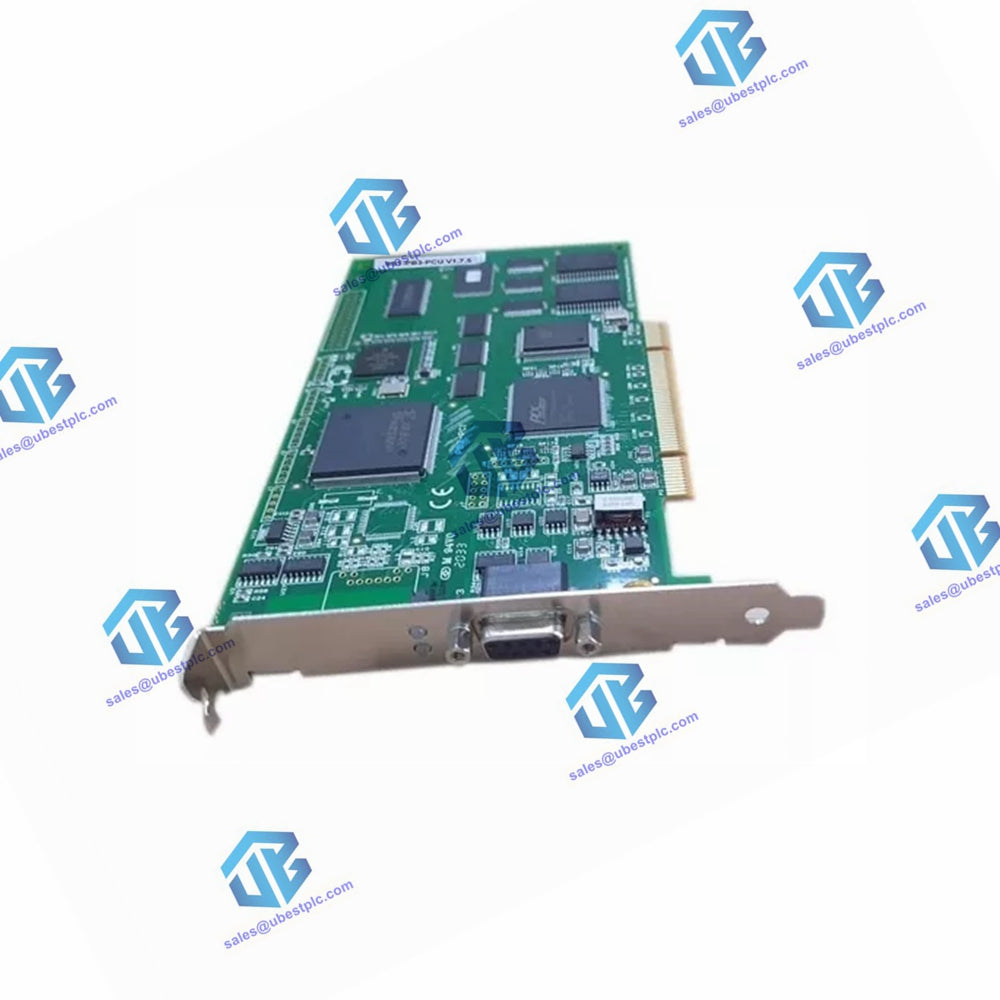

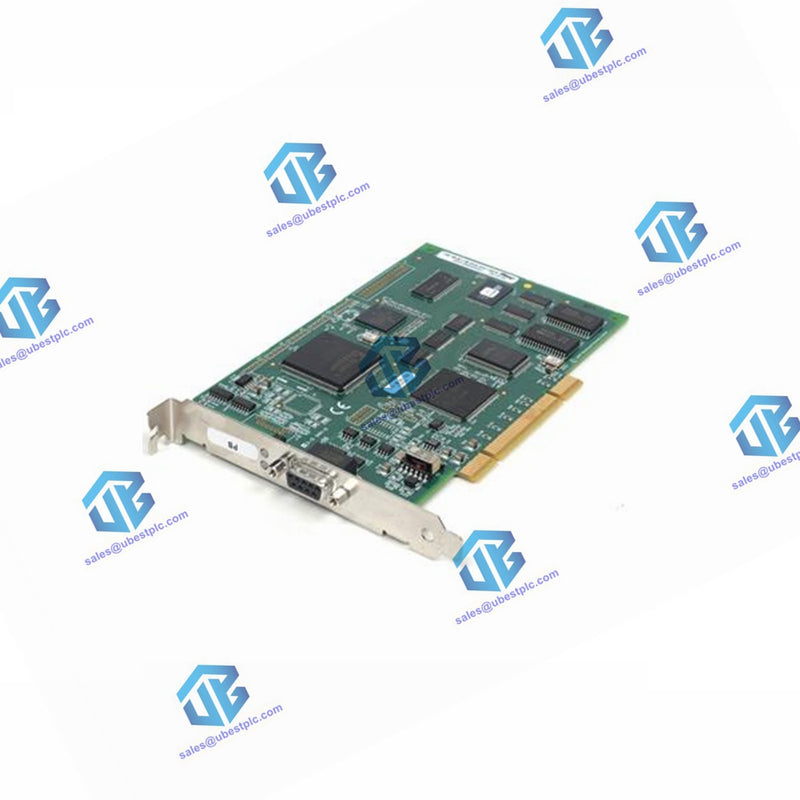

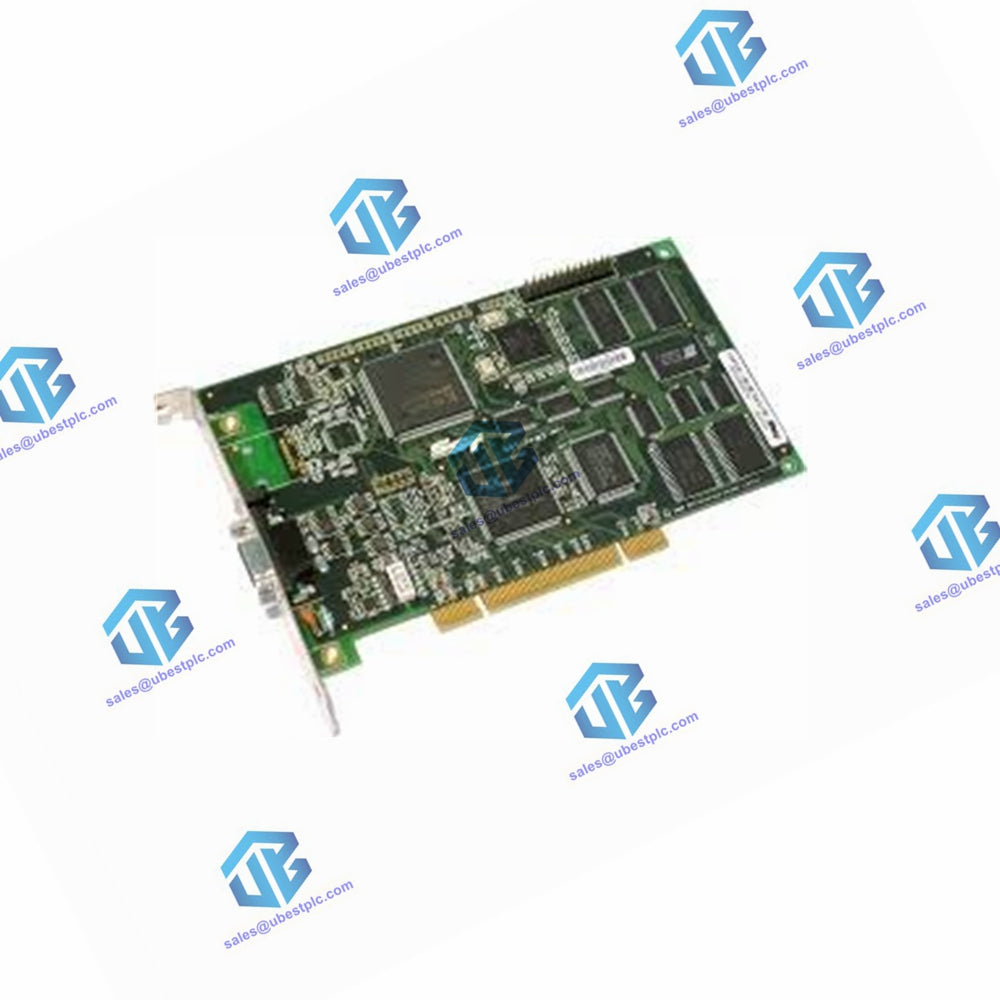

SST-PB3-PCU Woodhead PROFIBUS Interface PCI Card

Technical Specifications

• Brand: MOLEX WOODHEAD
• Product Name: SST-PB3-PCU
• Part Number: 1120110020
• PCI Compatibility: Universal PCI bus, 3.3V/5V; PCI-X compatible
• PROFIBUS Protocols Supported:
  • PROFIBUS DP Master
  • PROFIBUS DP Slave
  • FDL (Layer 2)
  • Master Class 1 and Class 2 DPV1
• Baud Rates: Supports from 9.6 Kbaud to 12 Mbaud, including 45.45 kbps
• Processor: ColdFIRE 5272
• Memory:
  • One channel: 256K Window
  • Two channel: 512K Window
• Interrupts: Hardware Plug & Play (32 Kbytes used per card)
• Voltage Requirements: Supports both 5V and 3.3V operation
• Current Draw: Typical current draw of 600 mA
• Dimensions:
  • Length: 6.875 inches (17.463 cm)
  • Width: 4.2 inches (10.668 cm)
• Diagnostic Indicators: LEDs for system status, watchdog timeout, and communication status
• Configuration Storage: Flash memory for storing configuration
• Operating Systems Supported: Windows (with API support for DPV1 functionality)
• Weight: 0.295kg
