Rockwell 1768-PB3 Allen-Bradley Power Supply Module

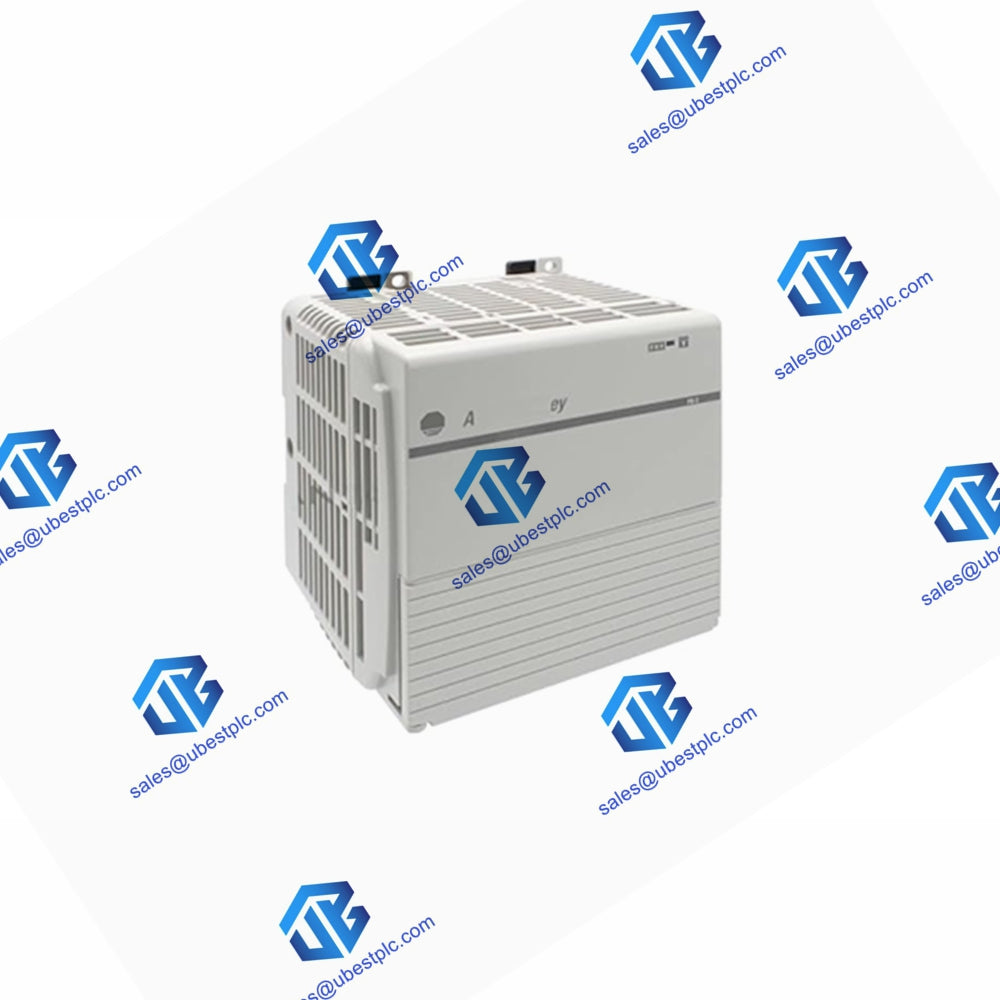

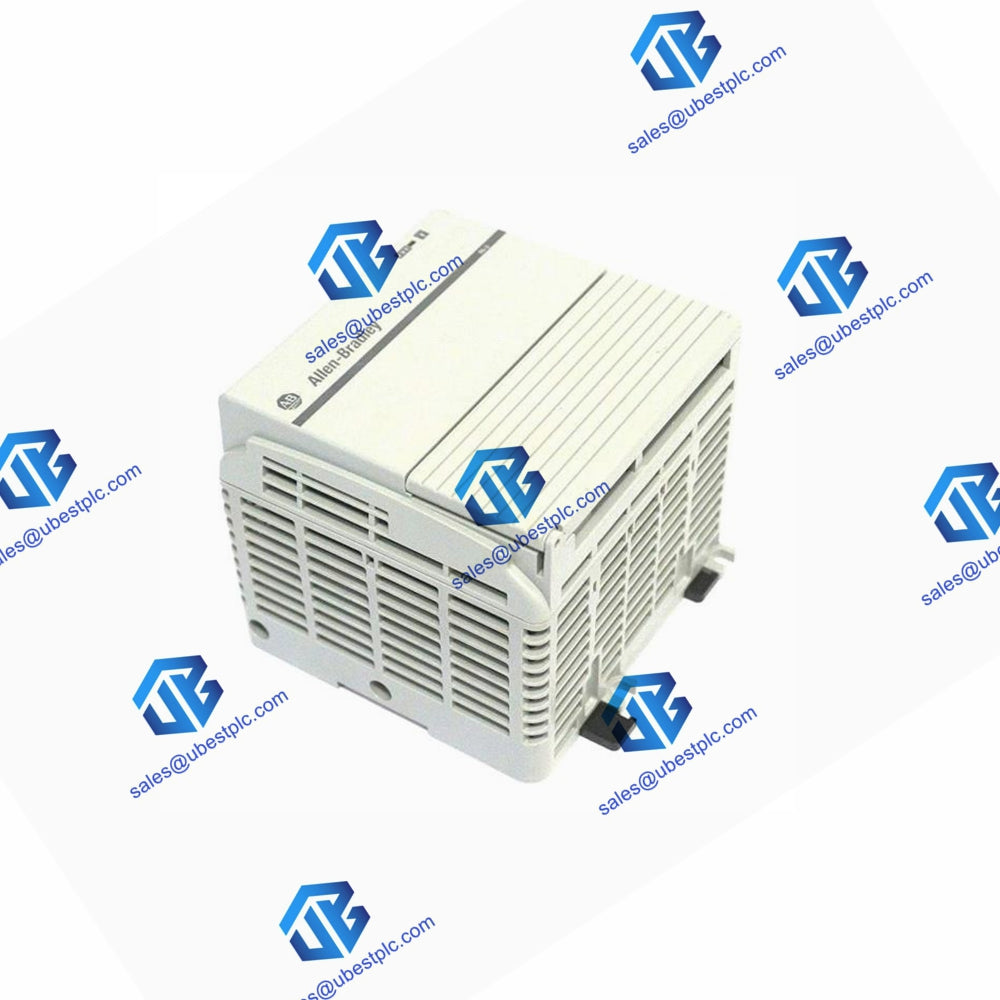

Allen-Bradley 1768-PB3 CompactLogix Power Supply Module

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Product Family: CompactLogix

• Product Type: Power Supply

• Part Number: 1768-PB3

Key Features:

• Input Voltage Range: 16.8V DC to 31.2V DC
• Output Voltage: 24V DC (continuous)
• Max Output Power: 90W
• Maximum Output Current: 3.5A to backplane
• Current to User Terminal Block: 0.25A
• Power Dissipation (Max): 22W at 24V DC
• Inrush Current: 50A maximum @ 16.8-31.2V DC
• Inrush Current (Nominal): 30A at 16.8-31.2V DC
• Isolation Voltage: 250V, Reinforced Insulation (tested at 4250V DC for 60s); 150V Basic Insulation (tested at 2200V DC for 60s)
• Non-replaceable Fuse Protection: Soldered in place for internal overcurrent protection
• External Overcurrent Protection: Recommended 8...12A @ 166...250A2S

Technical Specifications:

• Input Power (Max): 112W at 24V DC
• Continuous Output Power (Min): 6W (0.25A to backplane and 0.0A to terminal block)
• Continuous Output Power (Max): 90W (3.5A to backplane and 0.25A to terminal block)
• Input Current Range: Nominal 3.5A
• Input Voltage Range: 16.8V to 31.2V DC
• Weight: 1.01kg
