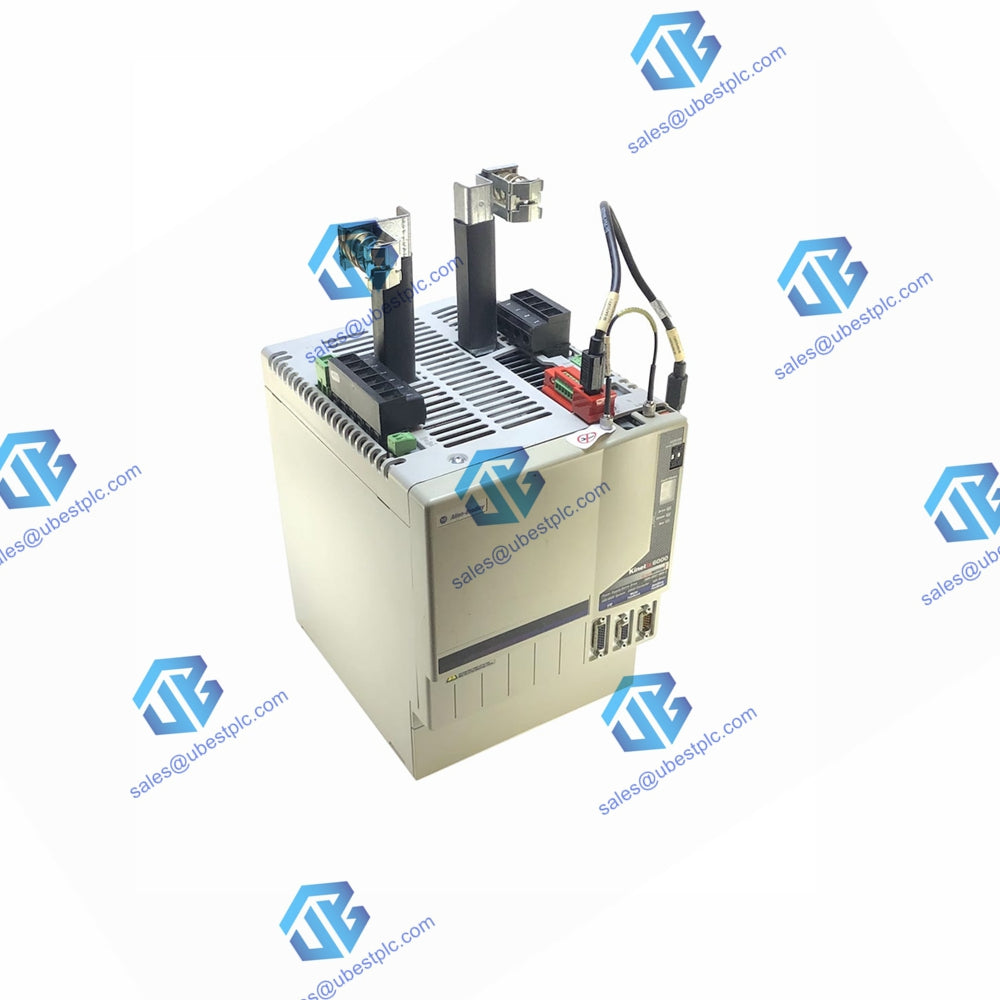

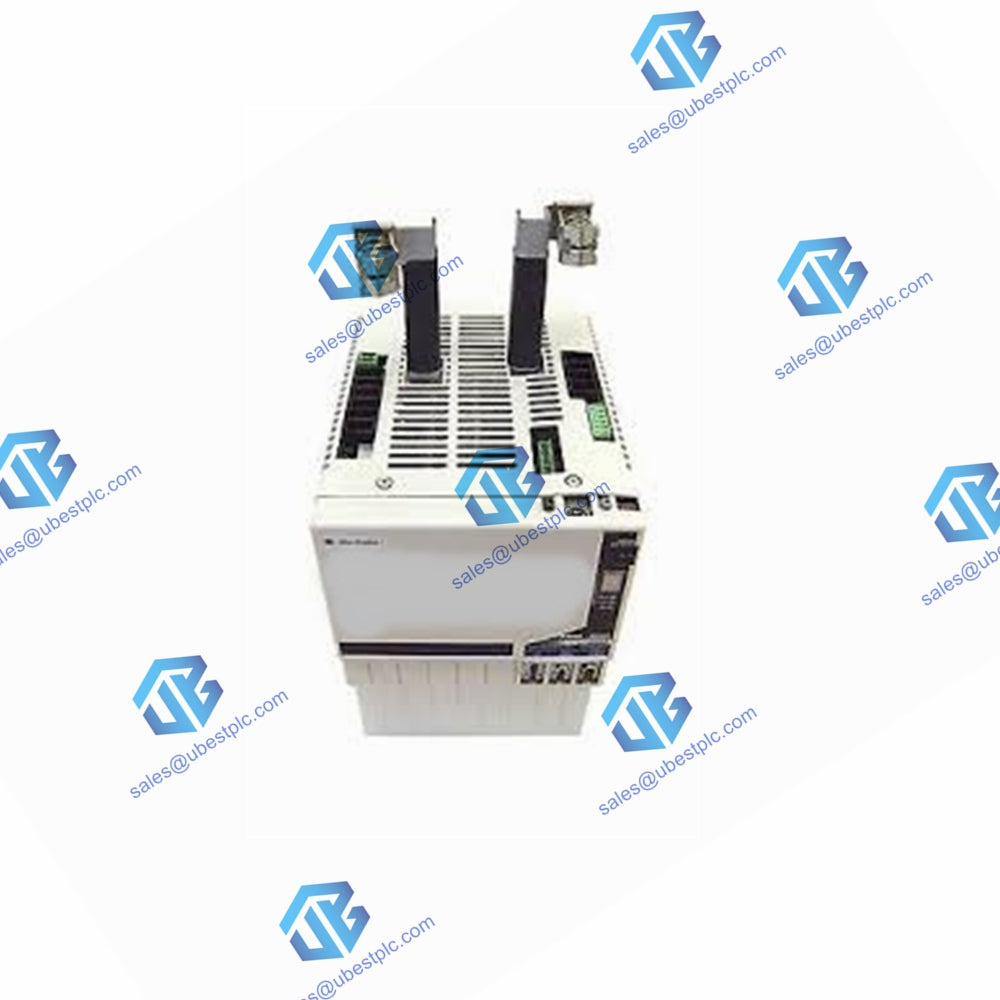

Technical Specifications:
Manufacturer:
Allen-Bradley
Product No.:
2094-BC04-M03-S
Product Type:
Integrated Axis Module
🔧 Product Model and Type
| Product Model |
2094-BC04-M03-S |
| Product Type |
Kinetix 6000 Integrated Axis Module |
⚙️ General Specifications
| Brand |
Allen-Bradley |
| Manufacturer |
Rockwell Automation |
| Operating Temperature |
32-122°F (0-50°C) |
| Module Location |
Leftmost of the Power Rail |
| Weight |
21.1 lbs (9.60 kg) |
🔋 Power Input and Output
| AC Input Voltage |
324-528 Volts rms 3 Phase (360-480 Volts nominal) |
| AC Input Frequency |
47-63 Hertz |
| AC Input Current (nom rms) |
44.0 Amperes |
| AC Input Current (Max Inrush 0-peak) |
31.1 Amperes |
| DC Input Voltage (Common Bus Follower) |
458-747 Volts |
| DC Input Current (Common Bus Follower) |
41.5 Amperes |
| Converter Section Output |
28 kW |
| Inverter Section Output Current |
30 Amperes |
💻 Control and Frequency
| Velocity Loop Bandwidth |
500 Hz |
| Current Loop Bandwidth |
1300 Hz |
| PWM Frequency |
4 kHz |
🌡 Shunt Specifications
| Internal Shunt (Continuous Power) |
200 Watts |
| Internal Shunt (Peak Power) |
22.5 Kilowatts |
| Internal Shunt Resistor |
28.75 Ohms |
🌐 Efficiency and Dissipation
| Efficiency |
97% |
| Power Dissipation |
94-255 Watts |
🔧 New Parameters
| Maximum Output Voltage |
480V AC |
| Control Signal Voltage Range |
5-24V DC |
| Cooling Method |
Air-cooled |
| Peak Current Rating |
150 A |
