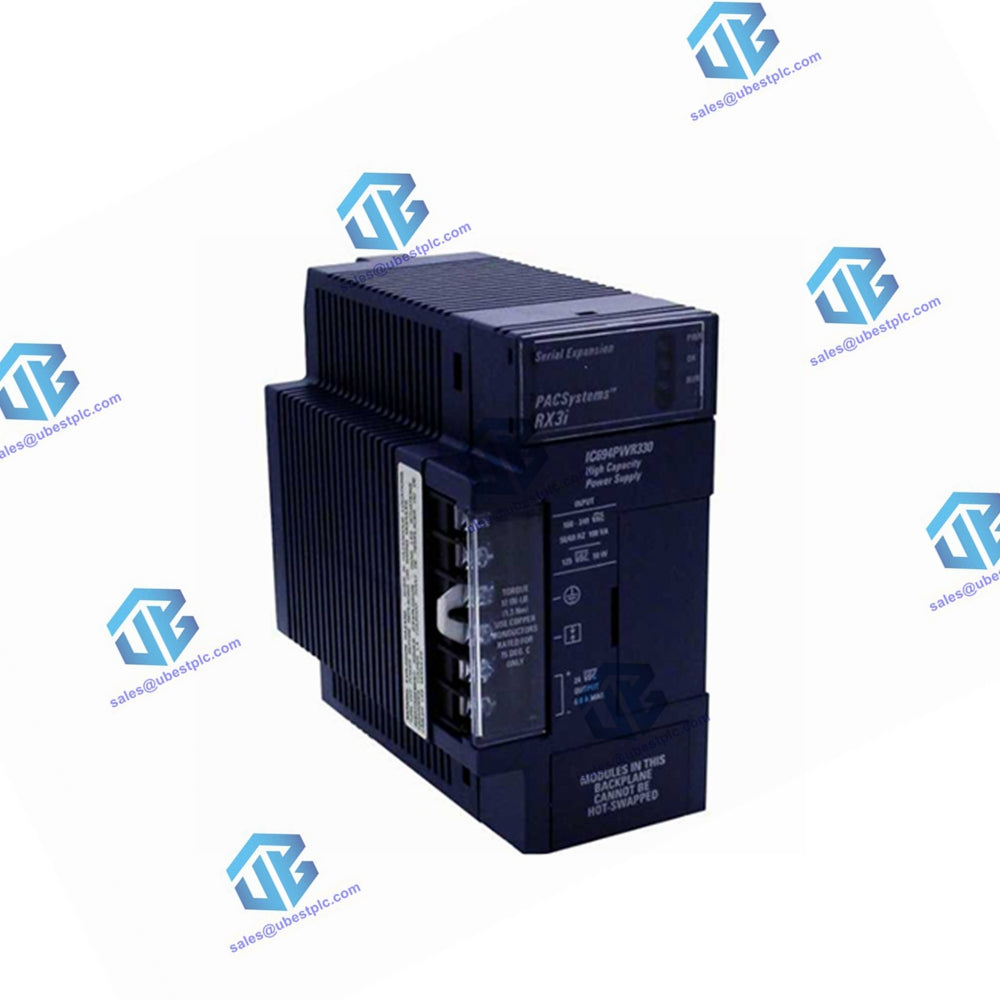

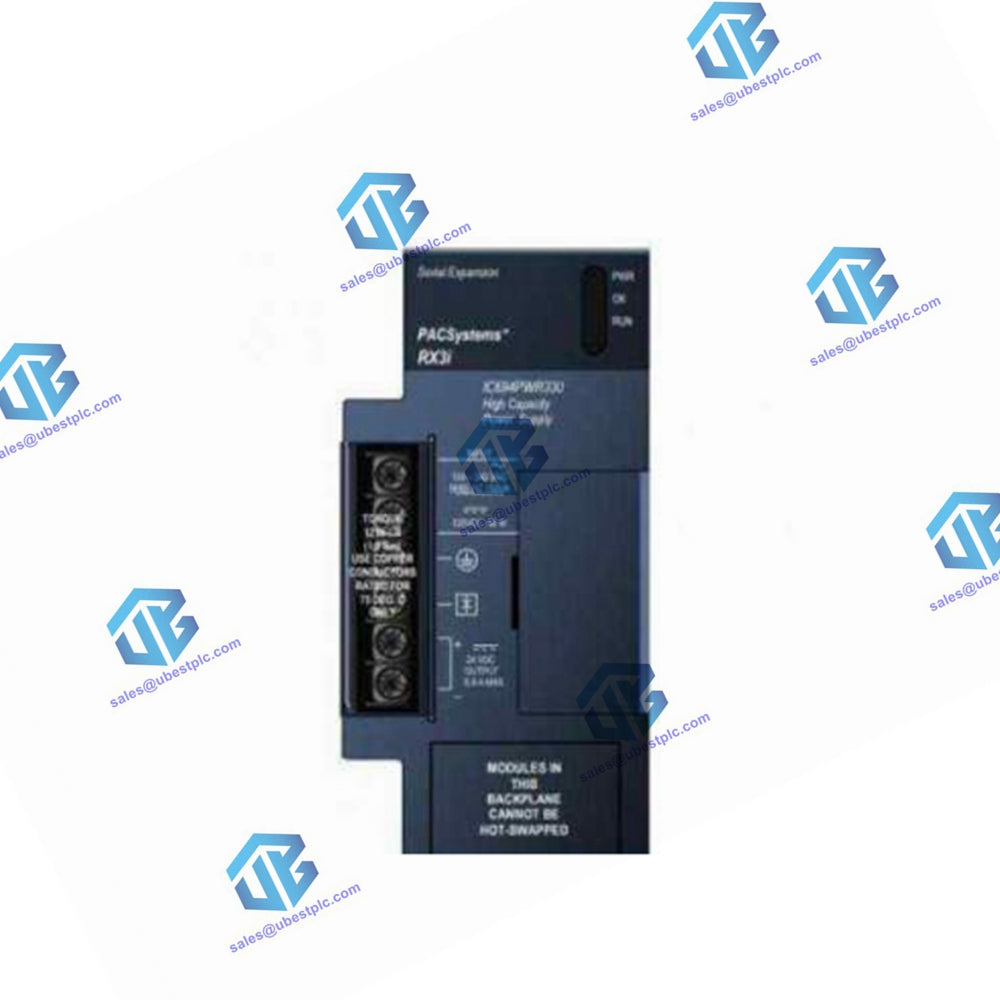

IC694PWR330 GE Fanuc - High Capacity Power Supply

GE Fanuc IC694PWR330 Power Supply Specifications

Brand: GE Fanuc
Origin: USA

Overview:

• Model: IC694PWR330
• Type: High Capacity Power Supply for RX3i PacSystem
• Compatibility: Must be installed in an Expansion backplane within RX3i system; not compatible with battery backup and serial port functions in Expansion Backplanes.

Electrical Specifications:

• Input Voltage Range:
  • AC: 85 to 264 VAC
  • DC: 100 to 300 VDC
• Rated Power:
  • AC Input: 100 VA maximum with full load
  • DC Input: 50 W maximum with full load
• Inrush Current: 4 Amperes peak, 250 ms maximum

Output Specifications:

• 5 VDC Output: 30 Watts maximum (5.0 to 5.2 VDC, nominal 5.1 VDC)
• 24 VDC Relay Output: 15 Watts maximum (24 to 28 VDC)
• 24 VDC Isolated Output: 20 Watts maximum (21.5 to 28 VDC)
• Total Output Power: 30 Watts maximum across all outputs

Protection and Safety Features:

• Isolation: Input to backplane - 1500 VAC for 1 minute
• Overvoltage Protection: 5 VDC output: 6.4 VDC to 7 VDC
• Overcurrent Protection: 5 VDC output electronically limited to 7 Amperes; shuts down on overload with internal restart attempt
• Ride-through Time: Minimum 20 ms (maintains valid outputs if power source is interrupted)
• Fuses: 2 Amps, GE Fanuc part number 44A724627-109 (x2)
• Physical Safety: Power supply’s door must be closed to avoid shock hazard

Installation and Operational Warnings:

• Hot-Swappable: Not supported; modules in backplane cannot be hot-swapped
• Field Wiring Connections:
  • AC: Hot, Neutral, and Ground for 120 VAC; L1, L2, and Ground for 240 VAC
  • DC: Connect + and - wires from the 125 VDC power source (non-polarity sensitive)
• Caution: If the Isolated 24 VDC supply is overloaded or shorted, the PLC will stop operation.

LED Indicators:

• PWR (Power): Green when operating correctly, OFF on fault or power loss
• OK: Steady green if PLC operating correctly, OFF if a problem is detected
• RUN: Green when PLC is in Run mode
