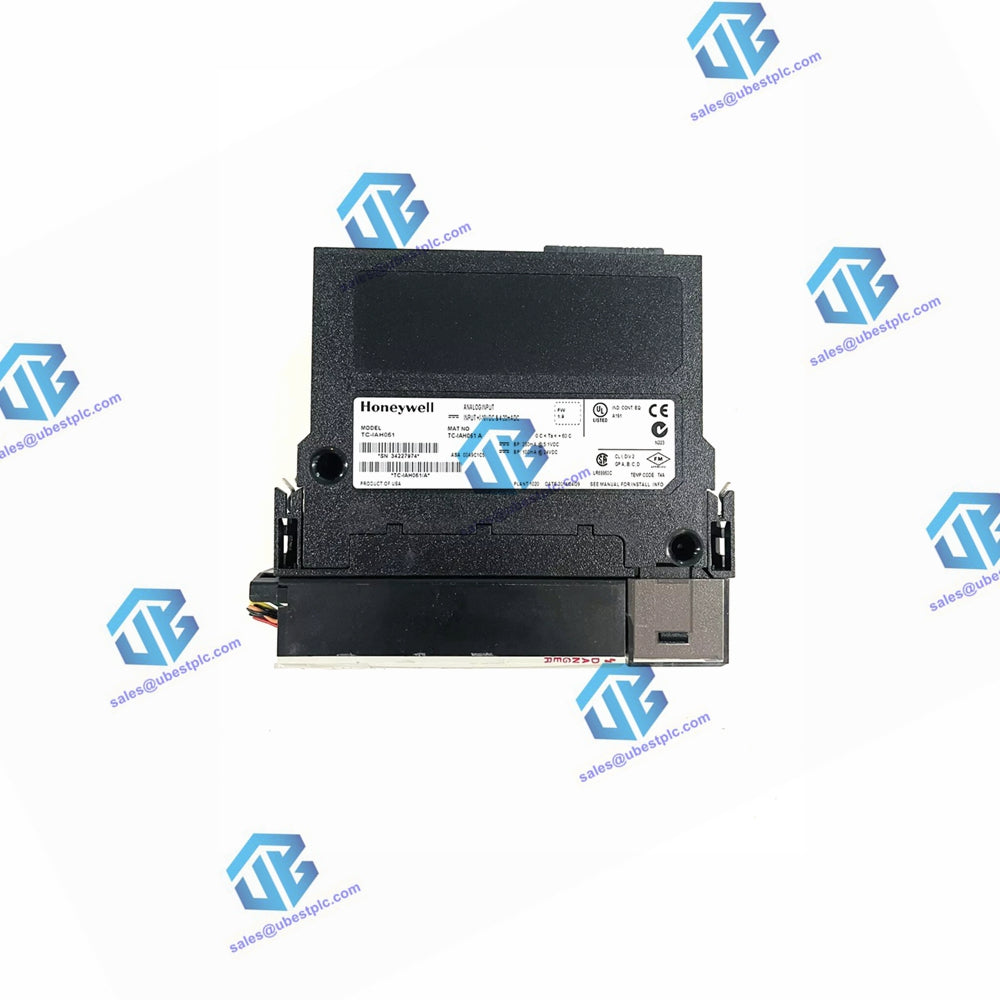

Honeywell TK-IAH061 Analog Input Module 6-Point High Level
Honeywell TK-IAH061 Analog Input Module 6-Point High Level
Technical Specifications:
Specifications – Traditional I/O Modules
TC-IAH061, TK-IAH061
Table 6-6 High Level Analog, 6-Input, Voltage and Current (10 V & 4-20 mA) Module
Parameter Specification
Number of Points 6 galvanically isolated channels
Input Voltage Range (Voltage) 10.50 VDC maximum
Input Current Range (Current) 0 to 21.0 mA (with 249Ω resistor)
Voltage Resolution
-
16 bits across each range shown below
- ±10.5 volt range: 343 μV typical (15 bits + sign)
- 0 to 10.5 volt range: 171 μV typical
- 0 to 5.25 volt range: 86 μV typical
Current Resolution 0.34 μA
Input Impedance
- Voltage: Greater than 10 MΩ
- Current: 249Ω
Open Circuit Detection
- Voltage: Upscale reading
- Current: Zero scale reading
Typical Open Circuit Detection Time
- Voltage: 5 seconds
- Current: 1 second
Normal Mode Noise Rejection Greater than 60 dB @ 60 Hz
Common Mode Rejection
- 120 dB @ 60 Hz
- 100 dB @ 50 Hz
Channel Bandwidth 0 to 15 Hz (-3 dB)
Settling Time to 5% of Full Scale Less than 80 milliseconds
Calibrated Accuracy @ 25°C
- Voltage: Better than 0.1% of range
- Current: Better than 0.15% of range including 0.05% sense resistor
Module Update Rate for All Channels 25 ms
RFI Immunity Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
Overvoltage Capability
- Voltage: 120 VAC/VDC continuous at room temperature
- Current: 8 VAC/VDC with on-board current resistor
Input Offset Drift with Temperature
- Voltage: 2 μV/°C typical
- Current: 8.0 μV/°C typical
Gain Drift with Temperature
- Voltage: 35 ppm/°C typical
- Current: 45 ppm/°C typical
Power Dissipation 4.3 W max
Backplane Current See Module Power Consumption Data, page 46.
Isolation Voltage
- Channel to channel: 100% tested at 2546 VDC for 1 second
- User to system: 100% tested at 2546 VDC for 1 second
Connection Terminal Blocks TC-TBNH, 20-position terminal block
Weight : 0.25 kg
