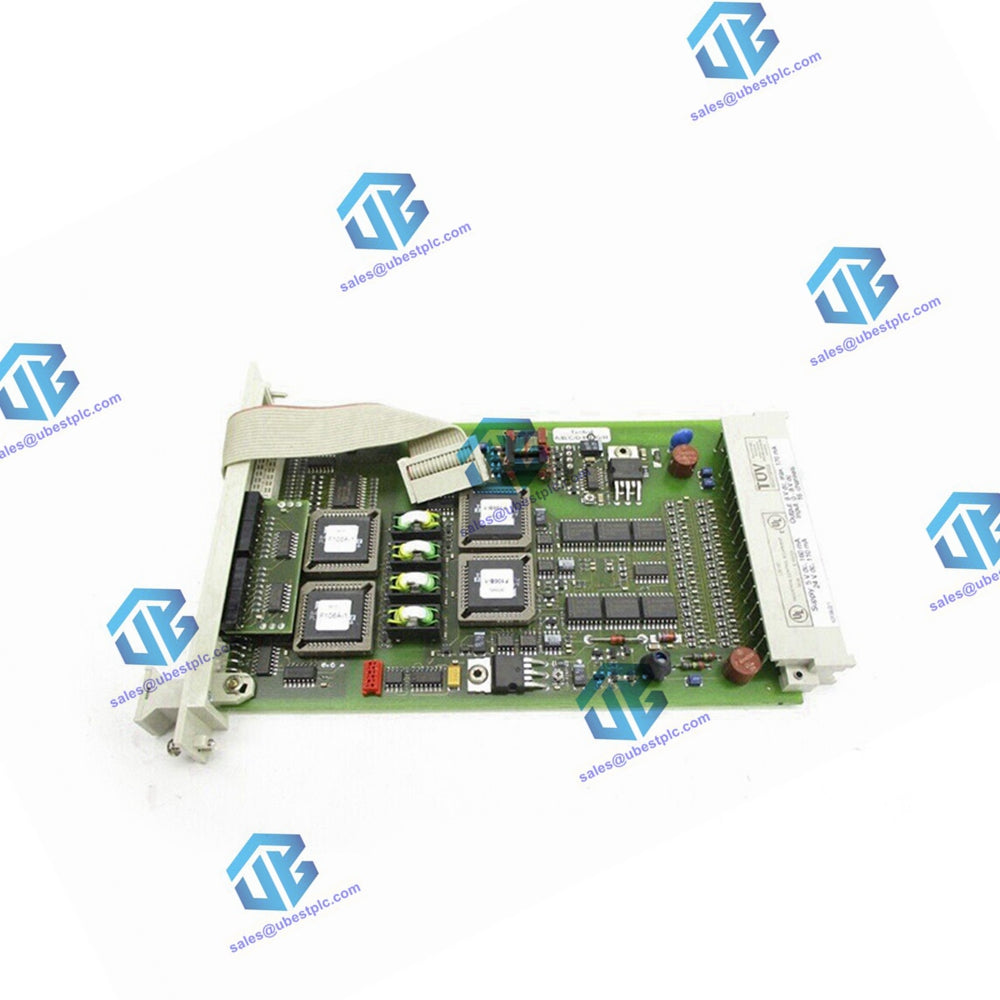

Honeywell 10105/2/1 Fail-Safe Analog Input Module High-Density

Description

The Honeywell 10105/2/1 Fail-safe High-Density Analog Input Module is designed for applications requiring fail-safe operations. This module includes sixteen analog inputs (0-4 V) and an external voltage readback input (0-4 V). The channels are safety-classified as AK5 and feature an isolated analog 0 V common for all sixteen channels.

Analog Input Requirements

The analog inputs require conversion from 0-20 mA to levels usable by the 10105/2/1 module. This conversion can be achieved via:

• The field termination assembly module (FTA-T-14)
• The analog input conversion module (10105/A/1) mounted on a programming connector (Px) on the I/O backplane in a 19-inch rack.

Analog input signals such as thermocouples and PT-100 sensors must be converted to 0(4)-20 mA using a dedicated converter and an FTA-T-14 or 10105/A/1 module.

Self-Test Features

The self-test of the module, managed by the FSC system's central processor unit (CPU), includes checks for:

• Absolute accuracy
• Correct conversion across the full range
• Crosstalk between inputs
• Channel input filters
• Internal supply voltages

Technical Data

General Specifications

• Type Number: 10105/2/1
• Approvals: CE; TÜV, UL approvals pending
• Safety Class: AK1-6 (AK6 in redundant mode)
• Software Versions: ≥ 500
• Space Requirements: 4 TE, 3 HE (= 4 HP, 3U)

Power Requirements

• 5 Vdc: 35 mA
• 24 Vdc: 35 mA

Input Specifications

• Number of Input Channels: 16
• Input Range: 0 to 4.1 V
• Input Resistance: > 1 MOhm
• A/D Converter: 12-bit
• A/D Converter Inaccuracy: ± 1 LSB
• Module Inaccuracy: < 0.25%
• Absolute Max. Input Signal: ± 36 Vdc
• Crosstalk Between Channels: > 60 dB
• External Voltage Readback: 0 to 4.1 V, input resistance typically 1 MOhm
