High-speed Counter Module | IC694APU300 | GE Fanuc

GE Fanuc IC694APU300 High-speed Counter Module Specifications

Brand: GE Fanuc
Origin: USA

Overview:

• Model: IC694APU300
• Type: High-speed Counter Module
• System Compatibility: Usable in any I/O slot in an RX3i system
• Module Features: Provides rapid pulse signal processing up to 80 kHz, with internal diagnostics and a removable terminal board for field wiring.

Technical Specifications:

Functionality:

• Counters: Configurable as 4 simple counters, 2 more complex counters, or 1 complex counter.
• Input Uses: Count signals, direction, disable, edge-sensitive strobe, and preload inputs, depending on selected counter type.
• Output Uses: Can drive indicating lights, solenoids, relays, and other devices.
• Power Source: User or +24 VDC Isolated output from the power supply.
• Threshold Voltage Selection: Selectable between 5VDC or 10 to 30VDC signal levels.

Safety and Handling:

• Warning: Do not connect 10 to 30 VDC to the module inputs when the 5 VDC input range is selected. This could damage the module.

Field Wiring Recommendations:

• Cable Type: Shielded cable must be used for connections.
• Cable Length: Limited to 30 meters to meet IEC 1000-4-4 standards.
• High Frequency Ground: Required within 6 inches (15.24 cm) of the module.

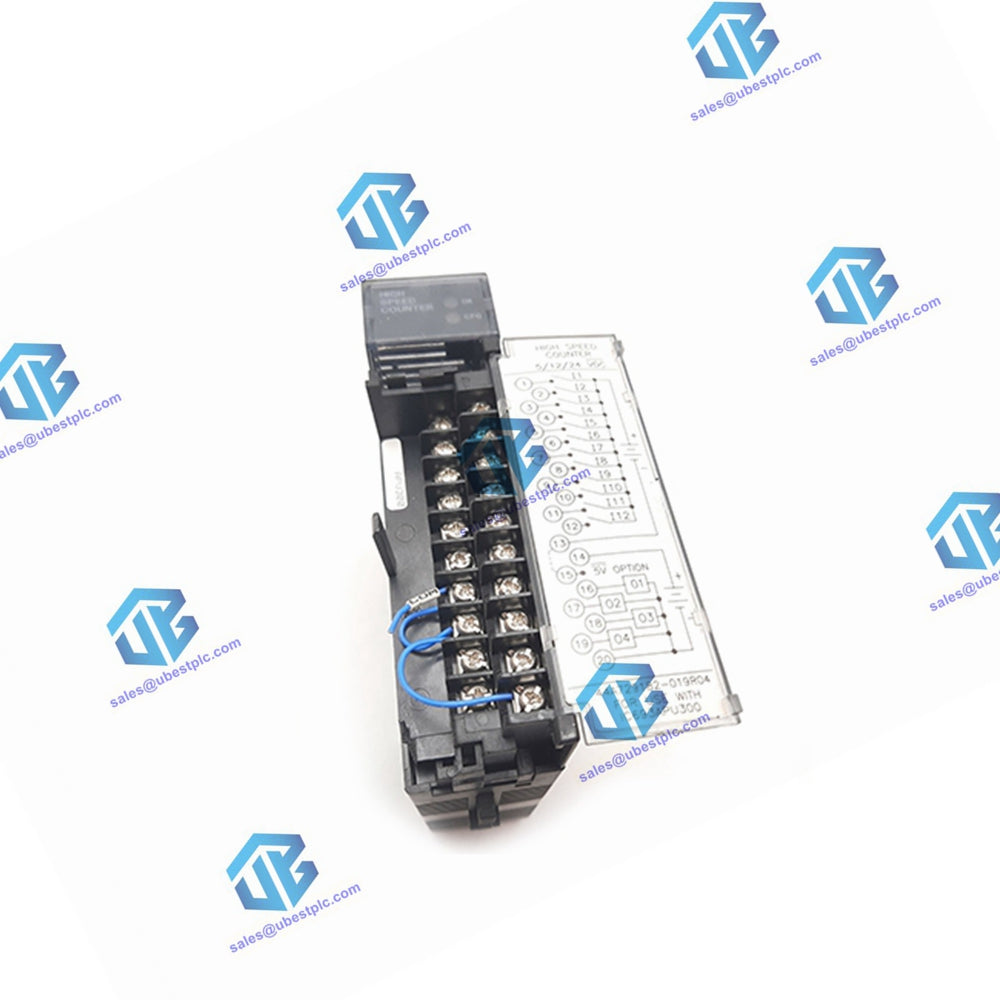

Terminal Assignments and Functions:

• Each terminal serves different functions based on the type of counter configured, supporting various complex operational setups and providing flexibility for diverse industrial applications.
