TSDO-0824 Safe Digital Output FTA (24 V DC, 8 Channels)

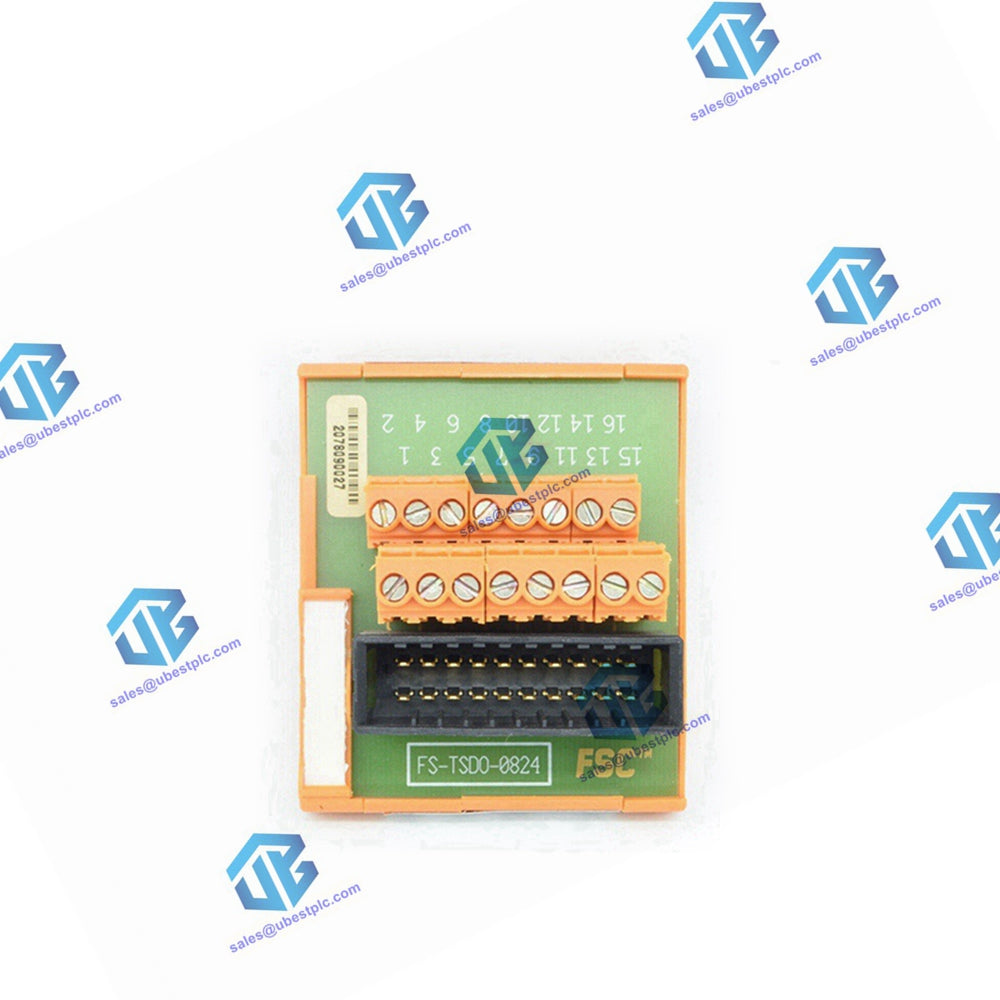

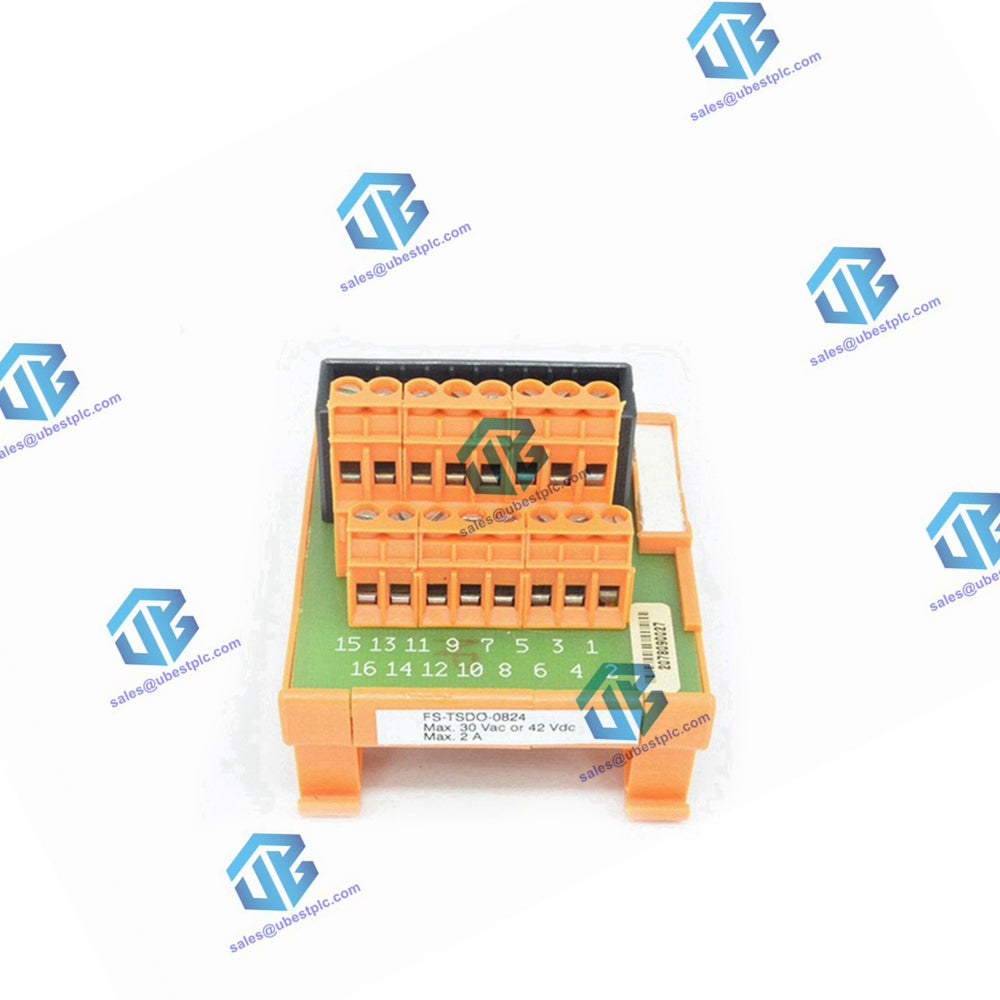

Overview: The TSDO-0824 serves as a field termination assembly (FTA) module, linking the system interconnection cable SICC-0001/Lx with external field wiring via screw terminals. It facilitates the connection of up to eight channels from redundant pairs of SDO-0824 modules through the system interconnection cable.

Key Features:

• Interface: Connects the system interconnection cable (SICC-0001/Lx) to external field wiring.
• Channel Support: Supports eight channels from redundant pairs of SDO-0824 modules.

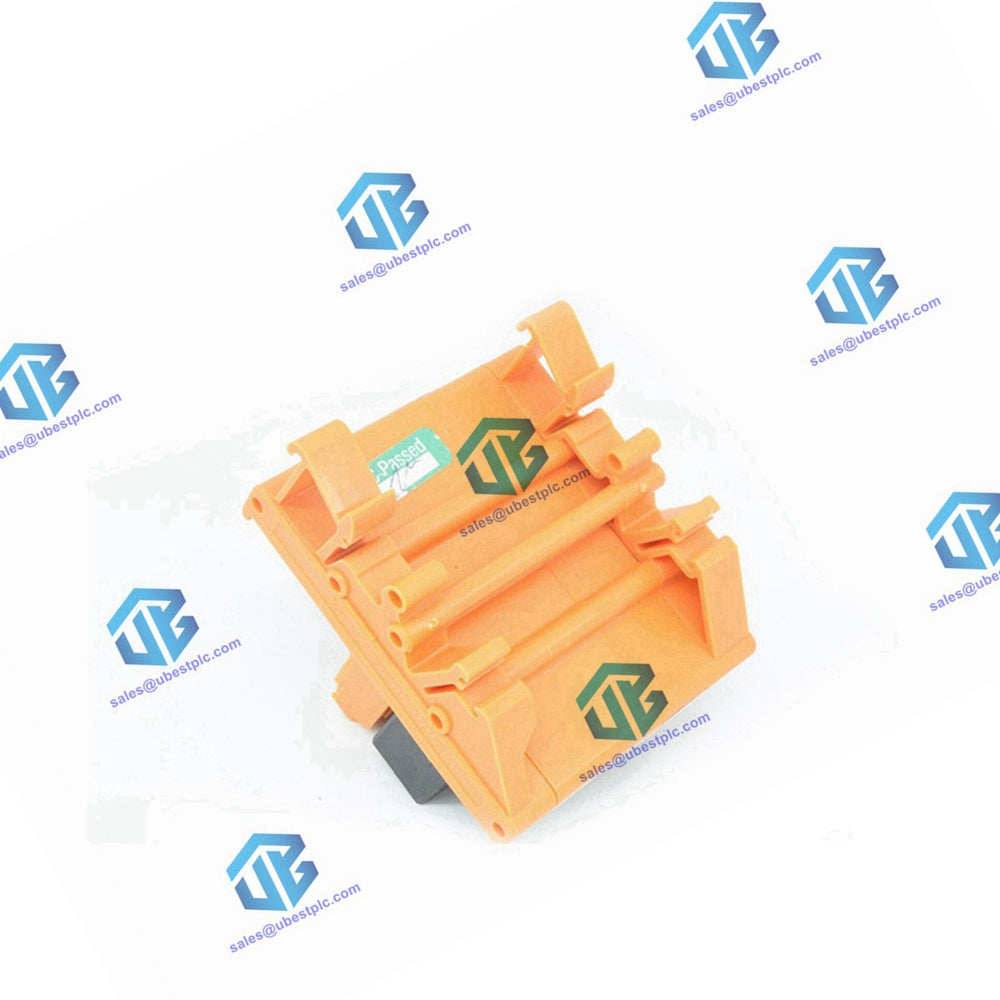

• Mounting: Features a universal snap-in provision for standard DIN EN rails, ensuring easy and secure installation.

Technical Specifications:

General:

• Type Numbers: FS-TSDO-0824, FC-TSDO-0824
• Approvals: CE, TUV, UL, CSA, FM

Power:

• Number of Channels: 8
• Maximum Voltage: 36 V DC (IEC 1010 - 1990)
• Overvoltage Category: 3 (Table D.12)
• Maximum Continuous Current per Channel: 1.5 A

Physical Dimensions:

• Module Dimensions: 60 × 70 × 58 mm (L × W × H), 2.36 × 2.76 × 2.28 in
• DIN EN Rails: TS32 / TS35 × 7.5
• Used Rail Length: 61 mm (2.40 in)

Termination:

• Screw Terminals
• Max. Wire Diameter: 2.5 mm² (AWG 14)
• Strip Length: 7 mm (0.28 in)
• Tightening Torque: 0.5 Nm (0.37 ft-lb)

Weight:

• Module Weight: 0.2 kg
