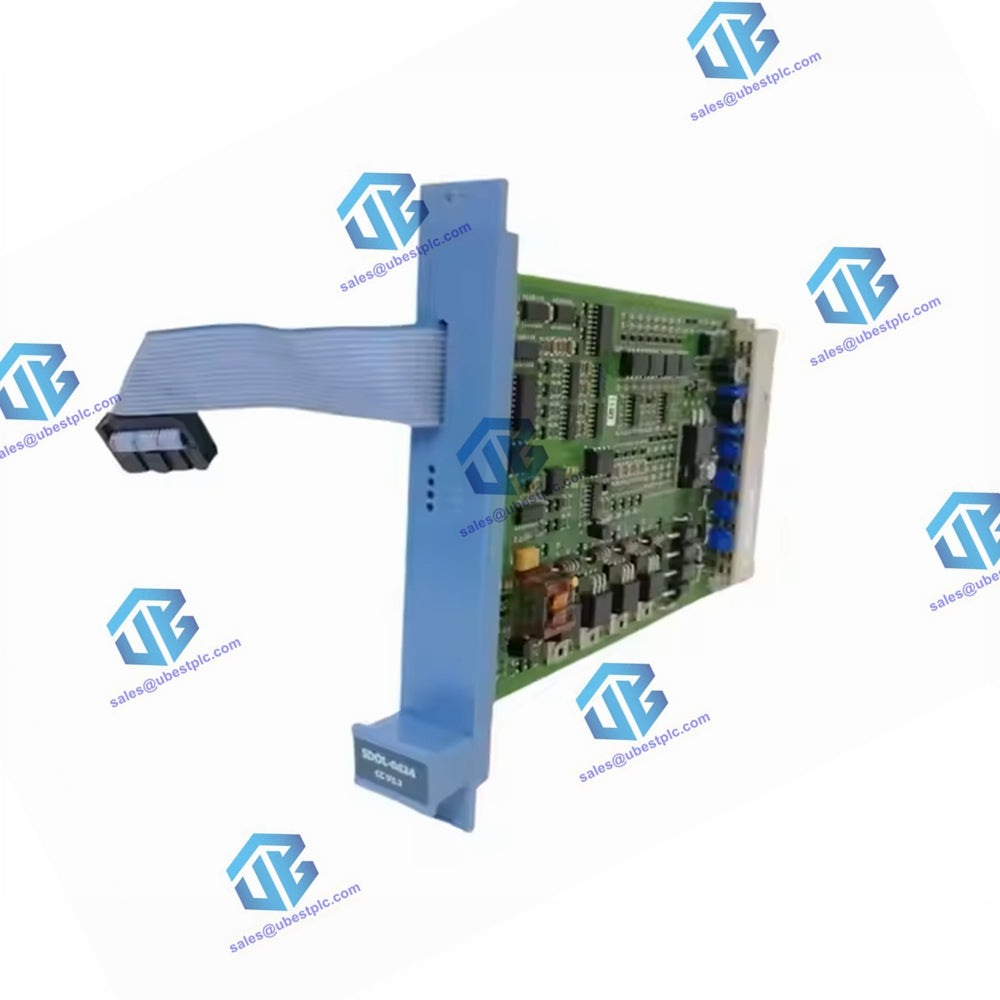

FS-SDOL-0424 Honeywell Digital Output Module

FC-SDOL-0424 Safe Loop-Monitored Digital Output Module

Overview: The FC-SDOL-0424 is a safe loop-monitored digital output module designed with four 24 V DC, 1 A loop-monitored output channels. This module is capable of driving loads up to 24 W, making it ideal for various industrial applications.

Features:

• Output Channels: Four 24 V DC output channels suitable for driving resistive or inductive loads.
• Suppression Diodes: Each output includes a suppression diode for inductive loads, ensuring safe operation.
• Loop Monitoring: Features loop monitoring for added safety, including lead breakage detection and short-circuit detection.
• LED Indicators: Each channel is equipped with an LED indicator for status monitoring, providing visual feedback during testing and operation.
• Fully Tested: Outputs, including suppression diodes and monitoring functions, are fully tested and suitable for safe applications.

LED Indicator Functionality:

• Off Channel: LED gives short intermittent flashes indicating lead breakage tests.
• On Channel (Non-Redundant Configuration): LED gives very short periodic flashes during internal switch-off self-tests.
• On Channel (Redundant Configuration): LED appears to flash intermittently due to self-test synchronization between Control Processors.

Technical Specifications:

General:

• Type Numbers: FS-SDOL-0424, FC-SDOL-0424
• Compliance: CE, TUV, UL, CSA, FM

Space Requirements:

• Dimensions: 4 TE, 3 HE (= 4 HP, 3U)

Power:

• Supply Voltage: 5 V DC, 24 V DC (internal and external)
• Power Requirements:
  • 5V DC: 15 mA
  • 24V DC Internal: 50 mA
  • 24V DC External: 15 mA (without output load)

Output:

• Number of Channels: 4
• Output Specification: 24 V DC solid-state source, short-circuit proof
• Maximum Channel Current: 1 A
• Maximum Total Module Load: 3.6 A (module dissipation limit)
• Maximum Load Inductance: 0.5 H
• Maximum Load Capacitance: 1 μF
• Voltage Drop: < 1.3 V at 1 A
• Off Current: < 0.1 mA
• Current Sense Voltage Drop: < 1 V at 1 A
• WDG Input Current: 4 mA

Weight:

• Module Weight: 0.2 kg
