FC-IOCHAS-0001R Honeywell Chassis

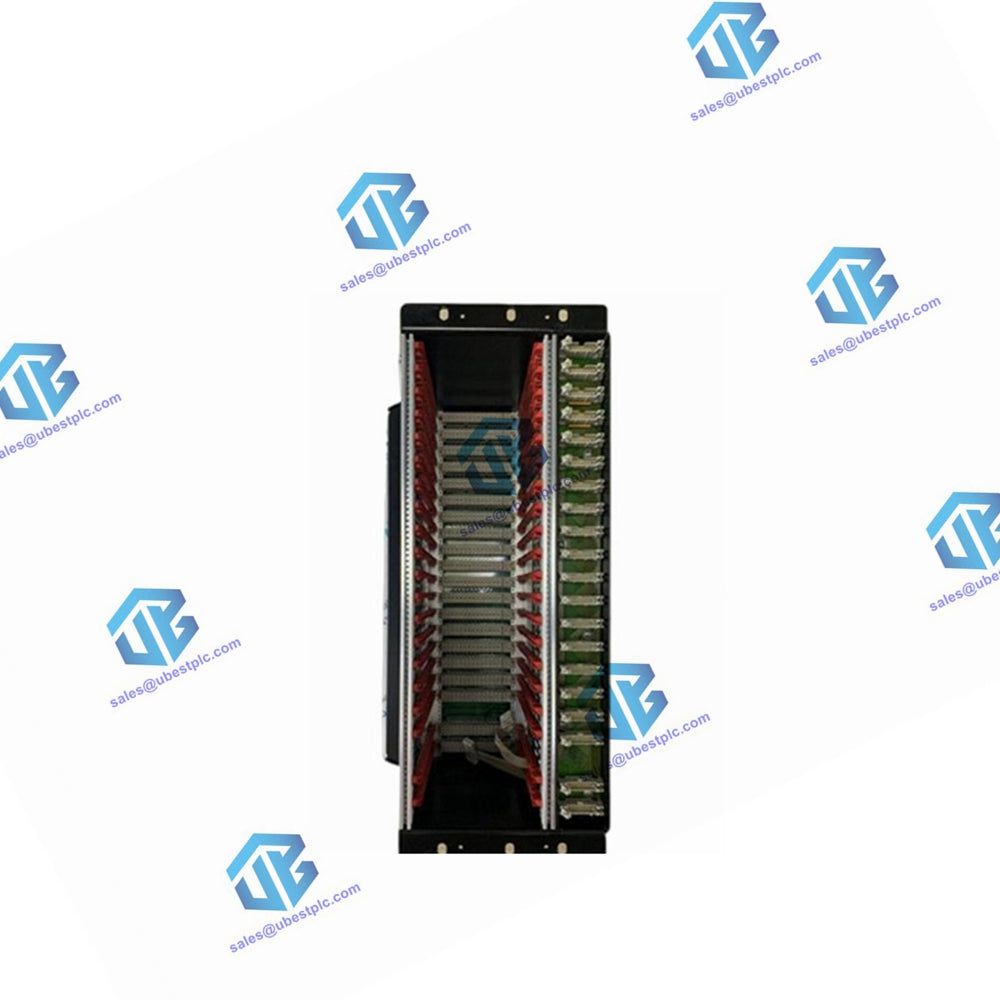

IOCHAS-0001R Chassis Overview

The IOCHAS-0001R chassis is designed for housing up to 9 pairs of redundant IO modules, providing a robust solution for safety-critical applications within a Safety Manager system.

Components:

• IO Housing: A 19-inch mechanical case with cover plates, accommodating up to 18 IO modules configured in pairs.
• IO-0001 Modules: Located in slots 20 and 21, these modules are essential for the proper functioning of the redundant IO system.
• Blind Front: Covers slot 19, which is not used for IO modules.

Configuration:

• The chassis has 21 slots (each 4TE wide), numbered from 1 to 21.
• Slots 1 to 18 are available for IO modules, configured in pairs.
• The IO modules in odd-numbered slots and the IO-0001 module in slot 20 are controlled by Control Processor 1.
• The IO modules in even-numbered slots and the IO-0001 module in slot 21 are controlled by Control Processor 2.
• Slot 19 is not used.

Technical Specifications:

General:

• Type Numbers: FS-IOCHAS-0001R, FC-IOCHAS-0001R
• Approvals: CE, UL, CSA, TUV, FM

Power Consumption:

• 5V-1: 35 mA (IO-0001 slot 20)
• 5V-2: 35 mA (IO-0001 slot 21)

Dimensions:

• Height:
  • 1 + 3 + 1 HE for the first IO chassis
  • 4 HE for each subsequent IO chassis
  • 44.5 + 133.4 + 44.5 mm (1.75 + 5.25 + 1.75 in)
• Width: 482.6 mm (19 in)
• Depth: 280 mm (11 in)

Weight:

• Weight: 8.5 kg (18.7 lbs)
