Technical Specifications:
Product No.:

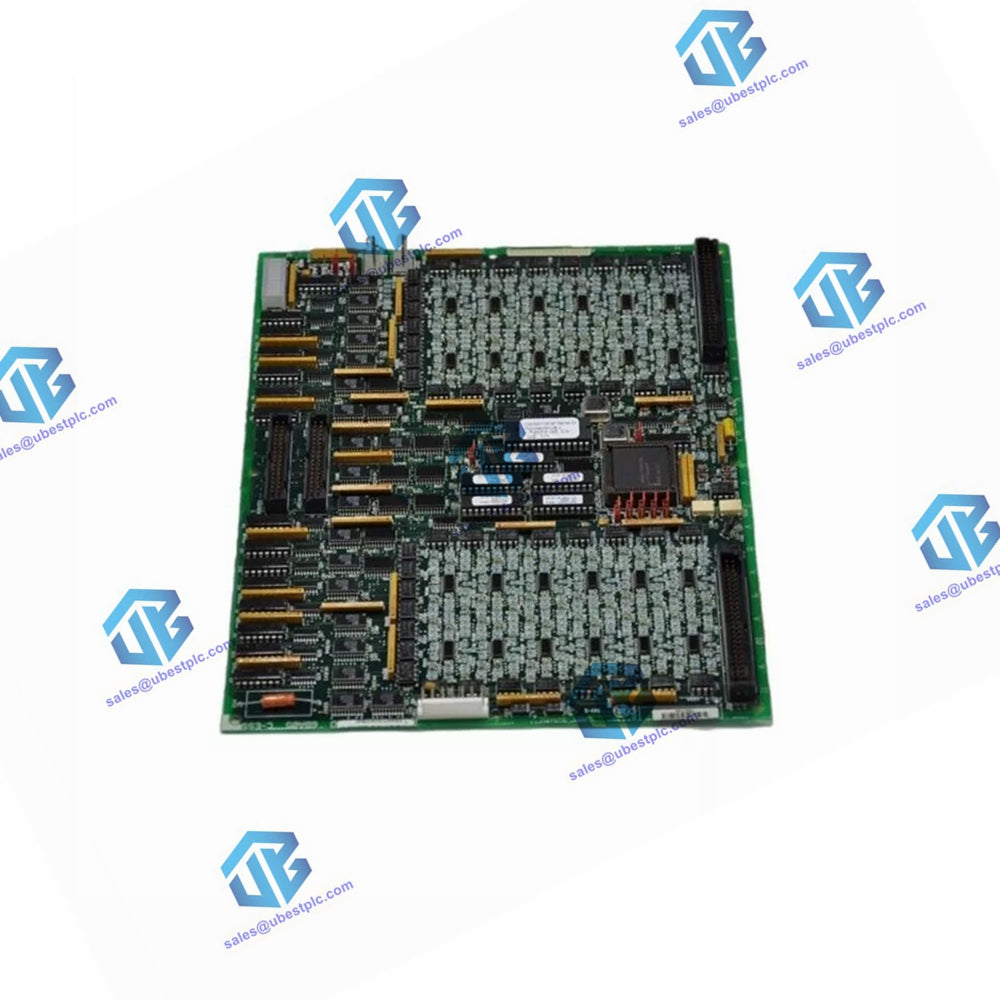

DS200TCDAH1BG
Product Type:
Digital I/O Board
Technical Specifications
| Manufacturer: |
GE General Electric |
| Series: |
Mark V |
| Part Number: |
DS200TCDAH1B |
| Functional Description: |
Digital I/O Board |
| Functional Acronym: |
TCDA |
| PCB Coating: |
Conformal Coating |
| LED Indicators: |
10 block LEDs for status indication
1 side-visible LED |
| Connectors: |
- 50-pin Connectors: 2 connectors (IDs: JQ and JR) for signal transmission
- 3-pin Connectors: 2 connectors (IDs: JX1 and JX2) for additional functionalities
|
| Jumpers: |
- 8 jumpers (IDs: JP1 to JP8) for configuration and application selection
- Specific jumpers for factory testing (J1, J8), IONET termination (J2, J3), IONET ID selection (J4, J5, J6), and stall timer enable (J7)
|
| Signal Transmission: |
Utilizes 50-pin ribbon cables to connect with other boards in the Mark V Series |
