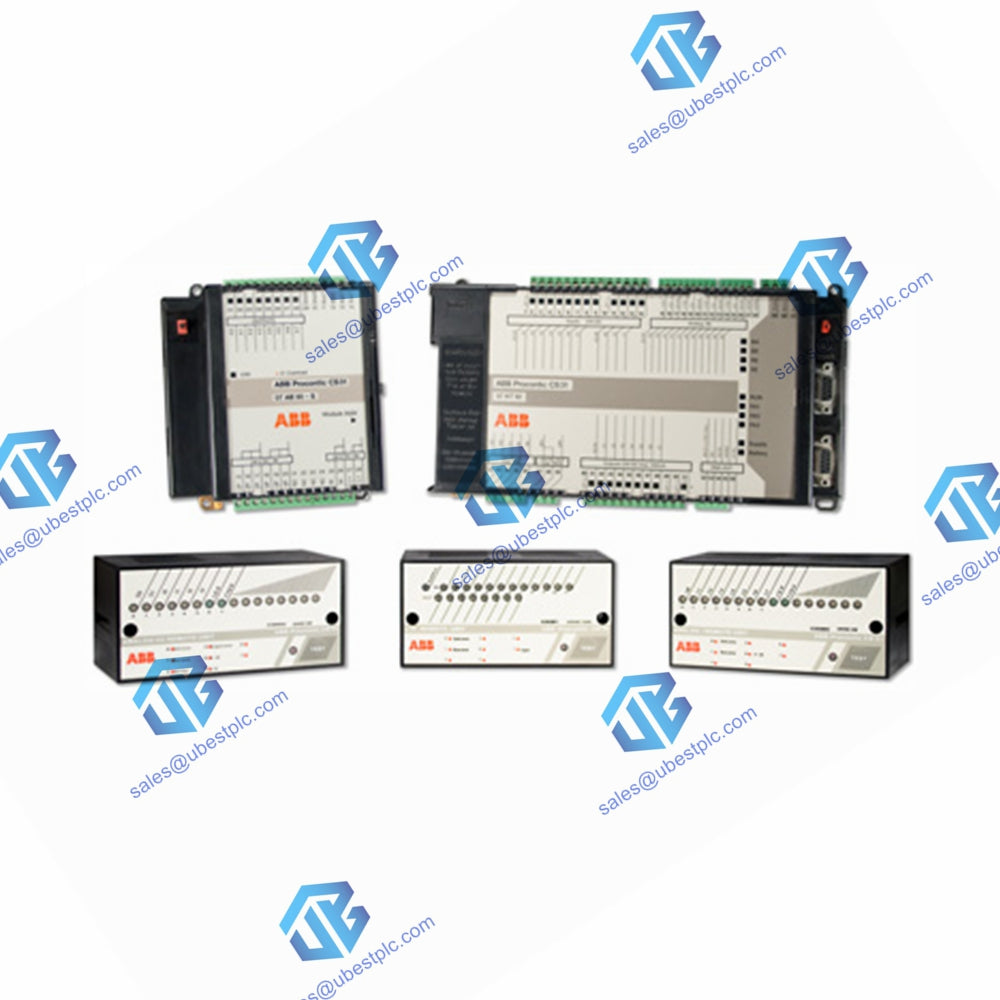

ABB 07KP53 1SBP260162R1001 Intelligent Coupler

Overview

The 07 KP 53 Intelligent Coupler (Part No. 1SBP260162R1001) is an interface module designed to connect external devices to the Advant Controller 31, part of the Advant Controller 40 and 50 series, using the MODBUS RTU protocol. It supports both RS232 and RS485 interfaces and can be configured as a slave or master device.

This coupler facilitates communication in industrial environments by offering high-speed data transfer with a maximum baud rate of up to 115,200 bps. Additionally, the unit supports a range of up to 1,200 meters on the RS485 interface and has a built-in ability to handle up to 128 slaves in an RS485 configuration, or 255 slaves when using repeaters.

Technical Specifications

• Brand: ABB
• Model: 07 KP 53 Intelligent Coupler
• Part Number: 1SBP260162R1001
• Protocol: MODICON MODBUS RTU (Master/Slave)
• Connection Type:
  • RS232: Full-duplex
  • RS485: Half-duplex
• Maximum Connections:
  • 1 Master and 1 Slave (RS232)
  • Up to 128 Slaves (RS485)
  • Up to 255 Slaves (with Repeaters)
• Transmission Speed:
  • Up to 115,200 bps
  • RS485 maximum length: 600 meters at 115,200 bps, 1,200 meters at 19,200 bps
• Communication Control: CRC 16
• Diagnostic: LED indicators for communication status
• Bus Configuration: Configured via dip switches on the left side of the module
• Mounting:
  • DIN rail (35mm)
  • Screw fittings (4mm diameter screws, M4)
• Protection Index: IP20
• Standards Compliance:
  • UL V2
  • IEC 60068-2-6 test Fc (vibration)
  • IEC 60068-2-27 test Ea (shock)
• Weight: 220 g
• Power Supply: Provided by the central unit
• Ambient Conditions:
  • Operation Temperature: 0°C to +55°C (horizontal), 0°C to +40°C (vertical)
  • Storage Temperature: -40°C to +75°C
  • Humidity: Up to 75% (annual average), up to 95% (occasional)
  • Atmospheric Pressure:
    • Operational: ≥ 80 hPA (up to 2,000 m)
    • Storage: ≥ 600 hPA (up to 3,500 m)

FAQ

1. What is the maximum number of slaves supported by the 07 KP 53?
   The device supports up to 128 slaves with the RS485 interface, or 255 slaves when repeaters are used.

2. What is the communication speed supported by this coupler?
   The 07 KP 53 supports speeds of up to 115,200 bps.

3. How is the communication configured?
   Configuration is achieved through dip switches on the module.

4. What are the mounting options for this coupler?
   The coupler can be mounted on a 35mm DIN rail using M4 screws.
