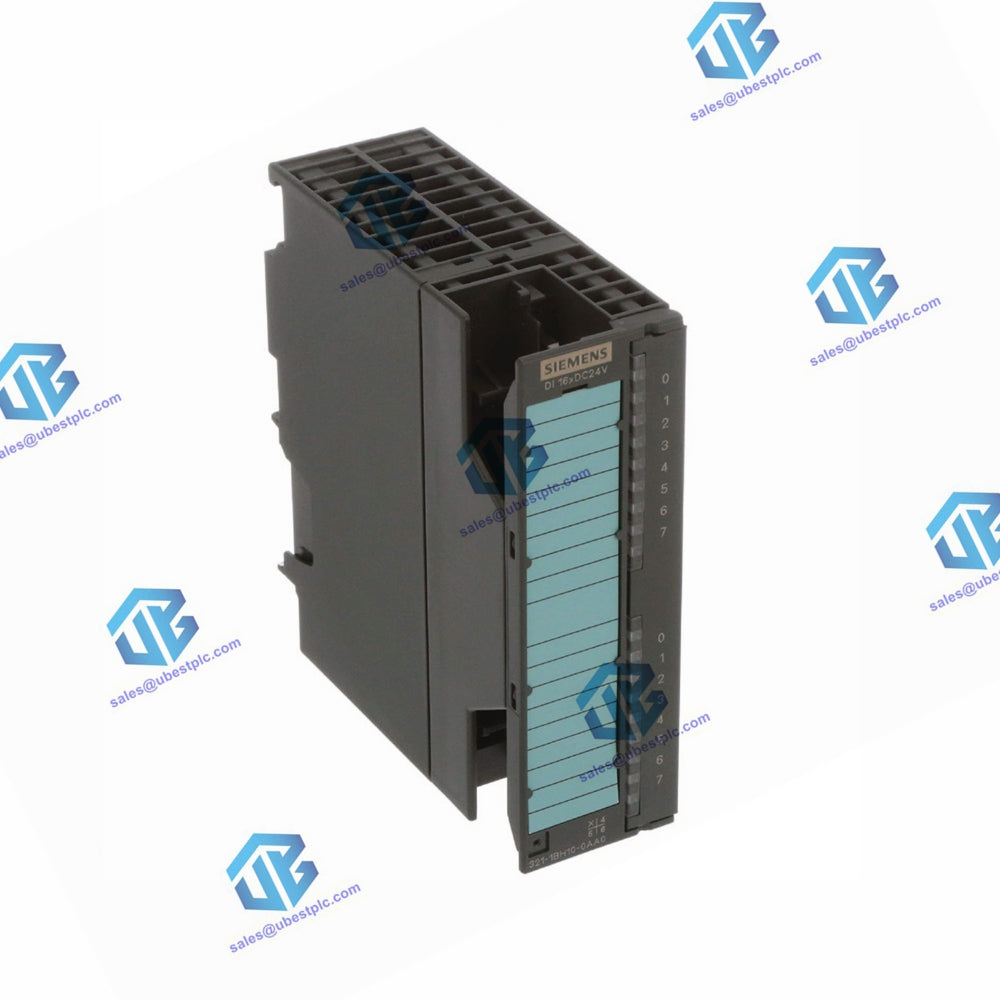

6ES7331-7NF00-0AB0 Siemens Simatic S7-300 Analog Input Module
6ES7331-7NF00-0AB0 Siemens Simatic S7-300 Analog Input Module
Technical Specifications:
Manufacturer:
Siemens
Product No.:
6ES7331-7NF00-0AB0
Condition:
In Stock
Product Type:
Analog Input Module
Product Origin:
USA
Weight:
272g
Shipping port:
Xiamen
Warranty:
12 months
Input Current
From backplane bus: 5 V DC, max. 130 mA
Power Losses
Power loss, typ.: 0.6 W
Analog Inputs
Number of analog inputs: 8
Permissible input voltage for voltage input (destruction limit), max.: 50 V; Permanent
Permissible input current for current input (destruction limit), max.: 32 mA
Input Ranges
Voltage: Yes
Current: Yes
Thermocouple: No
Resistance thermometer: No
Resistance: No
Input Ranges (Rated Values), Voltages
1 V to 5 V: Yes, Input resistance 2 MΩ
-10 V to +10 V: Yes, Input resistance 2 MΩ
-5 V to +5 V: Yes, Input resistance 2 MΩ
Input Ranges (Rated Values), Currents
0 to 20 mA: Yes, Input resistance 250 Ω
-20 mA to +20 mA: Yes, Input resistance 250 Ω
4 mA to 20 mA: Yes, Input resistance 250 Ω
Input Ranges (Rated Values), Thermoelements
Type B: No
Type E: No
Type J: No
Input Ranges (Rated Values), Resistance Thermometer
Cu 10: No
Ni 100: No
Ni 1000: No
Input Ranges (Rated Values), Resistors
0 to 150 ohms: No
0 to 300 ohms: No
0 to 600 ohms: No
0 to 6000 ohms: No
Cable Length
Shielded, max.: 200 m
Analog Value Creation
Measurement principle: Integrating
Resolution with overrange (bit including sign), max.: 16 bit; Unipolar: 15/15/15/15 bits; bipolar: 15 bits + sign/15 bits + sign/15 bits + sign/15 bits + sign
Integration time, parameterizable: Yes; 10/ 16.67/ 20/ 100 ms
Interference voltage suppression for interference frequency f1 in Hz: 10 / 50 / 60 / 400 Hz
Encoder
Connection of signal encoders for current measurement as 2-wire transducer: Yes; with external transmitter; possible with separate supply for transmitter
Connection of signal encoders for current measurement as 4-wire transducer: Yes
Errors/Accuracies
Operational limit in overall temperature range: Voltage, relative to input area, (+/-) 0.1 %; At Ucm = 0 V or ±0.7 % at Ucm = 50 V
Current, relative to input area, (+/-) 0.3 %; At Ucm = 0 V or ±0.9 % at Ucm = 50 V
Basic error limit (operational limit at 25 °C): Voltage, relative to input area, (+/-) 0.05 %
Current, relative to input area, (+/-) 0.05 %
Isochronous Mode
Isochronous operation (application synchronized up to terminal): No
Interrupts/Diagnostics/Status Information
Alarms: Diagnostic alarm: Yes; Parameterizable
Limit value alarm: Yes; Parameterizable, channels 0 and 2
Diagnostic messages: Diagnostic functions: Yes; Parameterizable
Diagnostic information readable: Yes
Diagnostics: Yes
Diagnostics indication LED: Group error SF (red): Yes
Potential Separation
Galvanic isolation analog inputs: Between the channels: No
Between the channels, in groups of: 2
Between the channels and the backplane bus: Yes
Isolation checked with: 500 V DC
Connection Method
Required front connector: 40-pin
Dimensions
Width: 40 mm
Height: 125 mm
Depth: 117 mm
Weights
Weight, approx.: 272 g
