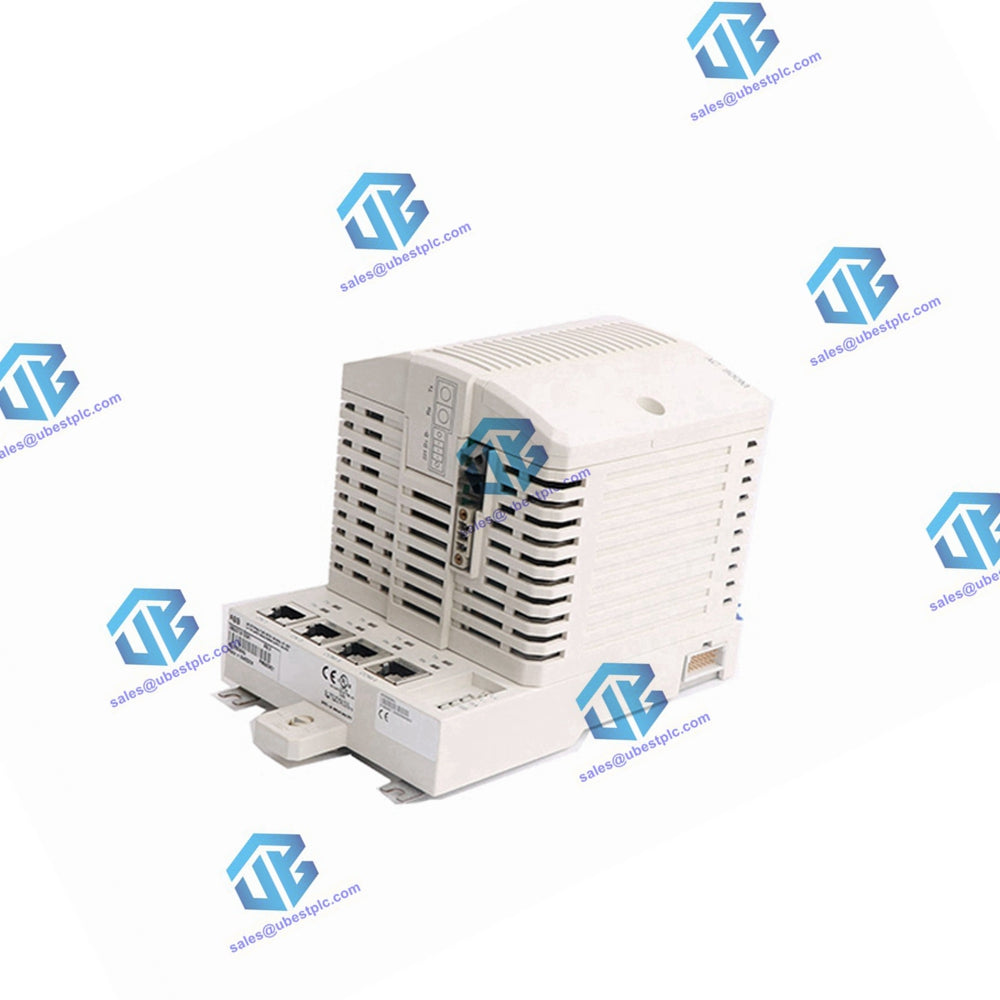

3BSE081638R1 Processor Unit | PM867K02 ABB

PM867K02 Controller Specifications

Article Number: 3BSE081638R1
Redundancy: Yes
High Integrity: Yes
Clock Frequency: 133 MHz
Performance: 0.09 ms for 1000 boolean operations
Memory:

• Total: 64 MB
• Available for Applications: 46.559 MB
  Flash Memory for Storage: Not available

Processor & Performance

• Processor Type: MPC866
• Switch Over Time (Redundant Configuration): Max 10 ms
• Cycle Time per Application: Down to 1 ms
• Flash PROM for Firmware Storage: 18 MB

Application & Program Capabilities

• Applications per Controller: 32
• Programs per Application: 64
• Diagrams per Application: 128
• Tasks per Controller: 32
• Number of Different Cycle Times: 32

Power & Energy

• Power Supply: 24 V DC (19.2-30 V DC)
• Power Consumption: 210 mA (typical), 360 mA (max)
• Power Dissipation: 5.1 W (typical), 8.6 W (max)
• Redundant Power Supply Status Input: Yes
• Built-in Back-up Battery: Lithium, 3.6 V

Connectivity & Interfaces

• Ethernet Channels: 2
• Ethernet Interface: Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
• Control Network Protocol: MMS and IAC
• Recommended Network Backbone: 100 Mbit/s switched Ethernet
• Clock Synchronization: 1 ms between AC 800M controllers by CNCP protocol

Environmental & Certification

• Operating Temperature: +5 to +55 °C (+41 to +131 °F)
• Storage Temperature: -40 to +70 °C (-40 to +158 °F)
• Temperature Changes: 3 °C/min (IEC/EN 61131-2)
• Pollution Degree: Degree 2 (IEC/EN 61131-2)
• Corrosion Protection: G3 compliant (ISA 71.04)
• Relative Humidity: 5 to 95 %, non-condensing
• Emitted Noise: < 55 dB (A)
• Vibration:
  • 10 < f < 50 Hz: 0.0375 mm amplitude
  • 50 < f < 150 Hz: 0.5 g acceleration
  • 5 < f < 500 Hz: 0.2 g acceleration
• Rated Isolation Voltage: 500 V a.c.
• Dielectric Test Voltage: 50 V
• Protection Class: IP20 (EN 60529, IEC 529)
• Altitude: 2000 m (6,562 ft) (IEC/EN 61131-2)
• Emission & Immunity: EN 61000-6-4, EN 61000-6-2
• Environmental Conditions: Industrial
• CE Mark: Yes
• Electrical Safety: EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
• Hazardous Location: UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
• ISA Secure Certified: Yes
• Marine Certificates: ABS, BV, DNV-GL (LR, Lloyd Pending)
• TUV Approval: Yes
• RoHS Compliance: EN 50581:2012
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 119 mm (4.7 in.)
• Height: 186 mm (7.3 in.)
• Depth: 135 mm (5.3 in.)
• Weight (including base):
  • K01: 1200 g (2.6 lbs)
  • K02: 2700 g (5.95 lbs)

I/O and Module Bus

• Communication Modules on CEX Bus: 12
• Supply Current on CEX Bus: Max 2.4 A
• I/O Clusters on Modulebus:
  • Non-Redundant CPU: 1 electrical, 7 optical
  • Redundant CPU: 0 electrical, 7 optical
• I/O Capacity on Modulebus: Max 96 (single PM867) or 84 (redundant PM867) I/O modules
• Modulebus Scan Rate: 0 - 100 ms (depending on number of I/O modules)
• Supply Current on Electrical Modulebus:
  • 24 V: Max 1.0 A
  • 5 V: Max 1.5 A
