• 1771-OAN | Allen-Bradley Digital Output Module
1 1

🚀 Genuine products, vast inventory, swift shipping!

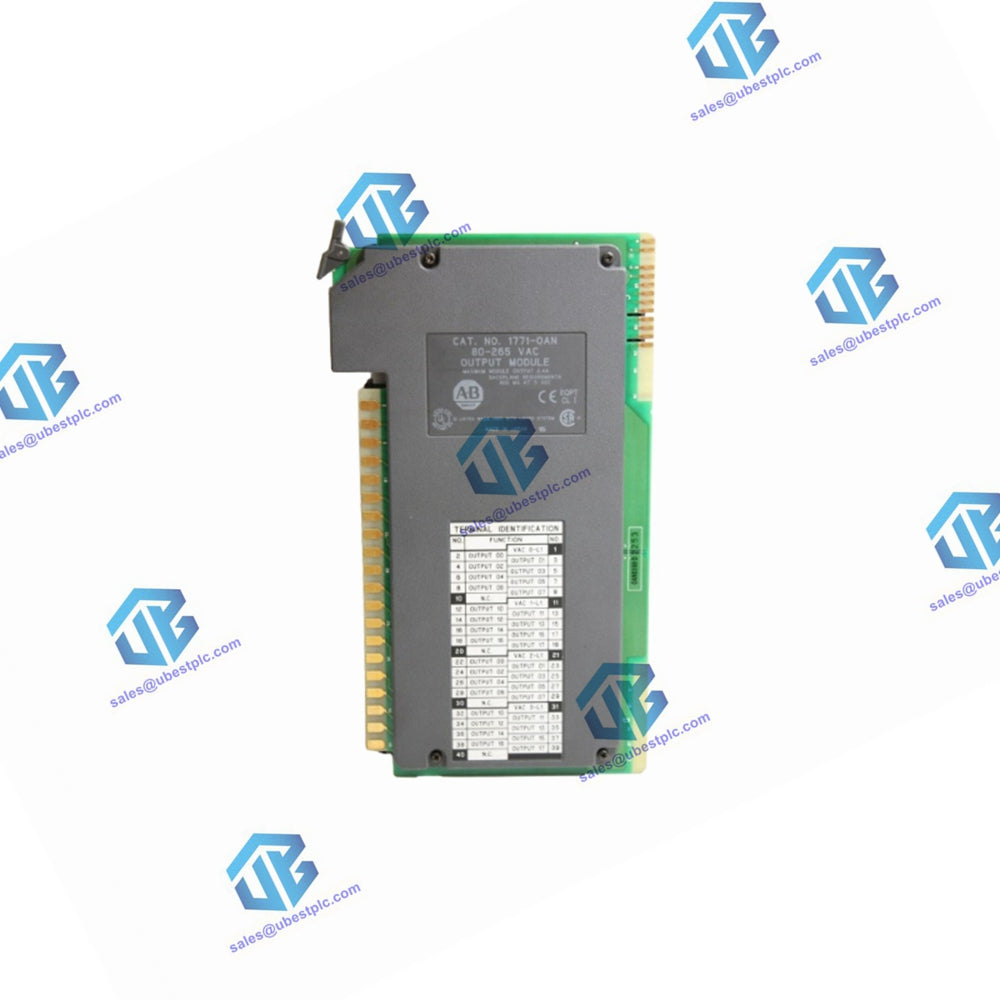

1771-OAN | Allen-Bradley Digital Output Module

1771-OAN | Allen-Bradley Digital Output Module

Technical Specifications:

Manufacturer:
Allen-Bradley
Product No.:
1771-OAN
Condition:
In Stock
Product Type:
Digital Output Module
Product Origin:
USA
Weight:
1300g
Shipping port:
Xiamen
Warranty:
12 months

AC Output Module - 1771-OAN

Specifications (Cat. No. 1771-OAN)

Outputs per Module 32 (4 groups of 8)
Module Location 1771-A1B thru -A4B or later I/O Chassis, 1771-AM1, -AM2 I/O Chassis
Voltage Range 80 to 265V AC, 47-63Hz
Nominal Voltage 120V AC
Maximum Output Current Per Point: 1.0A at 30°C; Derate linearly to 0.3A at 60°C
Per Group: 2.0A at 30°C; Derate linearly to 0.6A at 60°C
Per Module: 8.0A at 30°C; Derate linearly to 2.4A at 60°C
Maximum Surge Current 10A for 25ms at 1Hz and 30°C, 10A for 25ms at 0.5Hz and 60°C
Minimum Load Current 10mA per output
Maximum On-state Voltage Drop 1.5V AC (ms) @ 1A
Maximum Off-state Leakage Current 2.3mA per output @ 230V AC, 60Hz, 1.2mA per output @ 120V AC, 60Hz
Output Signal Delay Off to On: 1.0ms maximum
On to Off: 9.3ms @ 60Hz (maximum), 11.0ms @ 50Hz (maximum)
Power Dissipation 16.2W (max); 1.0W (min)
Thermal Dissipation 55.4 BTU/hr (max); 3.4 BTU/hr (min)
Isolation Voltage Isolation meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142
Backplane Current 800mA @ 5V dc maximum
Environmental Conditions Operational Temperature: 0° to 60°C (32° to 140°F)
Storage Temperature: -40° to 85°C (-40° to 185°F)
Relative Humidity: 5 to 95% (without condensation)
Conductors Wire Size: 14 gauge (2mm2) stranded (max)
3/64 inch (1.2mm) insulation (max)
Category 1
Keying Between 16 and 18, Between 22 and 24
Fuses Four 4.0A, 250V normal blow fuses (1 per group)
Field Wiring Arm 1771-WN
Wiring Arm Screw Torque 7-9 inch-pounds
Agency Certification CSA certified
CSA Class I, Division 2, Groups A, B, C, D certified
UL listed
CE marked for all applicable directives
