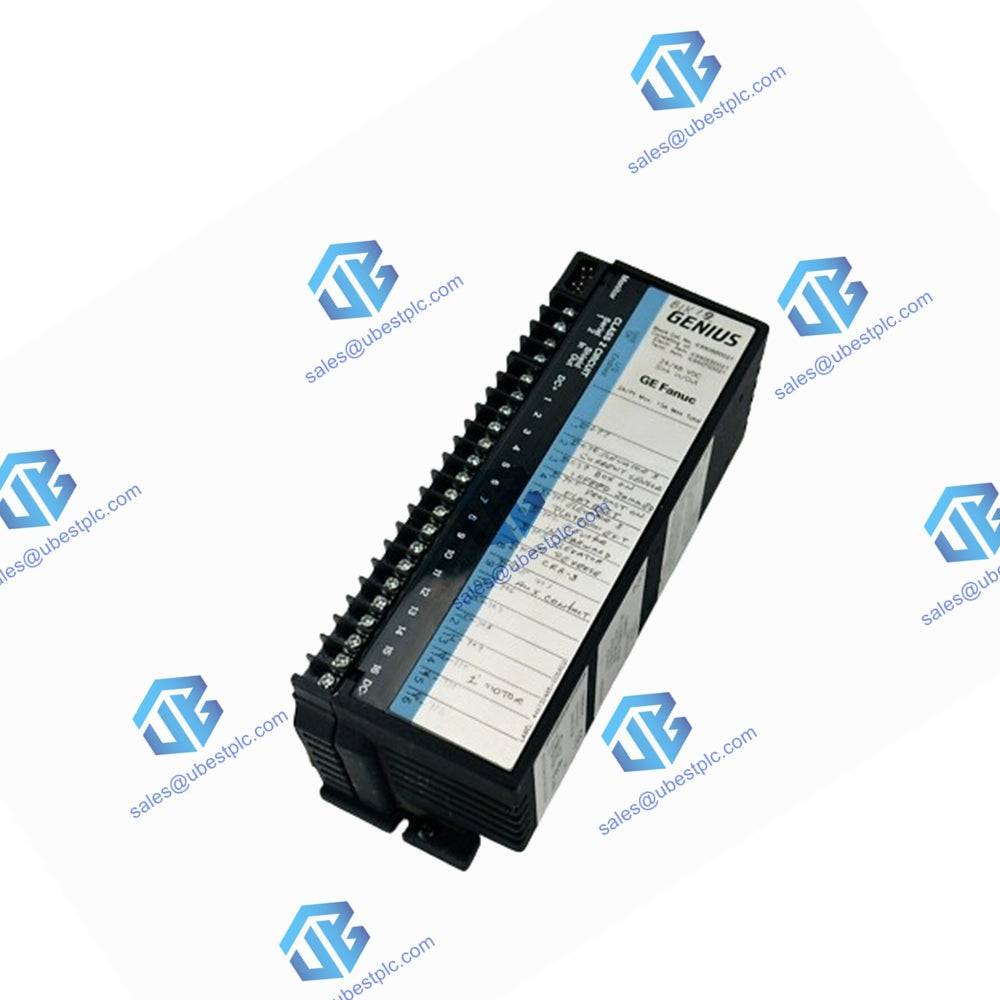

16 Circuit Discrete Input And Output GE IC660TBD023

Overview

The GE Fanuc IC660TBD023 is a versatile 16-circuit discrete input and output block from the Genius I/O series. With its high isolation rating, efficient power handling, and fast power supply recovery, this module is ideal for applications in demanding industrial environments.

Technical Specifications

• Brand: GE Fanuc
• Model: IC660TBD023
• Series: Genius I/O
• Part Number: IC660TBD023
• Description: 16 Circuit Discrete Input and Output Block
• Block Type: 16 input and output circuits
• Rated Voltage: 24 Volts DC
• Operating Voltage: 18 to 30 Volts DC
• Ripple: 10% maximum
• Power Supply Dropout Time: 10 milliseconds (DC)
• Required DC Power: 150 milliamps typical / 300 milliamps maximum
• Heat Dissipation (Max): 68.8 Watts with 16 outputs on at 2 Amps
• Block to Block Isolation: 1500 Volts for 1 minute
• Dimensions (HxWxD): 224 x 88 x 100 mm (8.8 x 3.5 x 3.9 inches)
• Weight: 1.8 kg (4 pounds)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 100°C (-40 to 212°F)

Applications

• Industrial Control Systems: Ideal for industrial automation and control applications requiring reliable discrete I/O.
• Process Monitoring: Used for systems that require quick and accurate feedback from input/output circuits.
• Data Acquisition Systems: Essential for gathering signals and managing outputs in remote or complex data systems.

FAQ

Q: What is the operating voltage range for the IC660TBD023?
A: The IC660TBD023 operates within a voltage range of 18 to 30 Volts DC, with a rated voltage of 24 Volts DC.

Q: How much power does the IC660TBD023 consume?
A: The module typically requires 150 milliamps of DC power, with a maximum requirement of 300 milliamps.

Q: What is the heat dissipation of this block?
A: The IC660TBD023 has a maximum heat dissipation of 68.8 Watts when all 16 outputs are activated at 2 Amps.

Q: How fast is the power supply dropout time?
A: This device has a fast power supply dropout time of 10 milliseconds (DC).

Q: What are the temperature limits for operation?
A: The module can operate within a temperature range of 0°C to 60°C (32°F to 140°F) and can be stored at temperatures between -40°C and 100°C (-40°F to 212°F).
