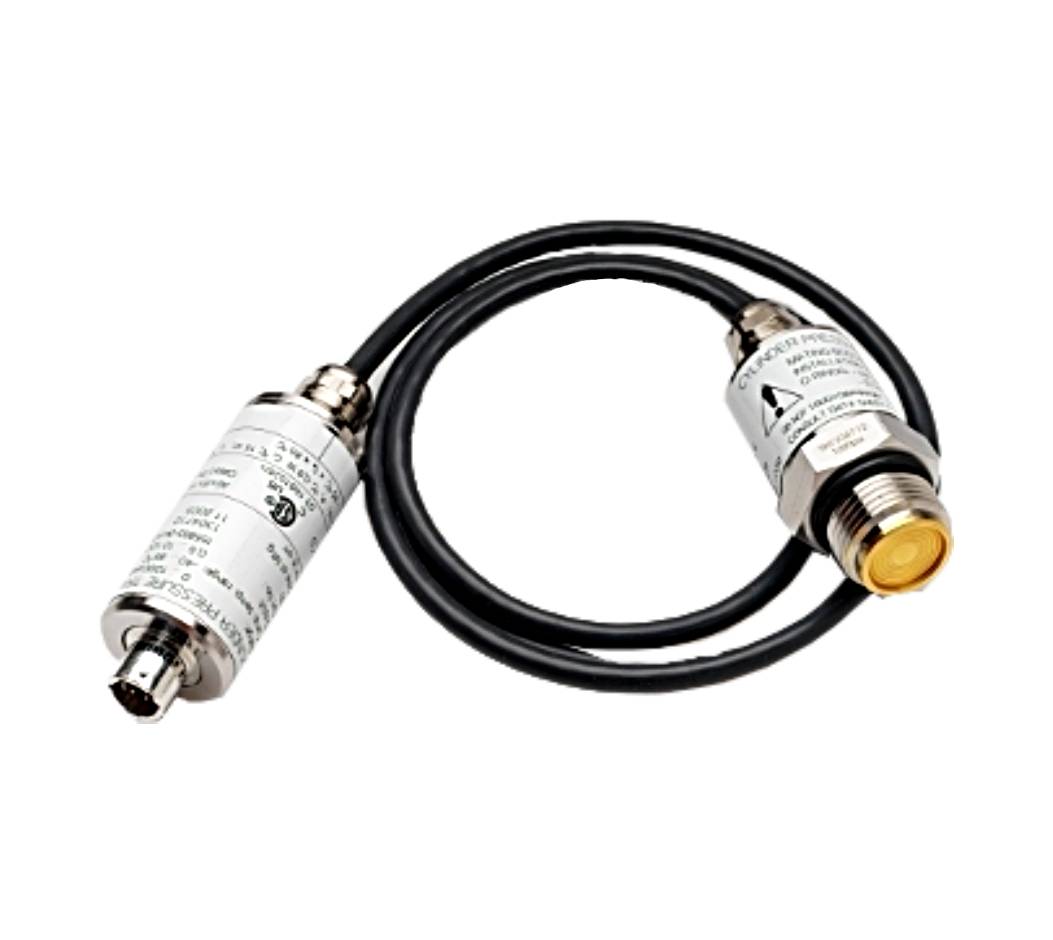

146824-0050 Cylinder Pressure Transducer Cable

Overview

The Bently Nevada 146824-0050 Cylinder Pressure Transducer Cable is an advanced solution for precise pressure measurement, ensuring high reliability in industrial applications. Designed and manufactured in the U.S.A., this cable is suitable for harsh environments, offering durability and exceptional performance. A Certificate of Origin (COO) can be added upon request.

Key Features

• Length Options:

  • 0050 = 50 ft (15.2 m)

• Dimensions:

  • Diameter: 3.175 cm
  • Width: 3.175 cm
  • Height: 3 cm

• Weight:

  • Total Weight: 0.25 kg (0.55 lbm)
  • Sensor Head: 150 g (0.33 lbm)

• Material Composition:

  • Gold plated, per MIL-G-45204 Type III, Grade A
  • C-276 welded to a 316L stainless steel body

• Environmental Conditions:

  • Humidity: 95% condensing (excluding connector)
  • Body design: IP67 rating for enhanced durability
  • Maximum altitude: Up to 2000 meters above sea level

• Operating Temperatures:

  • Hifluor O-ring: -26°C to 150°C (-15°F to 302°F)
  • Ethylene Propylene O-ring: -40°C to 150°C (-40°F to 302°F)

Technical Specifications

• Measurement Ranges:

  • Pressure: 0 to 100/250/500/1000/2500/5000/10,000 psia
  • Bar: 0 to 6.8/17/34.5/69/172/345/689 bar

• Performance:

  • Proof Pressure: 1.5X Full Scale
  • Burst Pressure: 3X Full Scale (2X FS for 689 bar/10,000 psia)
  • Linearity, Hysteresis, Repeatability: ≤ ±0.3 %FS

• Electrical Specifications:

  • Full Scale Output: 10 ± 0.3 Vdc
  • Zero Output: 0.5 ± 0.1 Vdc
  • Power Supply: 18 to 30 Vdc
  • Maximum Current: < 15 mA

• Environmental Ratings:

  • Overvoltage Category: II
  • Pollution Degree: 2

• Frequency Response:

  • 0 Hz to 5500 Hz ± 1 dB

• Thermal Compensation:

  • Range: -40°C to 85°C (-40°F to 185°F)
  • Zero Shift:
    • -1.0 to +2.0 %FS for 6.8 and 17 bar/100 and 250 psia
    • -0.5 to +1.5 %FS for other ranges

FAQs

• Q: What is the length of the 146824-0050 cable?
  A: The 146824-0050 cable is 50 feet (15.2 meters) long.
• Q: What materials are used for the cable's body?
  A: The body is constructed from gold-plated C-276 welded to 316L stainless steel.
• Q: Can the cable operate in extreme temperatures?
  A: Yes, it operates between -40°C and 150°C (-40°F to 302°F), depending on the O-ring material.
• Q: Is the transducer compatible with fluid media?
  A: It supports fluid media compatible with C-276 and either Hifluor or Ethylene Propylene O-rings.
