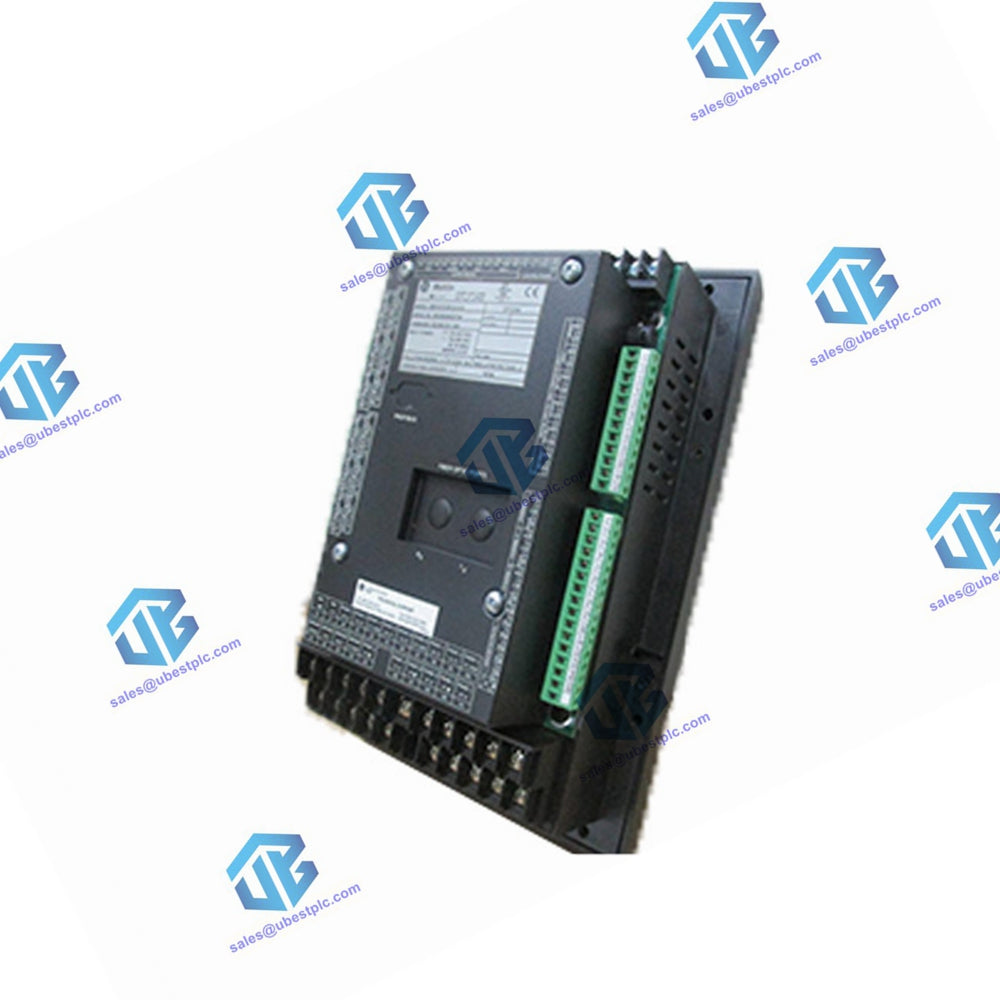

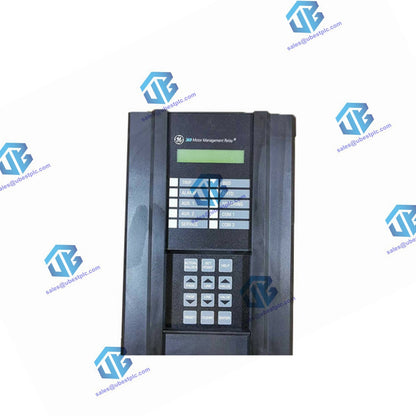

GE Multilin 369-HI-R-B-0-D-0-E 369 Motor Protection System

General Overview

The GE Multilin 369 Motor Management Relay is a digital relay designed to protect and monitor three-phase motors and their associated mechanical systems. It has the unique ability to ‘learn’ individual motor parameters, such as motor inrush current, cooling rates, and acceleration time, to enhance its protective capabilities.

Key Features

• Protection and Monitoring: Offers protection where other relays cannot, using the FlexCurve™ custom overload curve or one of fifteen standard curves.
• Communication Ports: One RS232 front panel port and three RS485 rear ports with standard Modbus RTU protocol.
• Input Methods: Setpoints can be entered via the front keypad or EnerVista 369 Setup software.
• Status Display: Displays status, actual values, and troubleshooting information via the front panel or through communications.
• RTD Monitoring: Optional monitoring for up to 12 RTDs from the stator, bearings, ambient, or driven equipment, with a remote RTD module available as an accessory.
• Metering Package: Optional package with VT inputs for voltage and power elements, metering V, kW, kvar, kVA, PF, Hz, and MWhrs. Includes three additional user-configurable analog outputs.

Specifications

• Power Supply: HI – 50–300 VDC / 60–265 VAC control power
• RTDs: R – Optional 12 RTD inputs
• Metering Package: B – Backspin detection and metering
• Fiber Optic: 0 – No optional fiber optic port
• Interface: D – DeviceNet
• Harsh Environment Option: 0 – None
• Enhanced / Diagnostics: E – Enhanced faceplate
• Weight: 5 kg

Enhanced Features (E Option)

• Enhanced faceplate with motor status indicators
• Motor Health Report
• Enhanced learned data
• Motor Start Data Logger
• Enhanced event recorder
• Security audit trail events

Accessories

• EnerVista 369 Setup Software: Free setup and monitoring software.
• RRTD: Remote RTD Module for up to 12 RTDs, connected via fiber optic or RS485.
• F485: Communications converter between RS232 and RS485 / fiber optic.
• CT: Various current transformers (CTs) with 1 A or 5 A secondaries.
• HGF: Ground CTs for sensitive earth fault detection.
• 515: Blocking and test module.
• DEMO: Metal carry case for the 369 relay.
• FPC15: Remote faceplate cable, 15 feet.
