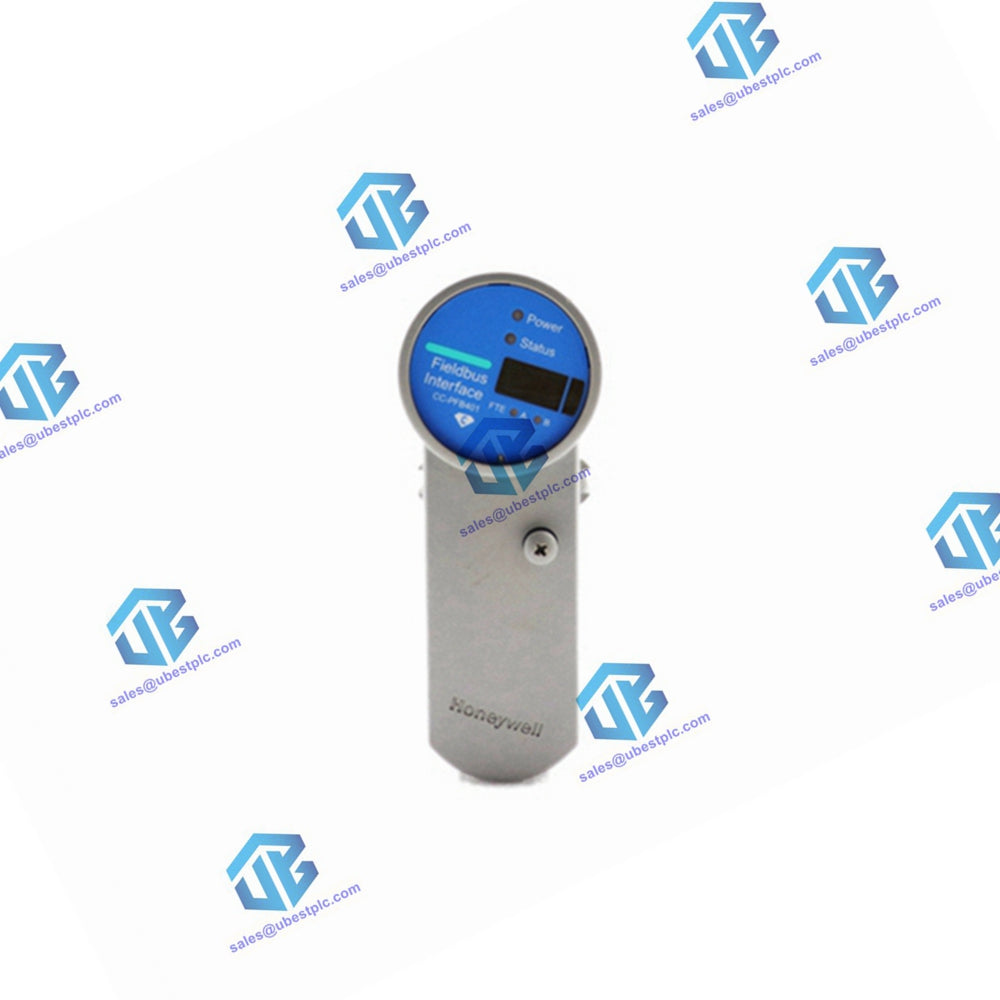

CC-PSV201 Honeywell Servo Valve Positioner Module

CC-PSV201 Honeywell Servo Valve Positioner Module

Technical Specifications:

Manufacturer:
Honeywell
Product No.:
CC-PSV201
Condition:
In Stock
Product Type:
Servo Valve Positioner Module
Product Origin:
USA
Weight:
300g
Shipping port:
Xiamen
Warranty:
12 months

Servo Valve Positioner Module (SVPM) – CC-PSV201

Function

This Series C I/O module provides an onboard PID positioning loop for positioning a servo valve typically used in a turbomachinery control application. It can accept LVDT/RVDT/4-20 mA position feedback signals from the control valve, receive a control valve demand remote set point from a C300-20msCEE controller, and execute an onboard PID positioning loop to issue current output to the servo valve coil to control the control valve position.

Notable Features

  • Onboard PID positioning loop execution with overall loop latency within 10 mS
  • Onboard excitation supply for LVDT and support for various configurations of LVDT connections
  • LVDT input channel can be optionally configured to accept 4-20 mA analog input signal
  • Supports a wide range of unidirectional/bidirectional current output to servo valve coil
  • Servo valve output channel can optionally be configured for 4-20 mA analog output signal
  • Accepts two digital inputs, which can be configured to drive servo valve output to a safe value
  • PID execution using the position measurement and remote set point received from the C300 20 ms controller
  • Extensive module-level diagnostics (PV qualification for AI & AO, LVDT excitation frequency drift check, internal reference check, power supply diagnostic, memory diagnostics, etc.)
  • Extensive field-level diagnostics (open wire detection for Servo, LVDT, AI [4-20 mA] and DI; LVDT core fallout; read back current diagnostics for Servo and AO [4-20 mA])
  • Drive Servo output to a safe value on detecting abnormal conditions of control components
  • Point processing at 2.5 mS period for "LVDT/RVDT signal" and PID execution
  • Provides digital dither (current modulation) to compensate stiction in the controlled device (servo valve)
  • Supports servo valve position calibration
  • Supports redundant solution
  • Supplies non-incendive field power

SVPM Supports the Following I/O Interfaces

  • LVDT/RVDT/analog input – 2 channels
  • Digital input – 2 channels
  • Servo/analog output – 2 channels
  • 2 PID blocks

Detail Specifications – SVPM

Input/Output Model

  • CC-PSV201 - Servo Valve Positioner Module
  • CC-TSV211 Redundant 18"

Servo Output

Parameter Specification
Output Type Bipolar current (Ranges: 10, 20, 40, 80, 160, 320 mA)<br>Unipolar current (Ranges: 50, 300 mA)
Output Channels 2
Dither 0-10% of FS, 25-60 Hz
Output Temperature Drift 300 ppm per deg C
Output Current Linearity 0.325%
Resolution 16-bit DAC
Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC) Maximum coil resistances allowed for different current ranges with this interface are available in Honeywell DFS document
Maximum Open Circuit Voltage ±14 V
Gap (0 mA) of Output to Field on Switchover 15 mS maximum

LVDT Interface

Parameter Specification
Input/Feedback 3/4/5/6 wires LVDT feedback signals, 8 V RMS max., 2.5-3.2 KHz
Excitation 8 V RMS max, 2.5-3.2 KHz (max. internal excitation is 50 mA)
Frequency Stability 2.5-3.2 KHz ±5 Hz from set value
Channels 2
Galvanic Isolation (any input terminal voltage referenced to common) ±500 VDC
Isolation Technique Isolation transformer
A/D Converter Resolution 16-bits
Input/Output Range (1) 8 V RMS max., 2.5-3.2 KHz
Input Impedance (voltage inputs) Impedance > 25 Kohm (2.5 KHz to 3.2 KHz)
Input Scan Rate 2.5 mS
Hardware Accuracy (@ CMV = 0 V) < 1%

Analog Inputs

  • AI & LVDT signals are mutually exclusive
Parameter Specification
Input Type Voltage, current (2-wire or self-powered transmitters)
Input Channels 2
Common Mode Voltage, DC to 60 Hz -6 to +5 V peak
A/D Converter Resolution 16-bits
Input Range (1) 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
Maximum Normal Mode Input (differential inputs, no damage) ±30 V
Input Impedance (voltage inputs) > 10 M Ω powered
Maximum Input Voltage (any input referenced to common, no damage) ±30 V
Input Scan Rate 5 ms
Hardware Accuracy (@ CMV = 0 V) ± 0.075% of full scale (23.5°± 2°C)<br>± 0.15% of full scale (0 to 60°C)

Analog Outputs

  • AO & Servo signals are mutually exclusive
Parameter Specification
Output Type 4-20 mA
Output Channels 2
Output Ripple < 100 mV across 250 Ω load
Output Temperature Drift 0.005% of full scale/°C
Output Readback Accuracy ±4% of full scale
Output Current Linearity ±0.05% of full scale nominal
Resolution ±0.05% of full scale
Calibrated Accuracy ±0.35% of full scale (25°C) including linearity
Directly Settable Output Current Range 0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC) 760 ohms
Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC) 16 V
Maximum Open Circuit Voltage 18 V
Response Time (DAC input code to output) 1 mS
Gap (0 mA) of Output to Field on Switchover 15 mS max.

Digital Inputs

Parameter Specification
Input Channels 2
DI Power Voltage Range 22 to 28 VDC
ON Sense Voltage/Current 13 VDC (min.) or 6.12 mA (min.)
OFF Sense Voltage/Current 5 VDC (max.) or 2.1 mA (max.)
Input Impedance 4.6K
Absolute Delay Across Input Filter and Isolation 1.78 mS
Field Resistance for Guaranteed ON Condition 300 Ω max. @ 15 VDC
Field Resistance for Guaranteed OFF Condition 30 KΩ min. @ 30 VDC
