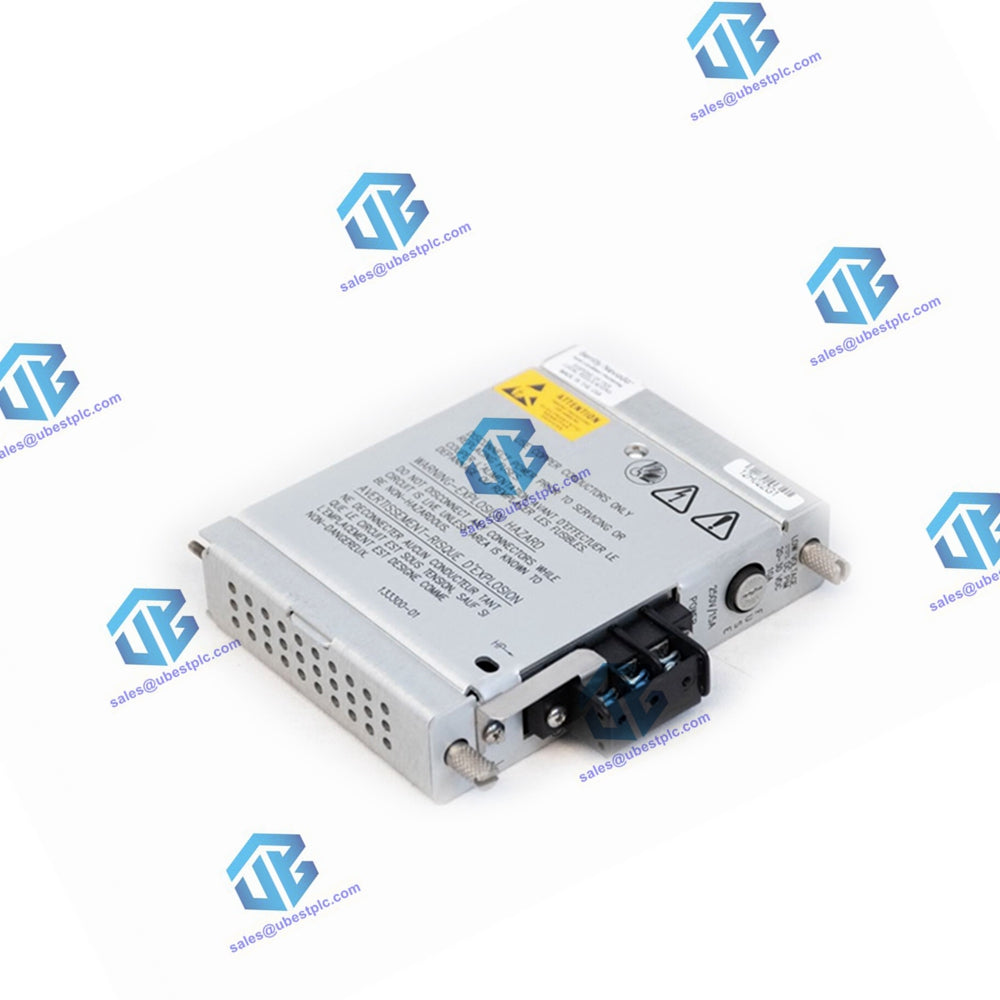

133300-01 Bently Nevada - Low Voltage DC Power Input Module (PIM)

133300-01 Low Voltage DC Power Input Module (PIM)

Specifications

Inputs:

• Voltage Range: 20 to 30 Vdc
• Protection: Under-voltage protection without harm to the supply or PIM. Over-voltage causes the fuse to open.

Outputs:

• Current Draw: 10.0 A (maximum)

Environmental Limits:

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, non-condensing

Physical Characteristics:

• Dimensions: Height: 120.7 mm, Width: 25.4 mm, Depth: 114.3 mm (4.75 in x 1.0 in x 4.5 in)
• Weight: 0.34 kg (0.75 lbs)

CE Mark Directives:

• EMC Directives:

  • EN50081-2: Radiated Emissions (EN 55011, Class A), Conducted Emissions (EN 55011, Class A)
  • EN50082-2: Electrostatic Discharge (EN 61000-4-2, Criteria B), Radiated Susceptibility (ENV 50140, Criteria A), Conducted Susceptibility (ENV 50141, Criteria A), Electrical Fast Transient (EN 61000-4-4, Criteria B), Surge Capability (EN 61000-4-5, Criteria B), Magnetic Field (EN 61000-4-8, Criteria A), Power Supply Dip (EN 61000-4-11, Criteria B), Radio Telephone (ENV 50204, Criteria B)

• Low Voltage Directives: EN 61010-1 Safety Requirements

Hazardous Area Approvals:

• CSA/NRTL/C: Class I, Division 2, Groups A through D.

Ordering Information

• Power Supply Type:

  • A: Top Slot
    • 04: Low Voltage DC (20 to 30 Vdc)
  • B: Bottom Slot
    • 00: No supply (use when only one supply is required)
    • 04: Low Voltage DC (20 to 30 Vdc)

• Agency Approval Option:

  • 00: None
  • 01: CSA/NRTL/C

Spares:

• 133300-01: Low Voltage DC Power Input Module (PIM)
• 01720045: Replacement Fuse (Low Voltage DC PIM)
