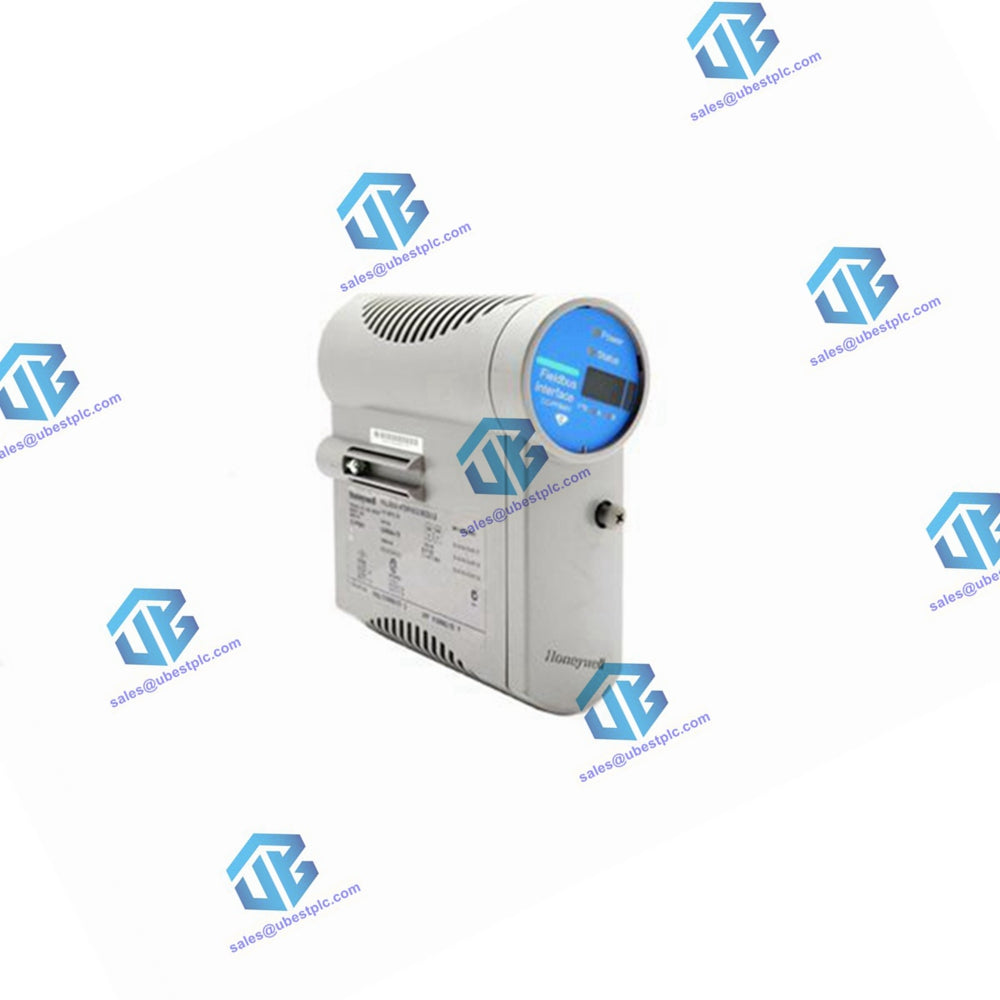

CC-PCNT02 Honeywell C300 Controller Module

Description

The Honeywell CC-PCNT02 C300 Controller Module is a critical component of the Experion Process Knowledge System (PKS). It is designed to deliver robust and reliable control for various industrial applications. The module integrates seamlessly with other Honeywell components, providing advanced control capabilities and ensuring optimal system performance.

Features

• Enhanced Memory: Increased to 64 MB of main memory, allowing for extended functionalities.
• Updated Hardware: Application board now uses the Spartan-3A FPGA family ASIC, replacing the obsolete Spartan-IIE FPGA.
• Compatibility: Can be used as a direct replacement for CC-PCNT01 with appropriate firmware.
• Advanced Functionalities: Supports Profit Controller and Ethernet Interface Module (IEC & EIP) blocks.
• Identifiable Markings: Marked as CC-PCNT02 on the front display, and identified in the FTE Status Display and Ctools.
  • C300V2 for PCNT01
  • C300V3 for PCNT02 with PCNT01 compatible firmware
  • C300V3E for PCNT02 with extended functionality firmware

Specifications

• Processor: High-performance processor supporting advanced control applications.
• Memory:
  • Main Memory: 64 MB
  • User Memory: 16 MB
• Performance Capacity:
  • Block Performance: 5500 Execution Units (XU) per second with an average CPU loading (CPUCYCLEAVG) of no more than 60.
  • Tagged Objects: 4095 total CMs, SCMs, UCMs, RCMs, IOMs, and other named objects.
  • Alarms and Events: 10 events per second.
  • Total I/O Budget: 64 I/O units.
  • Number of I/O Links: 2
  • Data Access Performance: 2000 points per second.
  • Data Access Connections: Up to 12, with up to two servers and 20 direct stations.
  • Peer to Peer Connections: 30 Peer Connection Units.
• Communication Protocols: Supports Ethernet/IP, Modbus, and OPC for versatile connectivity.
