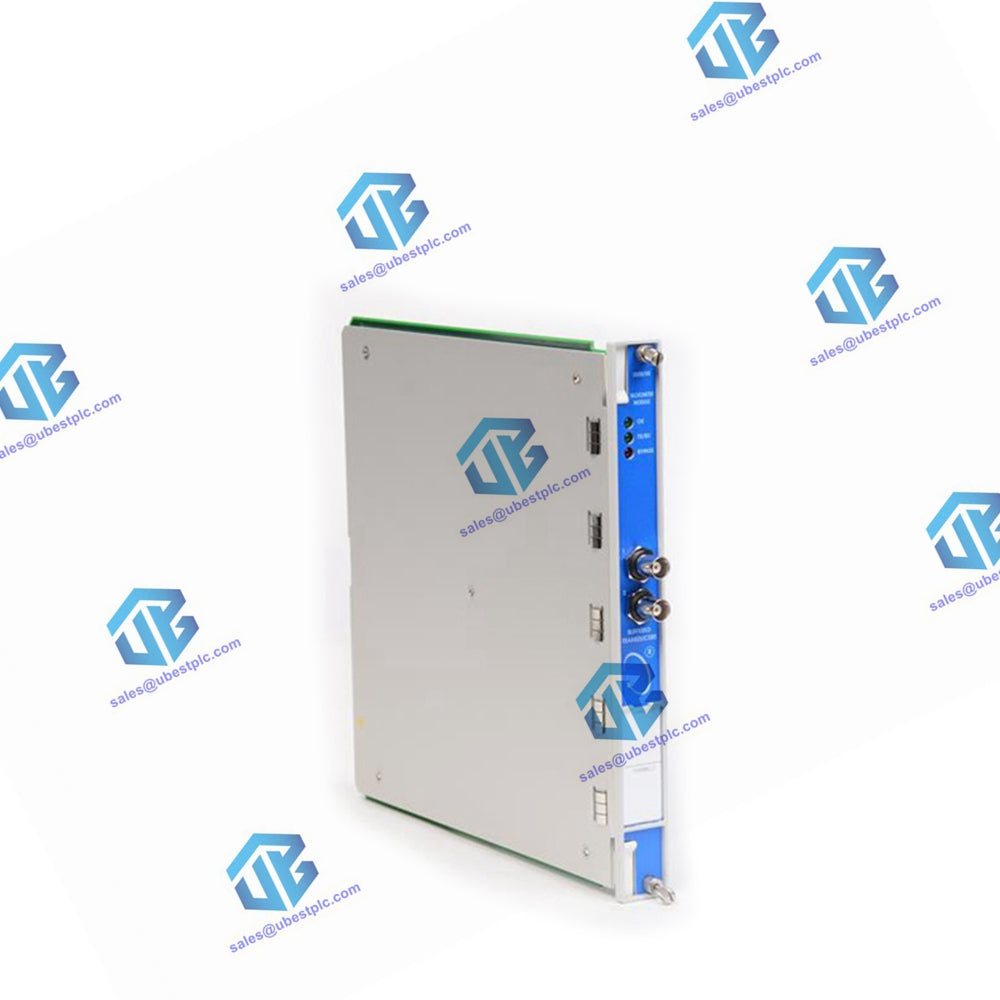

3500/92-01-01-00 Bently Nevada Communication Gateway Module

3500/92 Communication Gateway

Description The 3500/92 Communication Gateway module provides extensive communication capabilities for all rack-monitored values and statuses. It integrates with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software. Supported protocols include:

• Modicon Modbus protocol (via serial communications)
• Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
• Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The 3500/92 supports the communication interfaces, protocols, and other features from the original 3500/90, with the exception of the primary value Modbus registers. The 3500/92 now includes a Configurable Modbus Register Utility, providing the same functionality originally addressed by the primary value Modbus registers.

Specifications

Inputs

• Power Consumption:
  • 5.0 watts typical with Modbus RS232/RS422 I/O Module
  • 5.6 watts typical with Modbus RS485 I/O Module
• Data Types: Collects data from other modules in the rack, such as current measured values with timestamp, module statuses, and current alarm statuses, via a high-speed internal network. Exact data types returned depend on module type and channel configuration.
• Update Time: Data collection rate depends on rack configuration but will not exceed 1 second for all modules in the 3500 rack.

Outputs

• OK LED: Indicates when the 3500/92 is operating properly.
• TX/RX LED: Indicates when the 3500/92 is communicating with other modules in the 3500 rack.

Protocols

• BNC Host Protocol: Communication with 3500 Configuration Software and 3500 Data Acquisition and Display Software over Ethernet TCP/IP.
• Modbus: Based on AEG Modicon PI-MBUS-300 Reference Manual. Uses Remote Terminal Unit (RTU) transmission mode.

Ethernet Communication Link

• Ethernet: 10Mbps, conforms to IEEE802.3 Protocol
• Ethernet TCP/IP frame and Modbus/TCP Connection: RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling

Environmental Limits

• Operating Temperature: -30 °C to +65 °C (-22 °F to +149 °F)
• Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95%, non-condensing

Physical Specifications

• Main Board Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
• Main Board Weight: 0.82 kg (1.8 lb)
• I/O Modules Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• I/O Modules Weight: 0.44 kg (0.96 lb)

Rack Space Requirements

• Monitor Module: 1 full-height front slot
• I/O Modules: 1 full-height rear slot

Ordering Information

• 3500/92-01-01-00
  • 3500/92: Communication Gateway
  • -01: Modbus RS232/RS422 I/O Module
  • -01: Low Memory
  • -00: None Agency Approval
