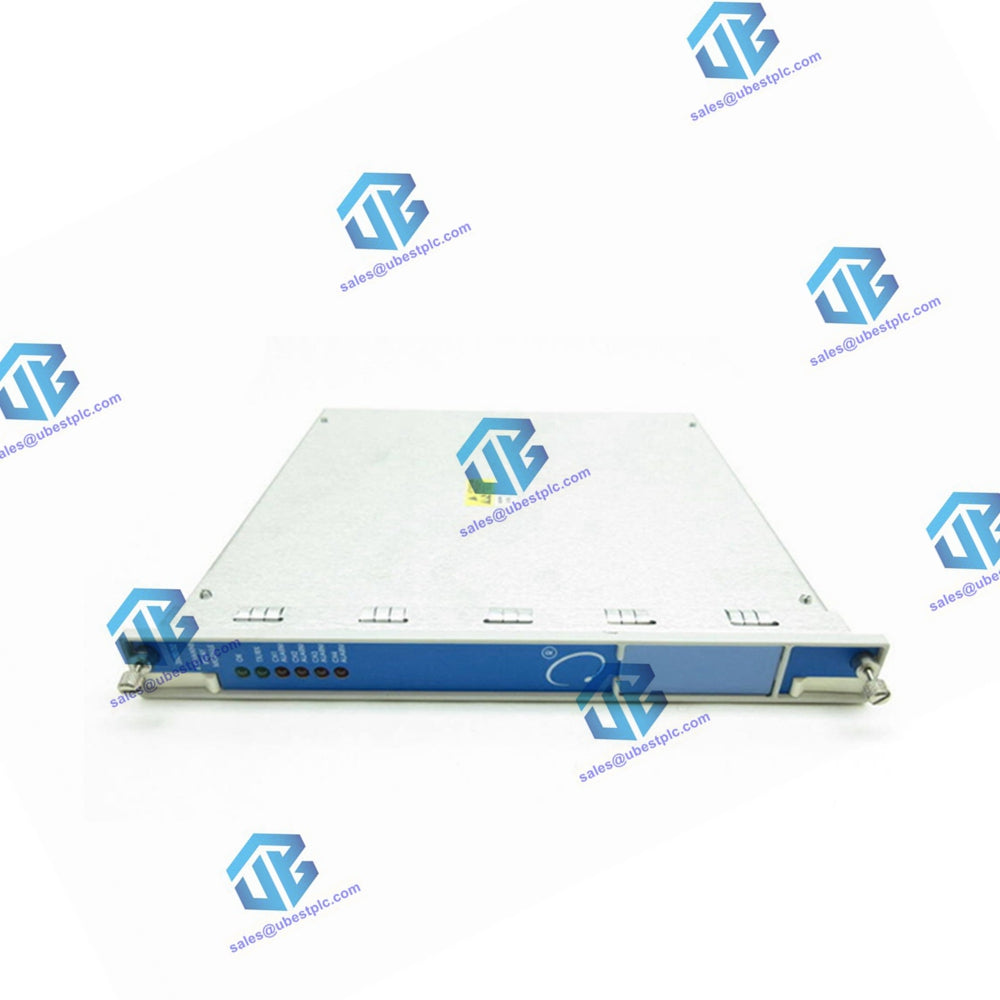

125712-01 | Bently Nevada 3500/32 Spare 4-Channel Relay Module

Description:

The 125712-01 Bently Nevada 3500/32 Spare 4-Channel Relay Module is a full-height module that provides four relay outputs designed for use in 3500 monitoring systems. These relays can be independently programmed with "Alarm Drive Logic," utilizing AND and OR logic to respond to alarm inputs from monitor channels within the rack. This configuration is managed using the 3500 Rack Configuration Software, ensuring flexibility to meet specific application needs.

Specifications:

• Inputs:

  • Power Consumption: 6 watts typical.

• Outputs:

  • OK LED: Indicates module functionality.
  • TX/RX LED: Flashes during communication with other modules.
  • CH ALARM LED: Illuminates during relay channel alarm states.

• Relays:

  • Type: Two single-pole, double-throw (SPDT) relays configured as double-pole, double-throw (DPDT).
  • Contact Life: 100,000 cycles @ 5 A, 24 Vdc or 120 Vac.
  • Operation: Switch selectable for Normally De-energized or Normally Energized.

• Environmental:

  • Sealing: Epoxy-sealed.
  • Arc Suppressor: 250 Vrms, installed as standard.
  • Operating Temperature: -30°C to +65°C (-22°F to +150°F).
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).
  • Humidity: 95%, non-condensing.

• CE Mark Directives:

  • EMC Directives: Compliance with various standards including radiated emissions, conducted emissions, electrostatic discharge, etc.
  • Low Voltage Directives: Safety requirements compliant with EN 61010-1.

• Hazardous Area Approvals:

  • CSA/NRTL/C Approval Option (Class I, Div 2).

• Contact Ratings:

  • Resistive Load:
    • Max Switched Power:
      • DC: 120 W
      • AC: 600 VA
    • Minimum Switched Current: 10 mA @ 5 Vdc
    • Max Switched Current: 5 A
    • Max Switched Voltage:
      • DC: 30 Vdc
      • AC: 250 Vac

• Physical:

  • Main Module Dimensions: 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in), Weight: 0.7 kg (1.6 lb.)
  • I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in), Weight: 0.4 kg (1.0 lb.)
  • Rack Space Requirements: Main Module requires 1 full-height front slot, I/O Modules require 1 full-height rear slot.

This 4-Channel Relay Module is integral for implementing voting logic and handling alarm signals within the Bently Nevada 3500 system, offering robust reliability and flexibility in industrial monitoring applications.
