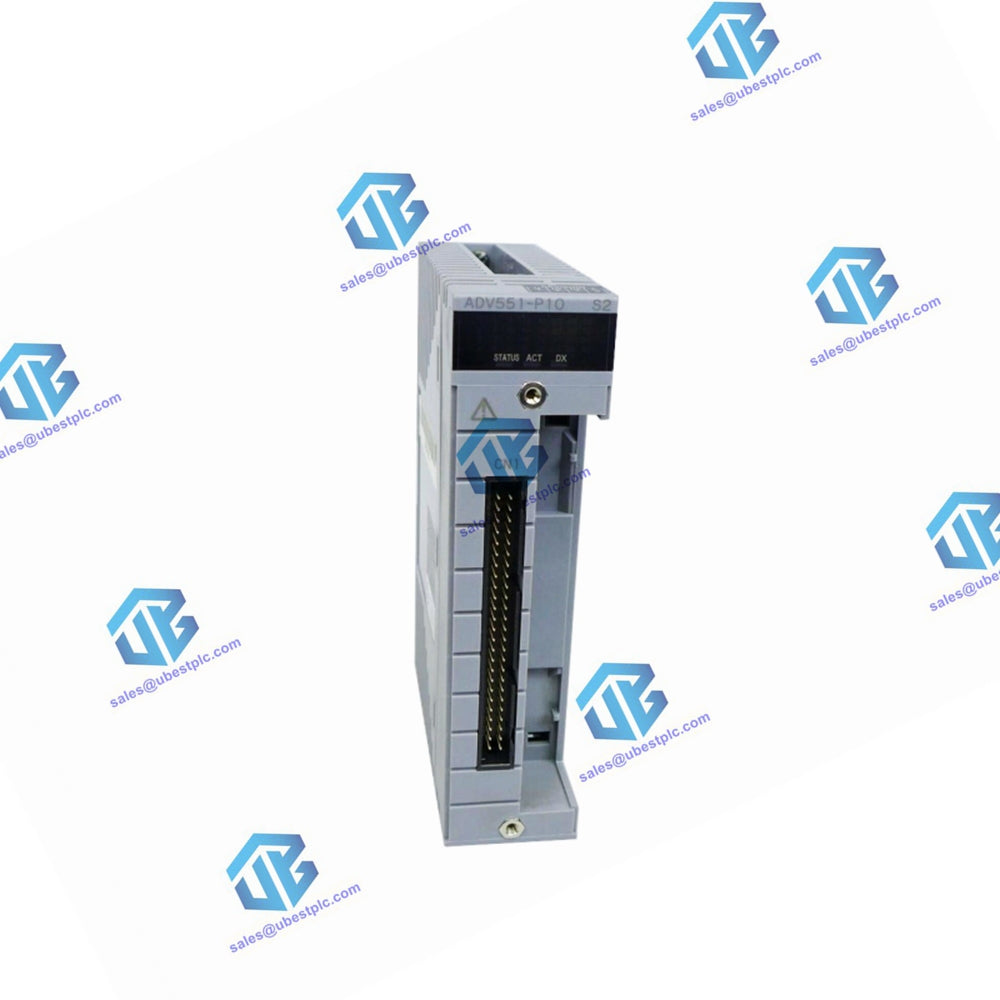

Yokogawa ADV551-P10 Style S2 Digital Output Module
Manufacturer:
Yokogawa
Product No.:
ADV551-P10
Condition:
In Stock
Product Type:
Digital Output Module
Product Origin:
USA
Weight:
260g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Model ADV551-P10 Digital Output Module (32-channel, 24 V DC, Isolated)
The Digital Output Modules output 32-channel or 64-channel transistor contact signals.
Item Specifications
| Model | ADV551 |
|---|---|
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage Maximum Value | 2 V DC |
| Leak Current Maximum Value when Output OFF | 0.1 mA |
| Output Format | Current sink |
| *Maximum Load Current (1) | 100 mA/channel, 26.4 V |
| Withstanding Voltage | Between output signal and system: 2 kV AC, for 1 minute <br> Between commons: 500 V AC, for 1 minute, common minus (–) side every 16-channel (*2) |
| Functions |
Status output ON/OFF status output function Pulse width output One-shot pulse width output function Time-proportioning output Time-proportioning ON/OFF |
| Output Response Time |
3 ms or less (for status output) 10 ms or less (for mixed status and pulse outputs) |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, but ON/OFF delay of maximum 1 ms is added |
| Maximum Current Consumption |
700 mA (5 V DC) 60 mA (external power supply) |
| Weight | Approx. 0.20 kg |
| External Connection |
Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
| Dimensions | 130mm x 107.5mm x 32.8mm |
Suffix Codes
| Code | Description |
|---|---|
| -P | With pulse width output function/time-proportional output function |
| 5 | Without status display; with no explosion protection |
| 6 | With status display; with no explosion protection |
| E | Without status display; with explosion protection |
| F | With status display; with explosion protection |
| 0 | Basic type |
| 3 | With ISA Standard G3 option and temperature (-20 to 70 °C) option |
Option Codes
| Code | Description |
|---|---|
| /D5A00 | With KS Cable Interface Adapter for 32-channel Digital [Model : ATD5A-00] |
| /D5S00 | With Pressure Clamp Terminal Block for Digital Output [Model : ATD5S-00] |
| /D5S10 | With Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model : ATD5S-10] |
| /D5D00 | With Dual Pressure Clamp Terminal Block for Digital Output [Model : ATD5D-00] |
| /D5D10 | With Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model : ATD5D-10] |
| /CCC01 | With Connector Cover for MIL Cable [Model : ACCC01] |
