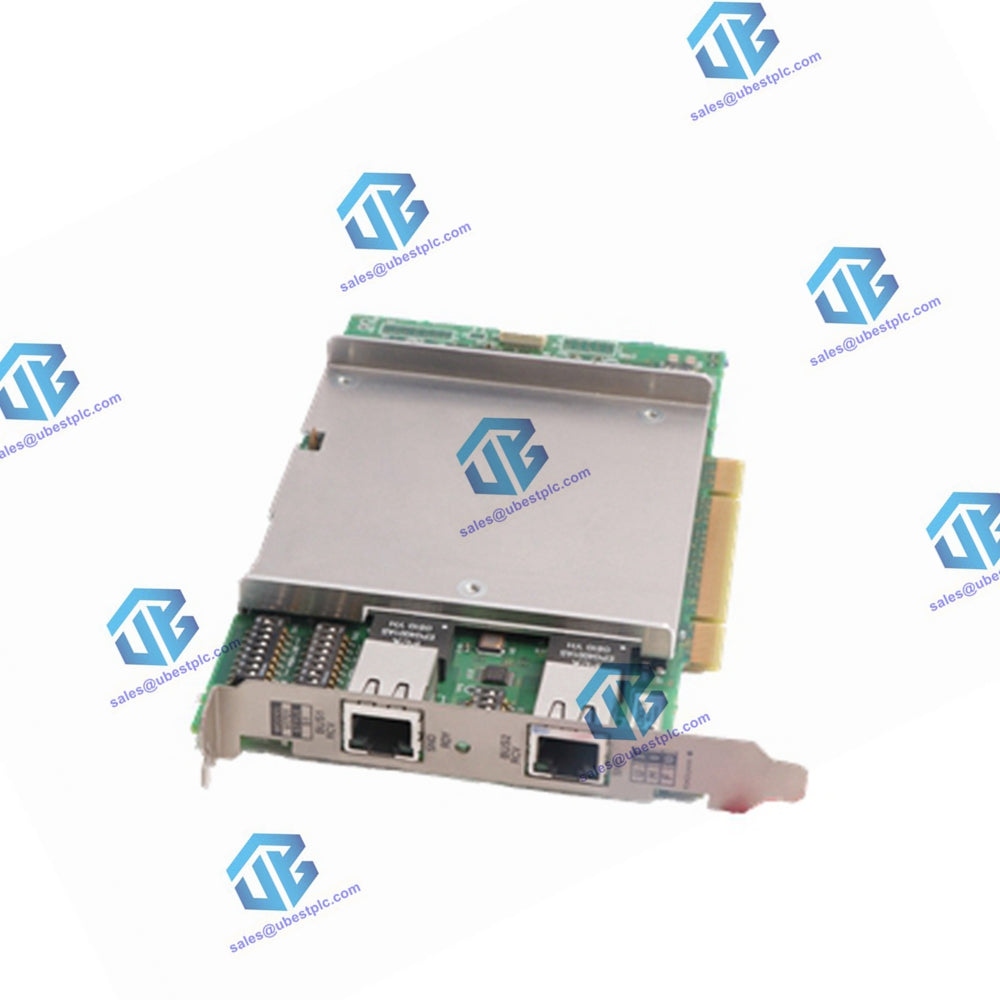

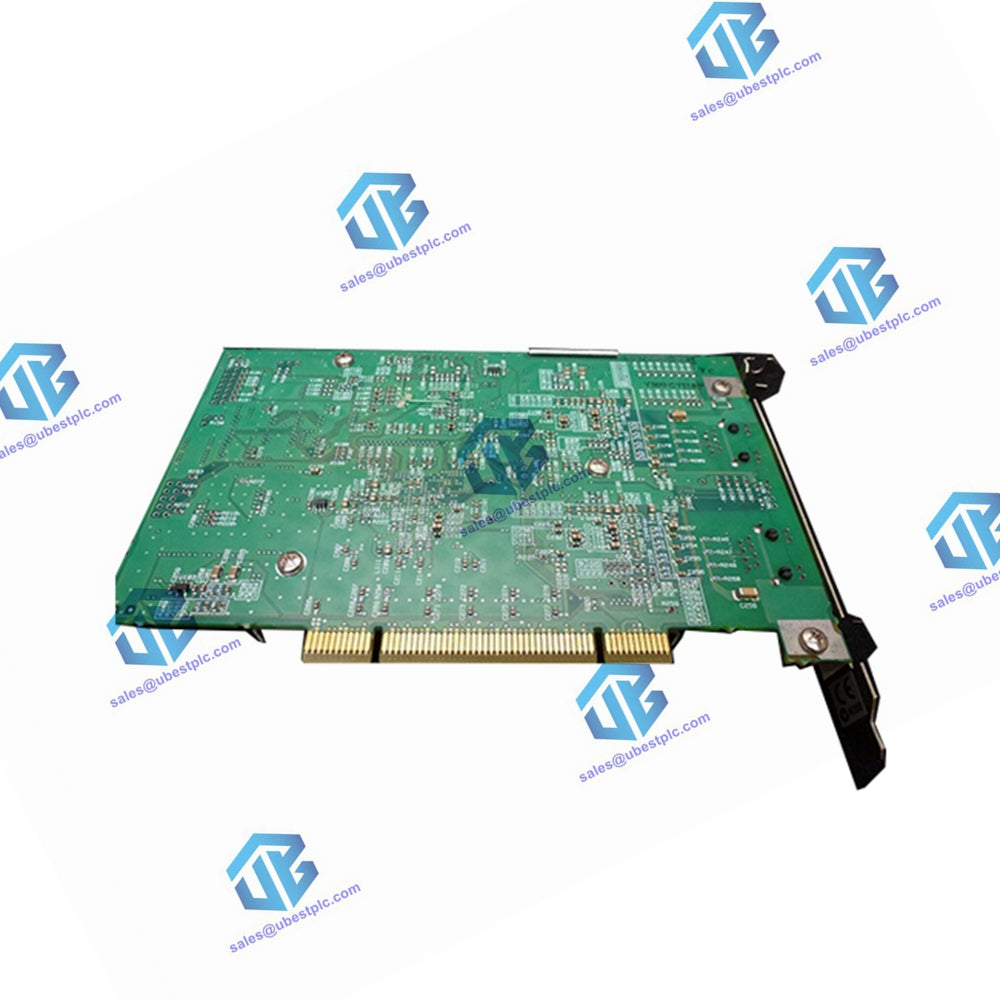

Overview of VI701 Vnet/IP Interface Card

The VI701 Vnet/IP Interface Card is designed to interface with a PCI bus and Vnet/IP in a PC/AT compatible personal computer via a PCI slot.

Functional Purpose

This card facilitates the communication between the PCI bus and Vnet/IP network, effectively integrating the computer into the CENTUM CS 3000 system environment.

Technical Specifications

• Communication Speed: Supports up to 1000 Mbps Full Duplex.
• Connection Specifications:
  • Cable Type: CAT5e (Enhanced Category 5 cable), UTP
  • Transmission Compliance: 1000Base-T
  • Connector Type: RJ45
  • Maximum Distance: Up to 100 m between VI701 and Layer 2 switch
  • Features: Autonegotiation
• PCI Bus Compatibility:
  • Standard: PCI Bus Specification 3.0
  • Bus Width and Speed: 32 bit / 33 MHz
  • PCI-X Compatibility: Can also be installed in PCI-X slots with a bus speed of 33 MHz
• Voltage Requirements:
  • Power Supply Voltage: 5 V
  • Signal Voltage: 3.3 V / 5 V
• Current Consumption: Maximum of 2.5 A
• Physical Dimensions:
  • Weight: 0.2 kg
  • Size: 106.68 mm x 167.64 mm
• Regulatory Compliance: Meets EMC Standards including CE and C-Tick Marks.

Key Components and Indicators

• RDY Lamp: Indicates normal card operation.
• RCV Lamp: Lights up when detecting signals on the control bus.
• SND Lamp: Activates when sending signals to the control bus.
• Ethernet Connector: Facilitates connection via CAT5e cable.
