Introduction

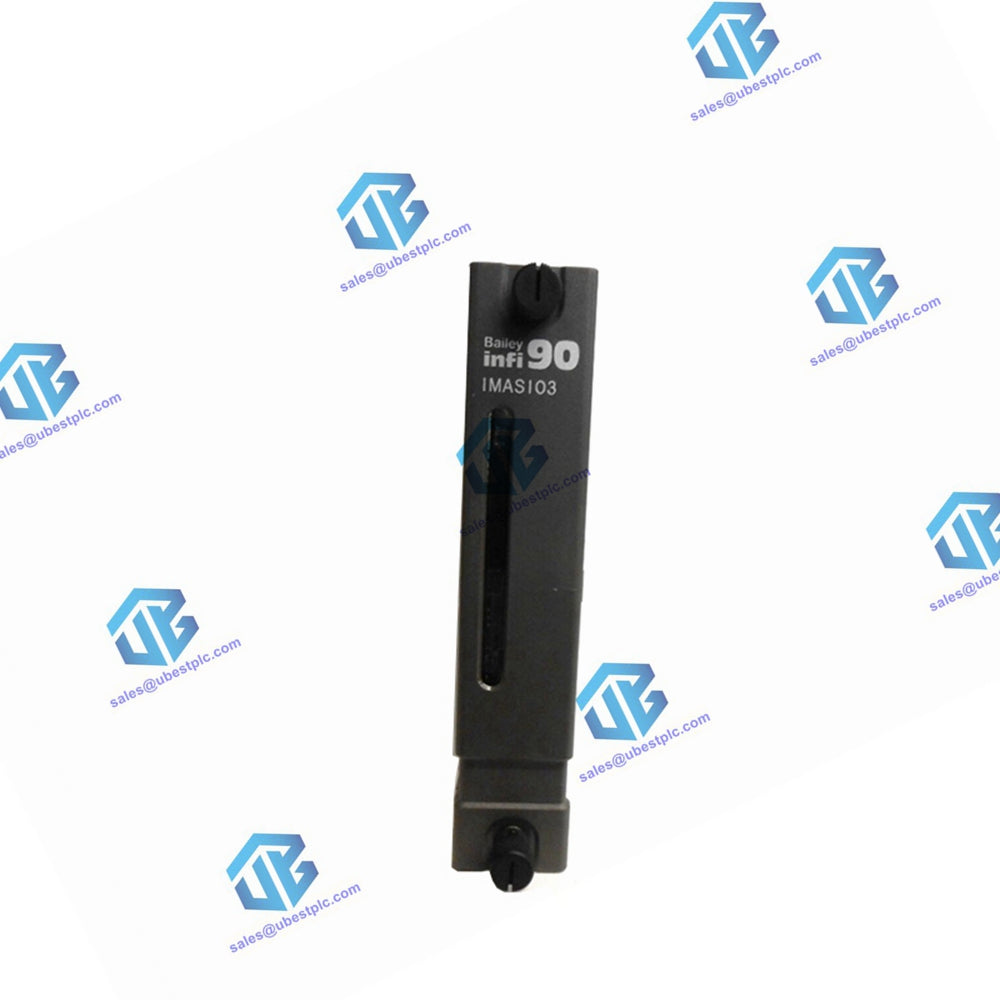

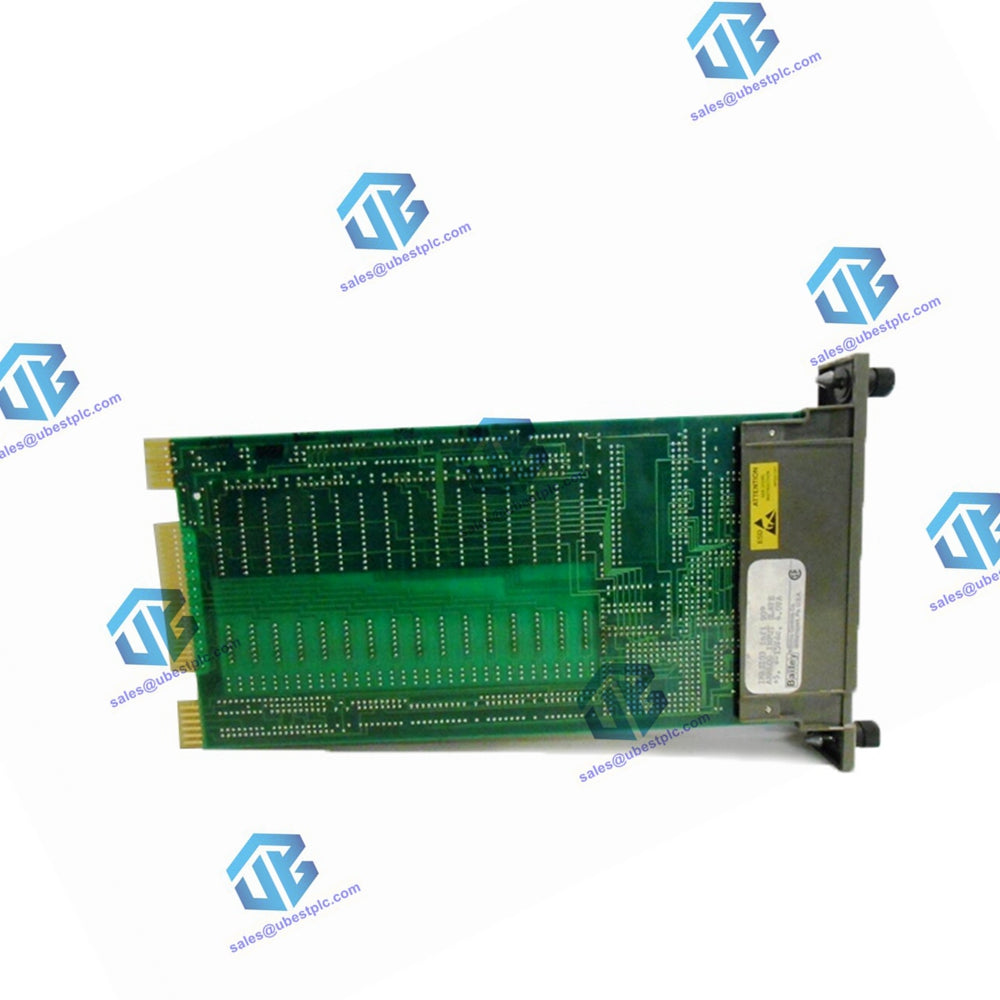

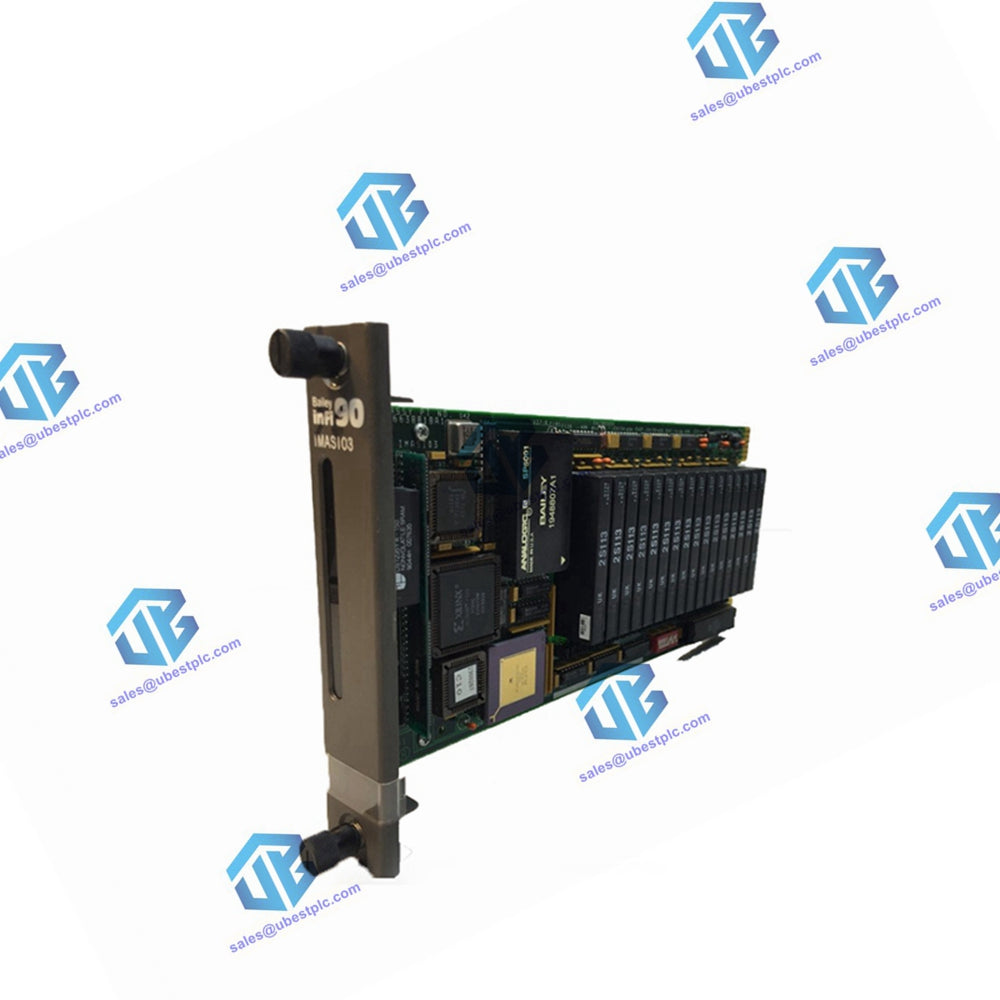

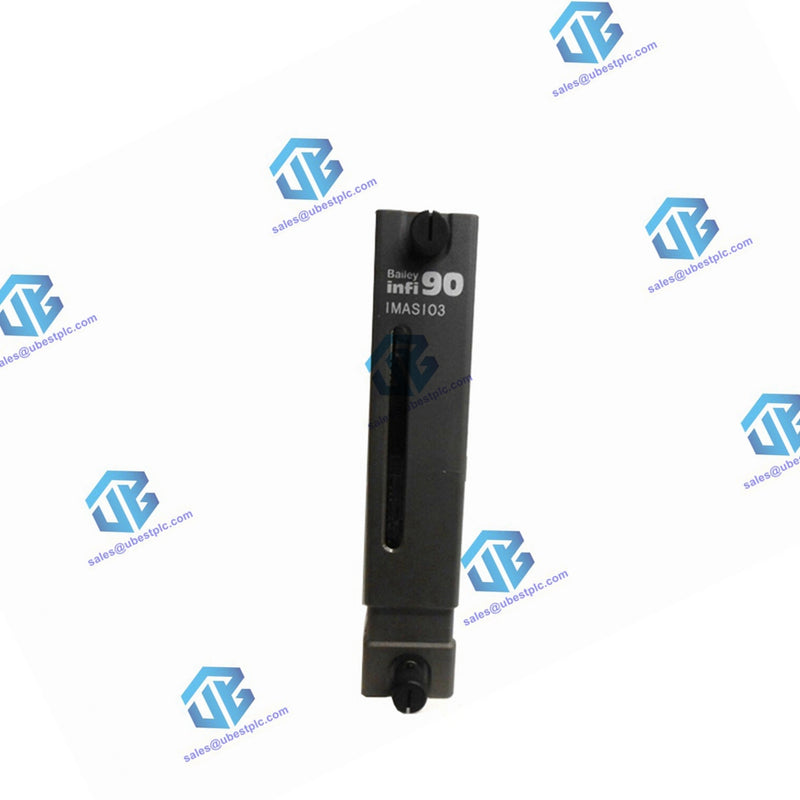

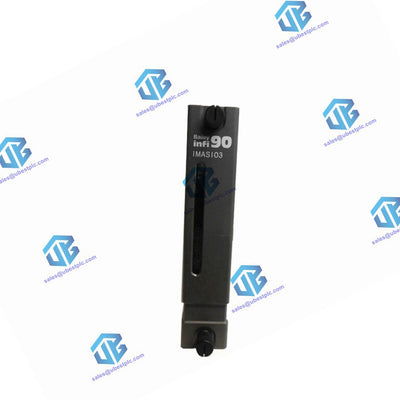

The IMASI03 is a single printed circuit board that occupies one slot in an INFI 90 Module Mounting Unit (MMU). Two captive latches on the module faceplate secure it to the MMU. The slave module has three card edge connectors for external signals and power: P1, P2, and P3. P1 connects to the supply voltages. P2 connects the IMASI03 to the slave expander bus, over which it communicates with the MFP.

Specifications

• Power Consumption

  • +5 VDC: typical 300 mA, maximum 450 mA
  • +15 VDC: typical 130 mA, maximum 150 mA
  • -15 VDC: typical 35 mA, maximum 50 mA

• Analog Input Types

  • Analog Input Channels: 16 independently configured channels
  • Thermocouples: Type E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U, Chinese type E, and Chinese type S
  • 3-Wire RTD:
    • 100 Ohm platinum: U.S. Lab. Standard
    • 100 Ohm platinum: U.S. Industry Standard
    • 100 Ohm platinum: European Standard
    • 120 Ohm nickel
    • 10 Ohm copper
    • Chinese 53 Ohm copper
  • Millivolt: -100 mV to +100 mV, 0 to 100 mV
  • High Level: 1-5 VDC, 0-5 VDC, 0-10 VDC, -10 VDC to +10 VDC, or user-specified range within -10 VDC and +10 VDC
  • Current: 4-20 mA, system or external powered

• Performance

  • Temperature Effect (0 - 70° C): ± 0.003% of full scale range per degree C maximum
  • Power Supply Effect Over Operating Range (± 15 Volt Supplies): ± 0.003% of full scale range per Volt maximum
  • Input Setting Time: 0.5 seconds to within 1% after full scale step change
  • Input Impedance: 10 MOhm minimum
  • Common Mode Isolation: Continuous
  • AC Voltage (Absolute Maximum): 250 VRMS
  • Channel/Channel (Absolute Maximum): 250 VRMS
  • 50/60 Hz Rejection (Minimum): -110 dB
  • Resolution (Bits of A/D):
    • 16 bits: 0.0015% of A/D Span, 30 ms
    • 18 bits: 0.00038% of A/D Span, 175 ms
    • 20 bits: 0.000095% of A/D Span, 175 ms
    • 22 bits: 0.000024% of A/D Span, 450 ms
    • 24 bits: 0.000006% of A/D Span, 2000 ms
  • Normal Mode Rejection: Peak or Continuous Voltage (Absolute Maximum) ± 15 VDC
  • 50/60 Hz AC Rejection (Minimum): -80 dB

Environment

• Electromagnetic Compatibility: No values available at this time.
• Radio Frequency Interference: Keep cabinet doors closed. Do not use communication equipment closer than 2 meters from the cabinet.
• Ambient Temperature: 0 to 70o C (32 to 158o F)
• Relative Humidity:
  • 5% to 95% up to 55o C (131o F) (noncondensing)
  • 5% to 45% at 70o C (158o F) (noncondensing)
• Atmospheric Pressure: Sea level to 3 km (1.86 miles) (86 kPa to 108 kPa)
• Air Quality: Noncorrosive

Mounting and Shipping

• Mounting: Occupies a single slot in a standard INFI 90 Module Mounting Unit (MMU).
• Shipping Weight: 1.146 kg (2.5 lb)
• Container Size: 27.94 cm x 35.56 cm x 5.54 cm (11 in. x 14 in. x 3 in.)
