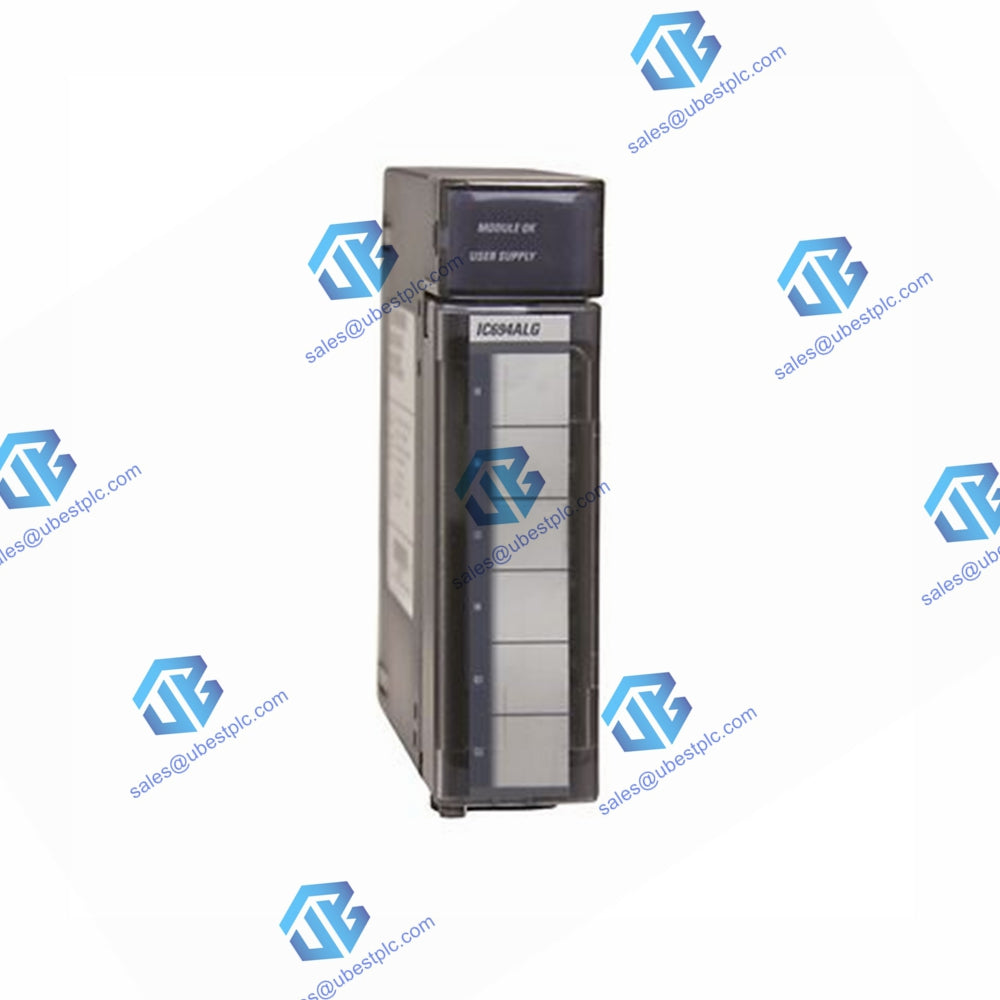

IC694ALG222 GE Fanuc - RX3i Analog Input Module
Manufacturer:
GE
Product No.:
IC694ALG222
Condition:
In Stock
Product Type:
RX3i Analog Input Module
Product Origin:
USA
Weight:
200g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Overview
The IC694ALG222 module provides 16 single-ended or 8 differential input channels, configurable for 0-10V or ±10V ranges. High and Low alarm limits are configurable.
Features
Isolated +24 VDC Power: Required for Universal Backplane; provided by Expansion Backplane power supply.

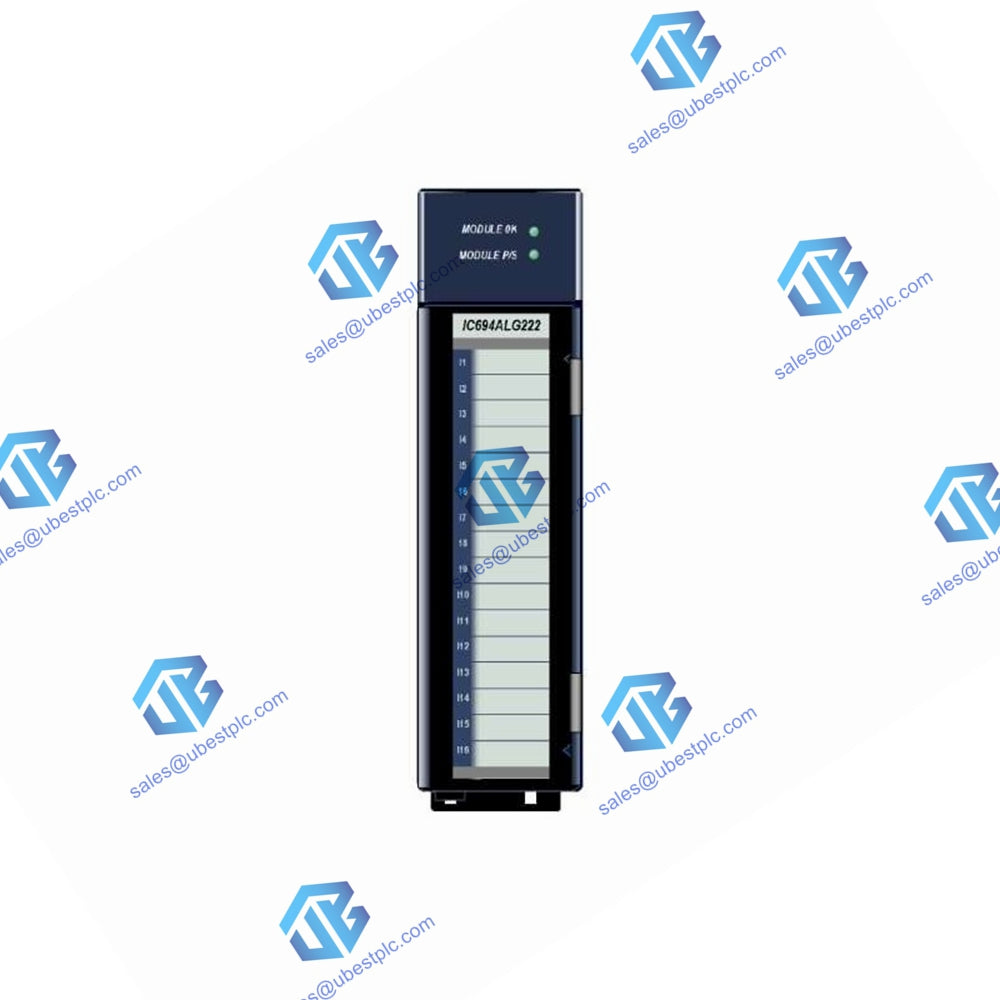

LED Indicators:
- MODULE OK: Status OK or fault indication
- Module P/S: Internal +5 VDC supply status
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 16 single-ended / 8 differential |
| Input Ranges | 0-10V (unipolar) / ±10V (bipolar) |
| Resolution | 2.5 mV (unipolar) / 5 mV (bipolar) |
| Update Rate | 6 ms (16 channels) / 3 ms (8 channels) |
| Accuracy | ±0.25% FS @ 25°C |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Power Consumption | 112 mA @ 5 VDC; 41 mA @ 24 VDC |
Configuration
- Channels: 1-16 (single-ended) / 1-8 (differential)
- Mode: Single-ended (default) / Differential
- Range: 0-10V (default) / ±10V
- Alarms: Configurable high/low limits per channel
