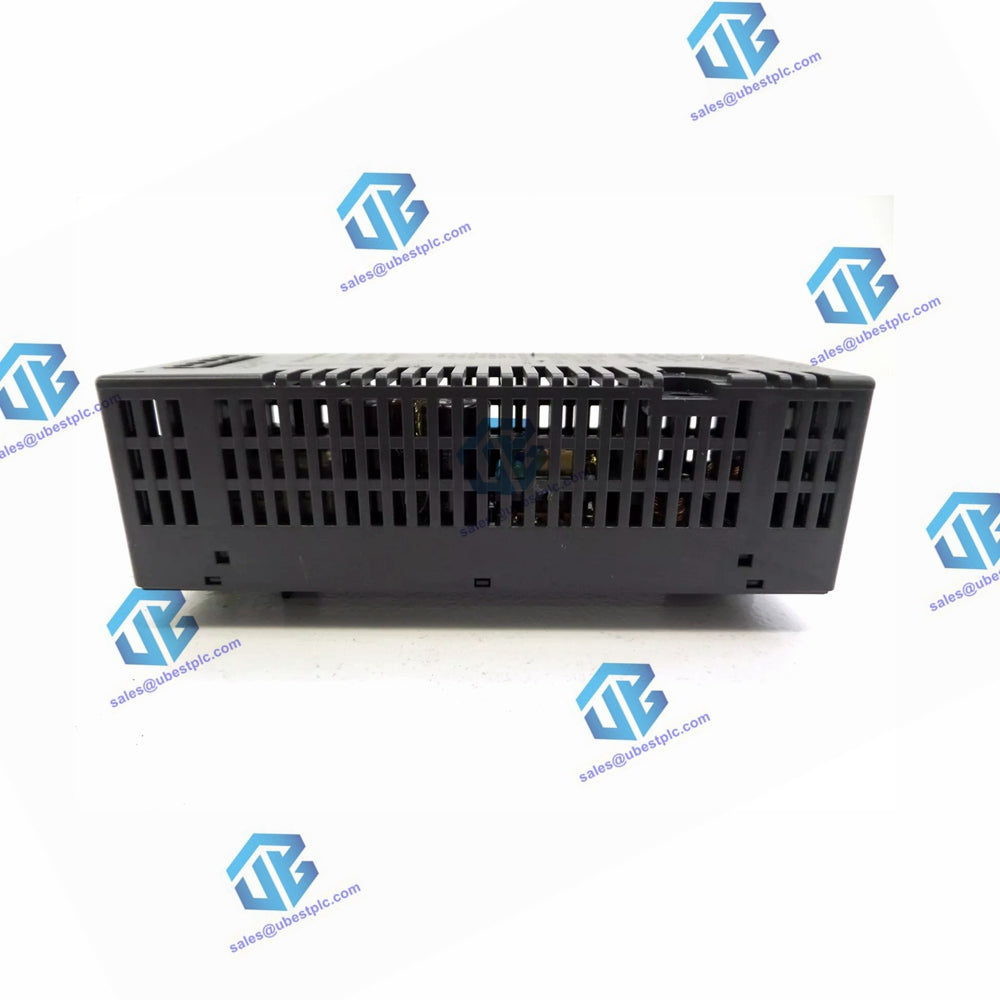

The IC200PWR102 is an expanded 120/240VAC power supply that provides backplane power for CPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 Volt and 5 Volt outputs, with up to 1.0 Amp on the 3.3V output.
When mounted on the CPU or NIU module, this power supply serves as the main power supply for the station. It can also be used as a supplemental power supply when mounted on a Power Supply Booster Carrier.
Specifications
Input Voltage:
85 to 132 VAC with jumper installed, 120VAC nominal
176 to 264 VAC without jumper installed, 240VAC nominal
Input Power: 27VA
Frequency: 47 to 63 Hz
Holdup Time: 20 ms
Output Voltage:
5 VDC
3.3 VDC
Protection: Short circuit, overload
Output Current:
Total: 1.5A maximum
3.3VDC Output: 1.0A maximum
5VDC Output: (1.5A - I<sub>3.3V</sub>) maximum
Note: The total output current should not exceed 1.5A. For example, if 3.3V @ 1.0A is required, 0.5A is available on the 5V output.
