Honeywell FSC 10101/2/2 Fail-safe Digital Input Module (60 Vdc, 16 channels)

Description

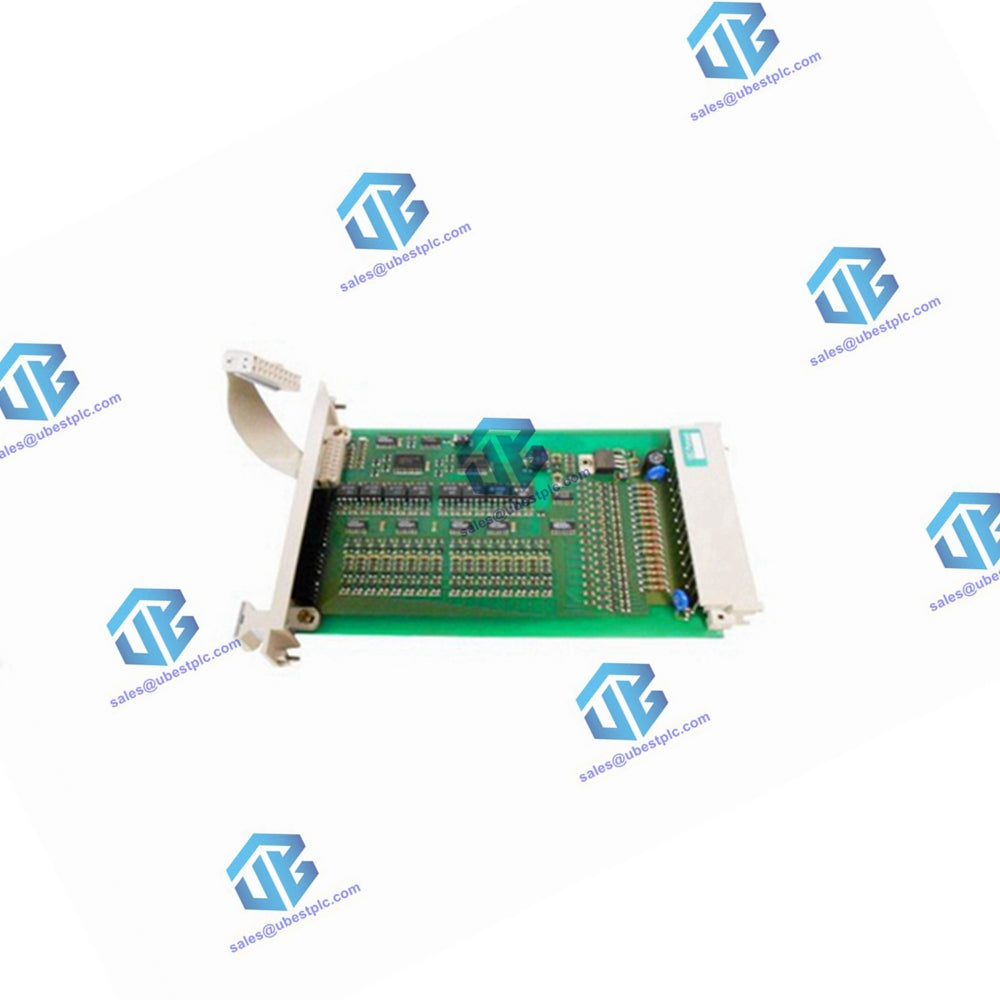

The Honeywell FSC 10101/2/2 Fail-safe Digital Input Module is designed with sixteen 60 Vdc digital input channels and operates with an internal supply voltage of 24 Vdc. The module is built with a 'fail-to-safe' input stage, ensuring that any component failure results in a de-energized input signal to the processor, maintaining safety in a normally energized system.

The module's remaining logic circuitry is fully covered by the system's self-test functions. Within the configured process safety time, the module is tested for the following:

• Ability to receive logic level '0' signals.
• Ability to receive logic level '1' signals.
• Crosstalk between inputs.

Technical Specifications

• Type Number: 10101/2/2
• Approvals: CE, TÜV, UL
• Software Versions: ≥ 3.00
• Space Requirements: 4 TE, 3 HE (= 4 HP, 3U)

Power Requirements

• 5 Vdc: 8 mA
• 24 Vdc internal: 80 mA
• 60 Vdc external: 55 mA (input currents)
• Ripple Content (on 5 Vdc): < 0.5 Vp-p (0-360 Hz)

Fuse Specifications

• Value: 1x 100 mA
• Type: Round, TR5-F/19370K
• Dimensions: ∅ 8.2 mm (0.32 in), height 7.7 mm (0.3 in)

Input Specifications

• Number of Input Channels: 16
• Maximum Input Voltage: 85 Vdc
• Input Current: 3.3 mA at 60 Vdc
• Input HIGH: > 40 Vdc
• Input LOW: < 20 Vdc (I < 1 mA)
• Input Delay: Typically 10 ms
