Technical Specifications:
Product Type:
Digital Output Module

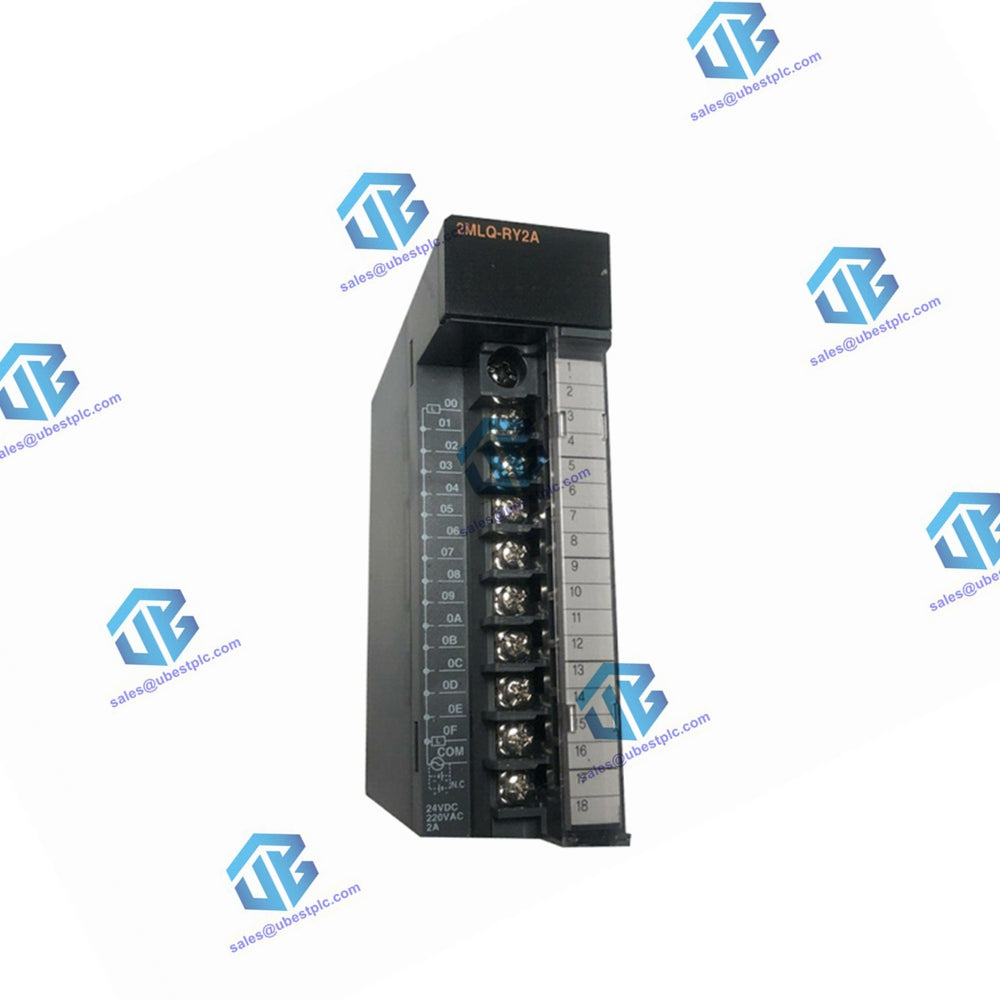

2MLQ-RY2A – 16 Point Relay Output Module Specifications
| Specification |
Details |
| Model |
2MLQ-RY2A |
| Output Points |
16 |
| Isolation Method |
Relay isolation |
| Rated Load Voltage/Current |
DC24V 2A (resistive load) / AC220V 2A (COSϴ = 1) |
| Minimum Load Voltage/Current |
DC5V / 1mA |
| Maximum Load Voltage/Current |
AC250V, DC125V |
| Off Leakage Current |
0.1mA (AC220V, 60Hz) |
| Maximum On/Off Frequency |
3,600 times/hr |
| Surge Absorber |
None |
| Mechanical Service Life |
20 million times or more |
| Rated Load Voltage/Current Electrical Service Life |
100,000 times or more |
| AC200V / 1.5A, AC240V / 1A (COSϴ = 0.7) |
100,000 times or more |
| AC200V / 1A, AC240V / 0.5A (COSϴ = 0.35) |
100,000 times or more |
| DC24V / 1A, DC100V / 0.1A (L / R = 7ms) |
100,000 times or more |
| Response Time (Off → On) |
10 ms or less |
| Response Time (On → Off) |
12 ms or less |
| Common Method |
16 point / 1 COM |
| Current Consumption |
500mA (when all points On) |
| Operation Indicator |
Output On, LED On |
| External Connection Method |
18 point terminal block connector (M3 X 6 screw) |
| Weight |
0.17 kg |
