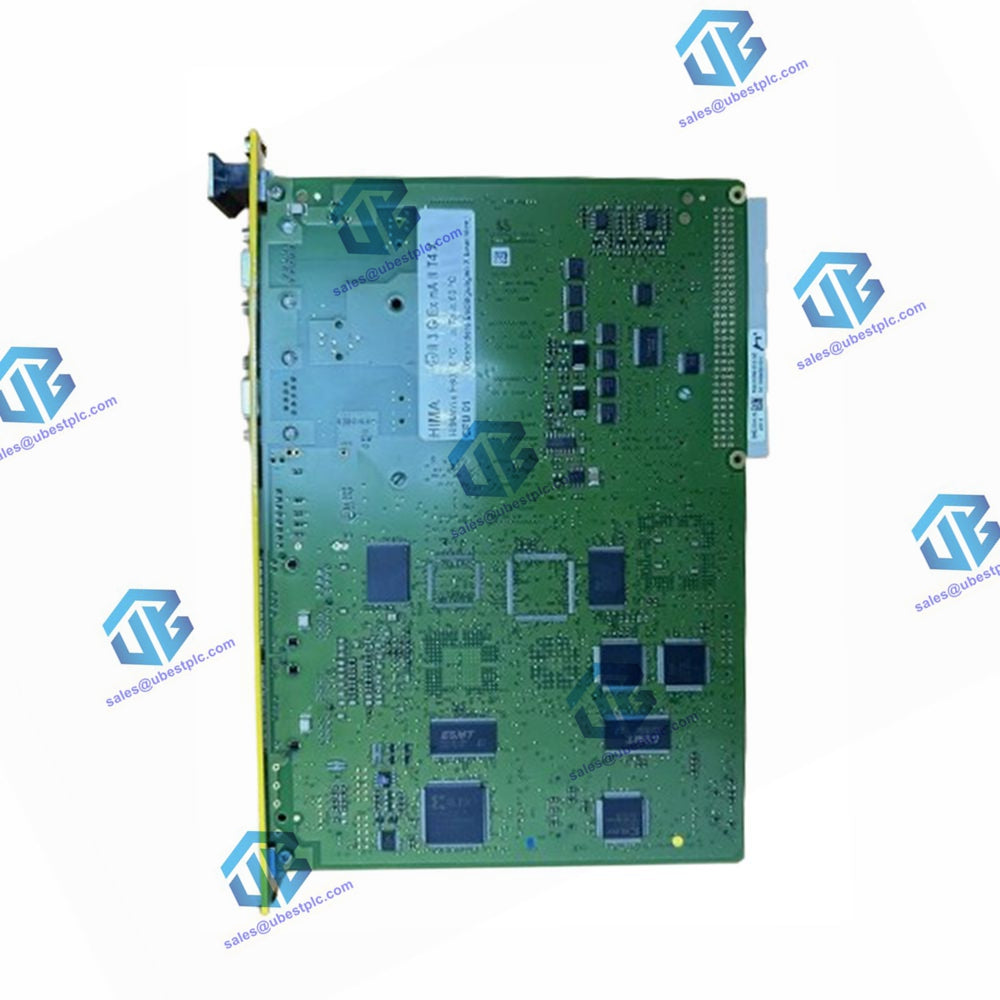

HIMA HIMATRIX F60 CPU 01 Central Module

Introduction

The HIMA HIMatrix F60 CPU 01 is a central module within the HIMatrix safety-related controller system. This document outlines its key features, technical specifications, and operational guidelines.

Product Description

CPU 01 Module:

• Central component of the HIMatrix F60 controller
• Executes all central functions including communication with PADT and other systems
• Monitors operating voltage and temperature

Safety Certifications:

• Certified by TÜV for safety-related applications up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat. 4 and PL e (EN ISO 13849-1), and SIL 4 (EN 50126, EN 50128, EN 129)

Key Features

• Safety Function: Monitors the sequence and logical execution of the operating system and user program

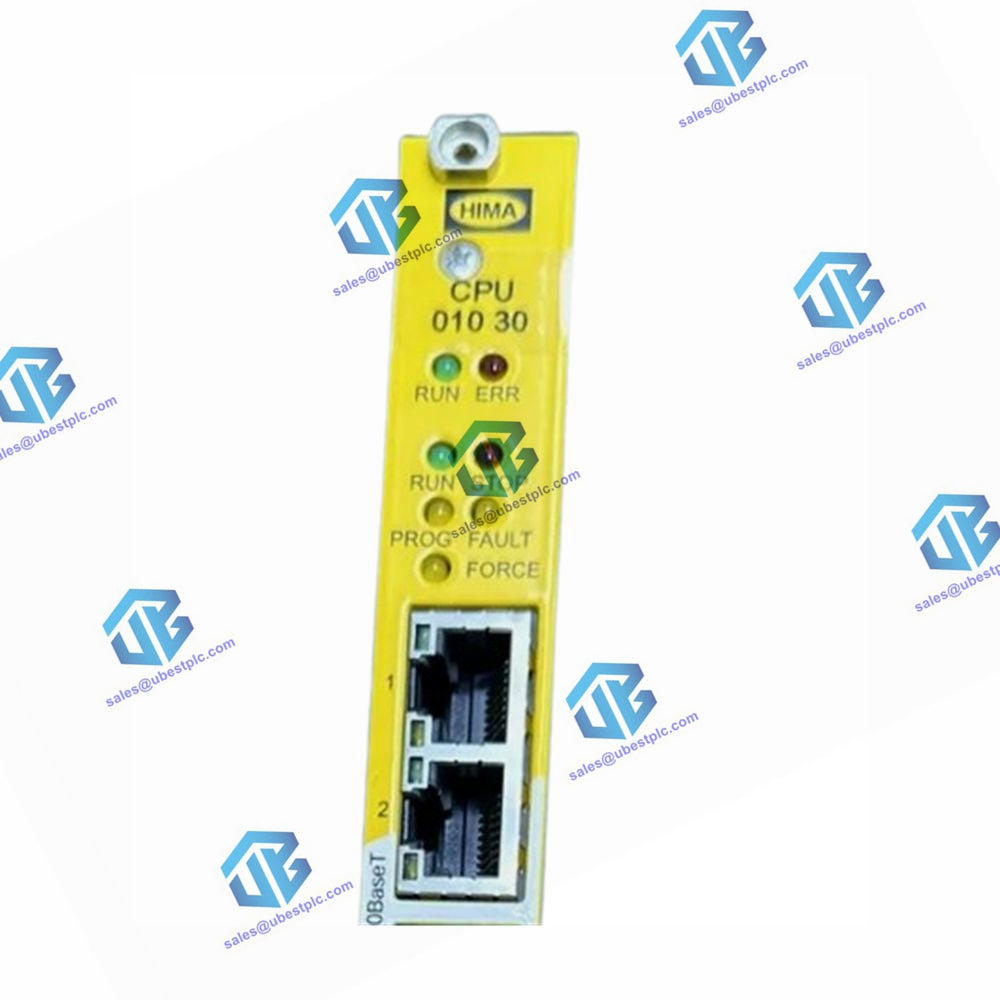

• LED Indicators: Provides status information through various LEDs indicating system, program, communication, and fieldbus statuses
• Operating System: Supports SILworX and ELOP II Factory programming tools depending on the CPU OS version

Technical Specifications

Environmental Requirements:

• Protection class: III (IEC/EN 61131-2)
• Ambient temperature: 0...+60 °C
• Storage temperature: -40...+85 °C
• Pollution degree: II (IEC/EN 61131-2)
• Altitude: <2000 m
• Housing: Standard IP20
• Supply voltage: 24 VDC

Module Structure:

• Block Diagram Components:
  • Communication System
  • Dual Port RAM
  • I/O Bus Module
  • Program Memory
  • Data Memory in NVRAM
  • Watchdog
  • Safety-Related Processor System

Installation and Configuration

Mounting and Removing:

• The module should be inserted in the slot next to the power supply module in the HIMatrix F60 subrack

Configuration:

• SILworX Tool: For CPU OS V7 and higher
• ELOP II Factory: For CPU OS up to V6.x

Communication:

• Connections for Ethernet and Fieldbus communication
• Network ports used for Ethernet communication

Safety and Maintenance

Safety Precautions:

• Adhere to all local safety requirements
• Ensure protective equipment is used as required

ESD Protective Measures:

• Only personnel knowledgeable in ESD protective measures should modify or extend the system

Maintenance:

• Regular proof tests and operating system updates
• Diagnosis and handling of faults as specified in the manual

Emergency Information:

• The HIMatrix system enters a safe state in case of device or module failure

Additional Information

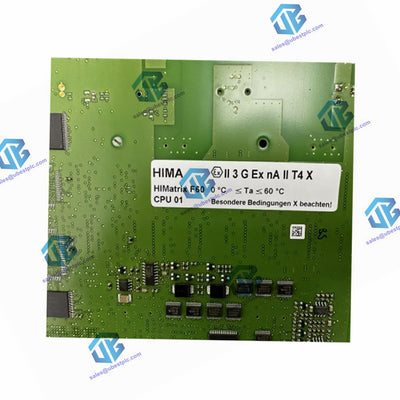

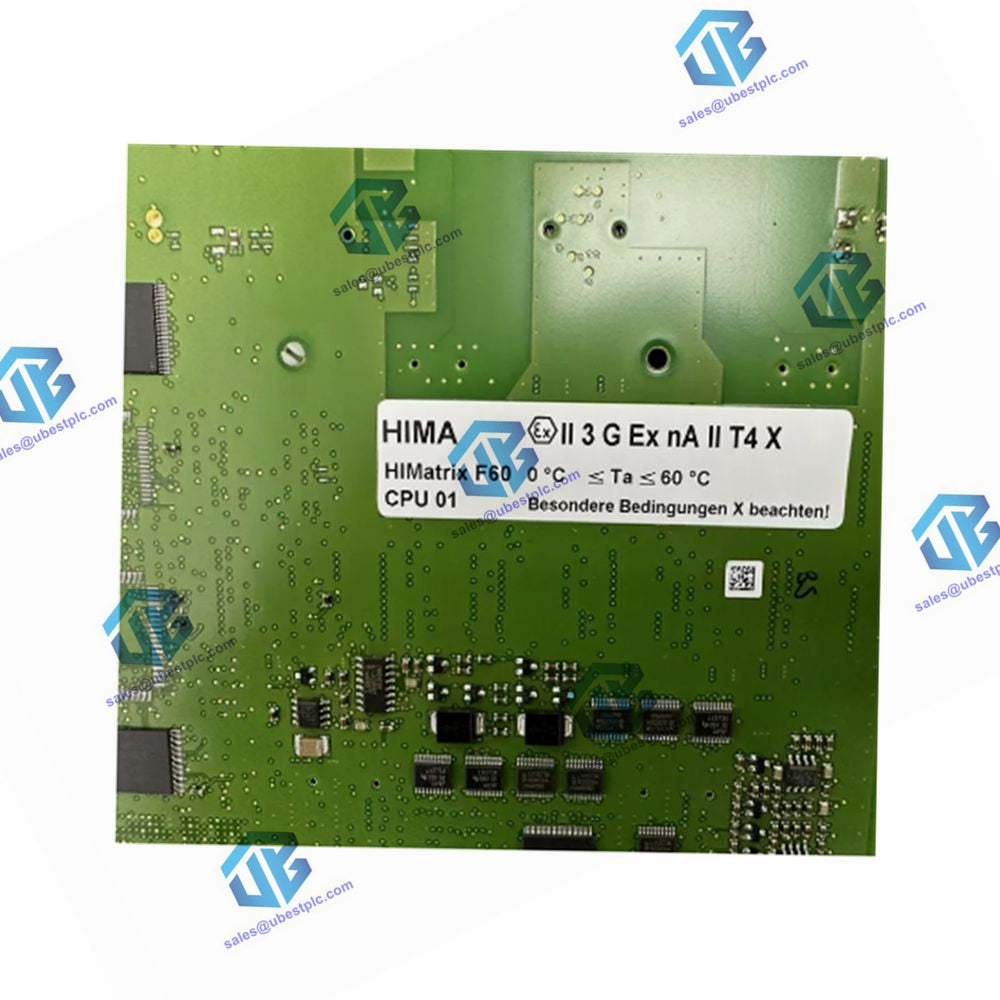

Type Label Details:

• Includes product name, bar code, part number, production year, hardware revision index, firmware revision index, operating voltage, and mark of conformity

Scope of Delivery:

• Includes variants for different programming tools (CPU 01 for ELOP II Factory and CPU 01 SILworX for SILworX)
