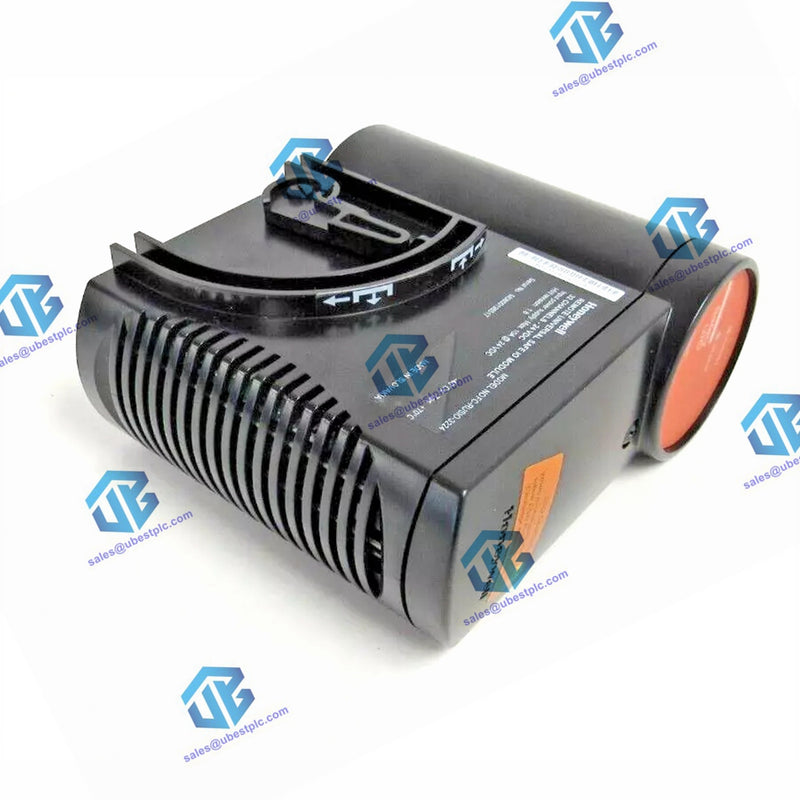

FC-RUSIO-3224 Universal Safe IO Device

Overview: The FC-RUSIO-3224 module is a universal safe IO device featuring 32 channels operating at 24 V DC, configurable for various functions through Safety Builder. It complies with SIL 3 safety requirements according to IEC 61508/61511 standards, making it ideal for critical applications.

Features:

• Universal IO Channels: 32 configurable channels for digital input, digital output, analog input, or analog output.
• Redundant Configuration: Requires two modules for redundancy, ensuring reliability.
• Ethernet Communication: Supports two 100Mbaud Ethernet links for communication with a Safety Manager Controller.
• Patented Design: Uses Honeywell’s patented Series C design, mountable on an IO Termination Assembly (IOTA).
• SIL 3 Compliance: Adheres to SIL 3 safety requirements with a proven-in-use redundant processor.
• ESD Functionality: Configurable ESD function via channel 32 for dedicated safety-related functions.
• Watchdog Function: Monitors cycle time, supply voltage, handles ESD function, and memory errors.

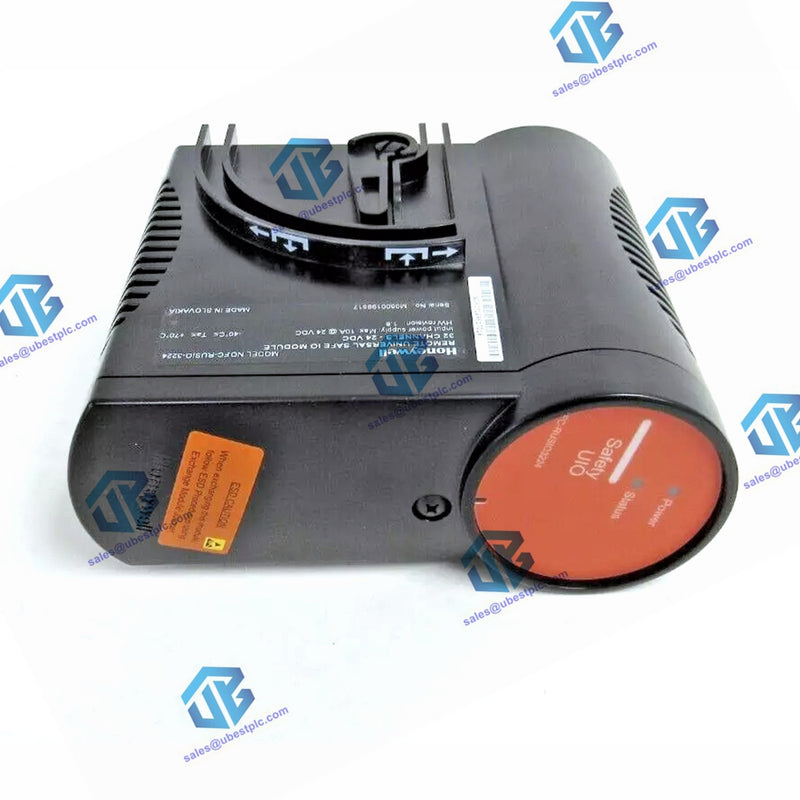

• LED Indicators: Front-facing LEDs indicate power and health status.
• Real-Time Clock: Provides Sequence Of Event (SOE) time stamping with 1 msec resolution.

Functionality:

• Executes input scan of process variables and hardware functional tests.
• Facilitates data exchange with partner module and Safety Manager Controller.
• Controls outputs and updates the process.
• Functions as part of the Safety Manager universal IO module within the Safety Manager concept.

Technical Specifications:

Operating Conditions:

• Outside Module Temperature: -40°C to +70°C (-40°F to +158°F)
• Inside Module Temperature: -40°C to +90°C (-40°F to +194°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 10% to 95% (non-condensing)
• Pollution: Pollution degree 2 or better
• Approvals: CE, UL, TÜV

Power:

• Supply Voltage: 24 V DC (-15% to +30%)
• Supply Current: Max 300 mA (without field load)

IO Channels:

• 32 channels, configurable as digital input, ESD input, analog input, digital output, with or without line monitoring.
• Maximum Combined Load: 9 A
• Maximum Field Capacitance: 100 nF (for AI/DI/AO channels), 1 μF (for DO channels)

Physical Specifications:

• Dimensions: 145 x 165.1 x 72.4 mm (H x W x D)
• Weight: 0.66 kg (1.45 lbs)

The FC-RUSIO-3224 offers a robust and flexible solution for universal IO applications in safety-critical environments, ensuring reliability and compliance with international safety standards.
