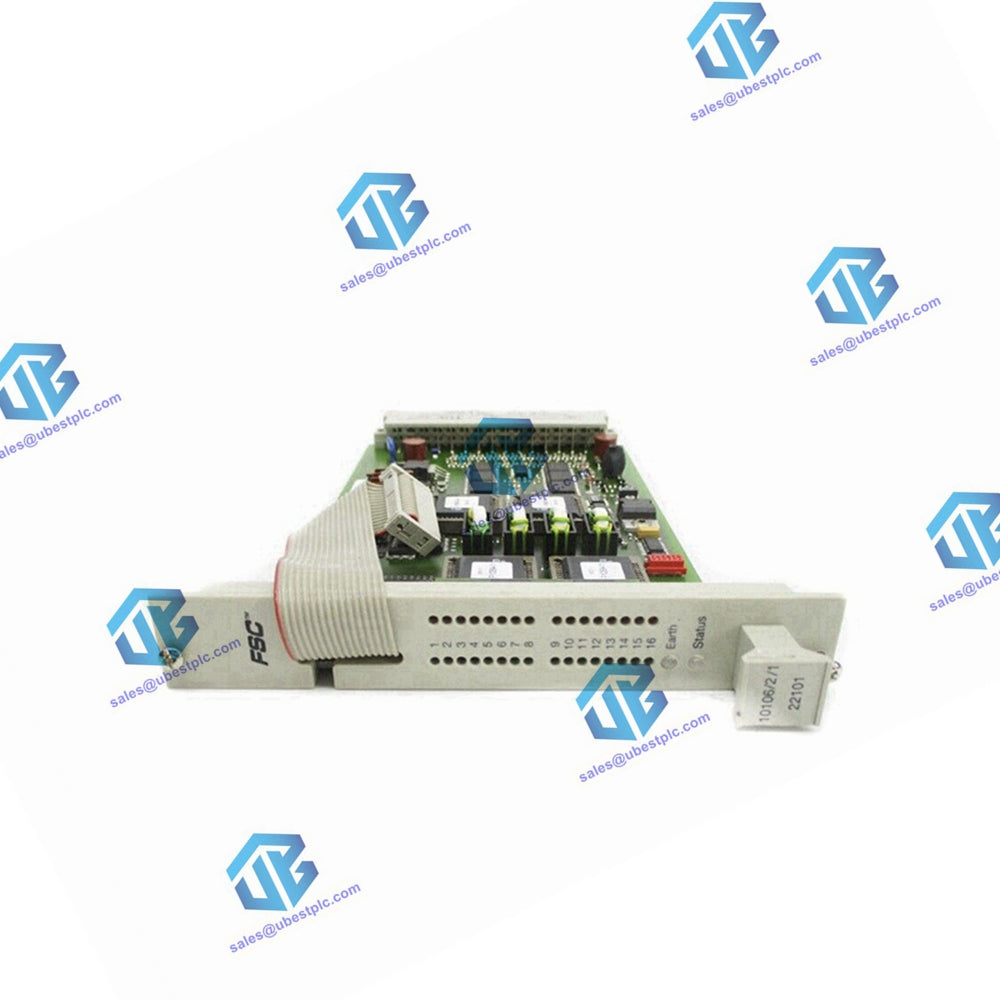

Honeywell 10102/2/1 Fail Safe Analog Input Module

Description

The Honeywell 10102/2/1 Fail-safe Analog Input Module is designed with four 0-2 V analog input channels. These inputs share a common 0 V connection but are galvanically isolated from both the 24 Vdc and 5 Vdc power supplies. The module can be used either actively, where each input has a separate 26 Vdc, >20 mA short-circuit protected output, or passively, with the supply directly connected to the transmitter. High input impedance allows two 10102/2/1 modules to be connected in parallel, requiring an analog input converter module 10102/A/​.

Technical Specifications

• Number of Input Channels: 4
• Input Specification: 0-2 Vdc
• Input Resistance: >100 kOhm
• Loop Powering: 26 Vdc (±1 V for 0.2 mA < I < 20 mA), short-circuit protected
• Loop Current Limit: >21 mA solid state
• A/D Converter: 12-bit
• Inaccuracy: ≤ 0.75%
• Absolute Maximum Input Signal: ±5 Vdc
• Key Coding:
  • Module Connector Code: Holes A5, C17
  • Rack Connector Code: Large pins A5, C17
• Power Requirements: 5 Vdc, 30 mA; 24 Vdc, 175 mA + 25 mA for each active input .
