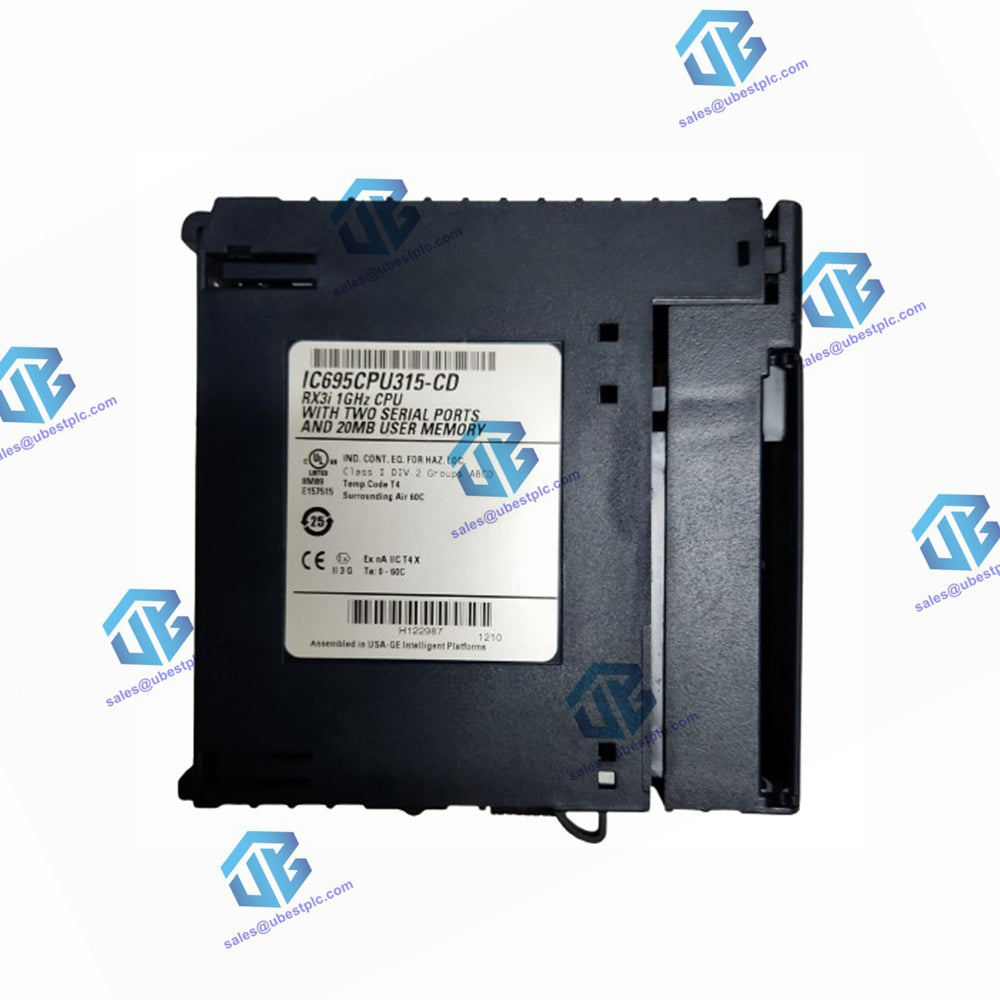

IC695CPU315 GE Fanuc RX3i CPU Module
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
IC695CPU315 High-Performance CPU
Overview
The IC695CPU315 high-performance CPU is based on the latest technology processor, offering fast computation and high throughput. It features a controller capable of managing up to 32K of I/O in various standard languages. The powerful CPU is designed to solve complex applications efficiently, supported by a high-performance processor and up to 64 Mbytes of user memory. The RX3i system supports multiple IEC languages and C programming, providing program flexibility. Additionally, the RX3i improves machine cycle times, reduces downtime with extensive diagnostics and hot swap capability, and allows large data storage to minimize external hardware costs.
CPUs Overview
| Features | IC695CPU315 RX3i CPU with two built-in serial ports |
|---|---|
| Product Name | IC695CPU315 RX3i CPU with two built-in serial ports |
| Lifecycle Status | Mature with replacement |
| Module Type | Controller |
| Backplane Support | Universal Backplane Only. Uses PCI Bus. |
| Boolean Execution Speed (ms/K) | 0.047 |
| User Logic Memory | 20Meg bytes |
| Battery Backed Real Time Clock | Yes |
| Dynamic Data Back-up | Battery Backup only |
| I/O Discrete Points | 32K |
| I/O Analog Points | 32K |
| Type of Memory Storage | SRAM, Flash |
| Processor Speed (MHz) | 1GHz |
| USB-A 2.0 Master Port | No |
| Built-in Ethernet Ports | No |

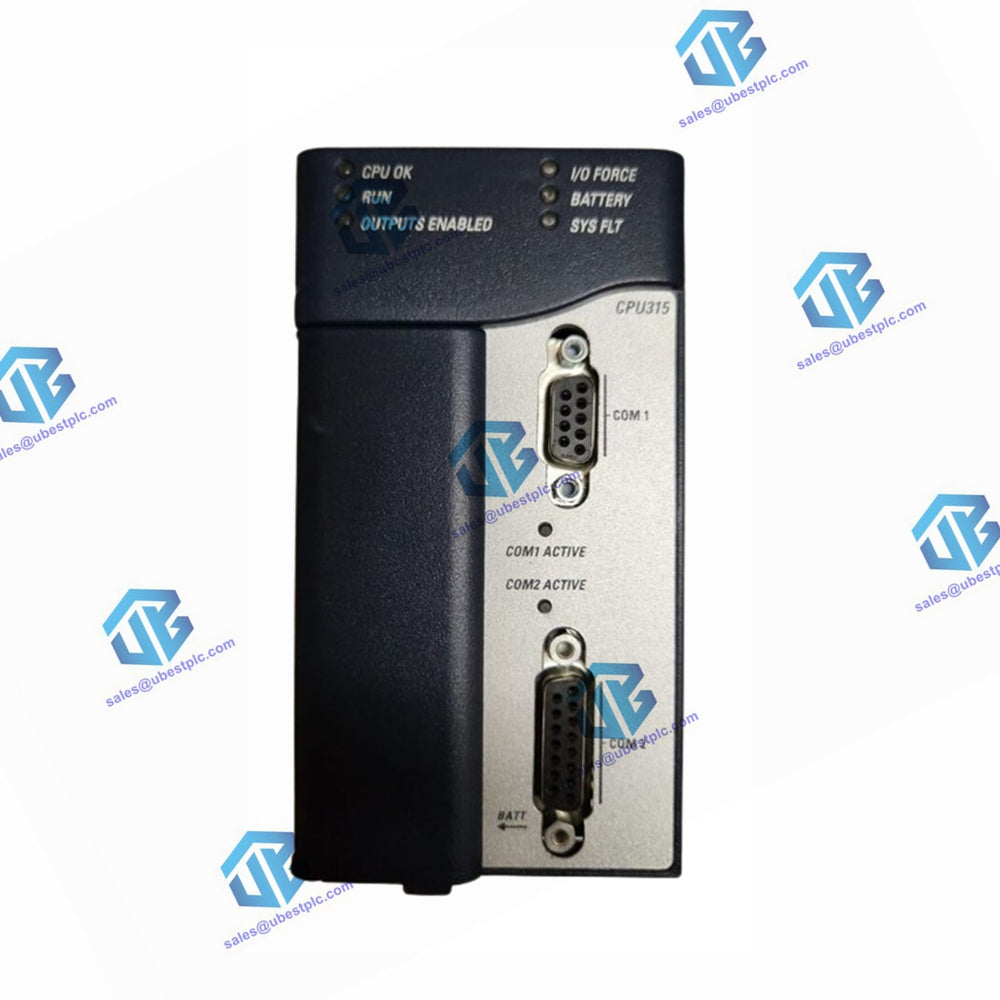

| Built-in Serial Ports | One RS-485 port and one RS-232 port. Supports SNP, Serial I/O, Modbus Slave, and Modbus Master (Application code) |
| Total Number of Local Racks | 8 |
| Communications Options | Serial, Genius, CMX (Reflective Memory), Ethernet |
| Supported IO Protocols | Ethernet (PROFINET, Ethernet Global Data, Channels, Modbus TCP Server and Client), Genius, PROFIBUS DP, DeviceNet |
| Software Programming Support | Machine Edition Logic Developer Professional edition 5.6 or above |
| Program Languages Supported | Ladder Logic, Structured Text, C, Function Block Diagram |
| Internal Power Used | +3.3 VDC: 1.0 A, +5 VDC: 1.0 A, +24 VDC: 0.5A at startup, 0.1 A during run time (Applies only if Energy Pack is connected) |
| Number of Slots Module Occupies on Backplane | 2 |
| HART Pass-through | Fully integrated into the PLC system over a monitored communications network, allowing secure remote access to HART instruments without additional equipment |
