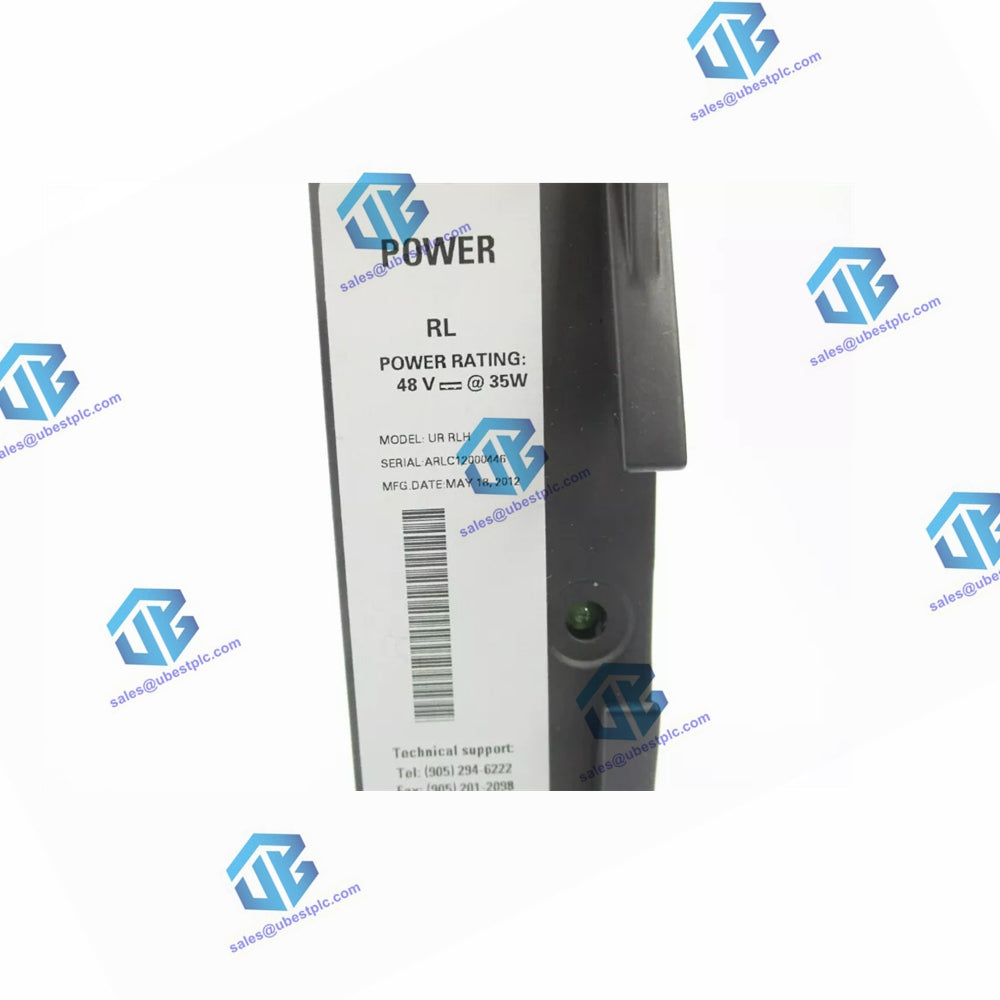

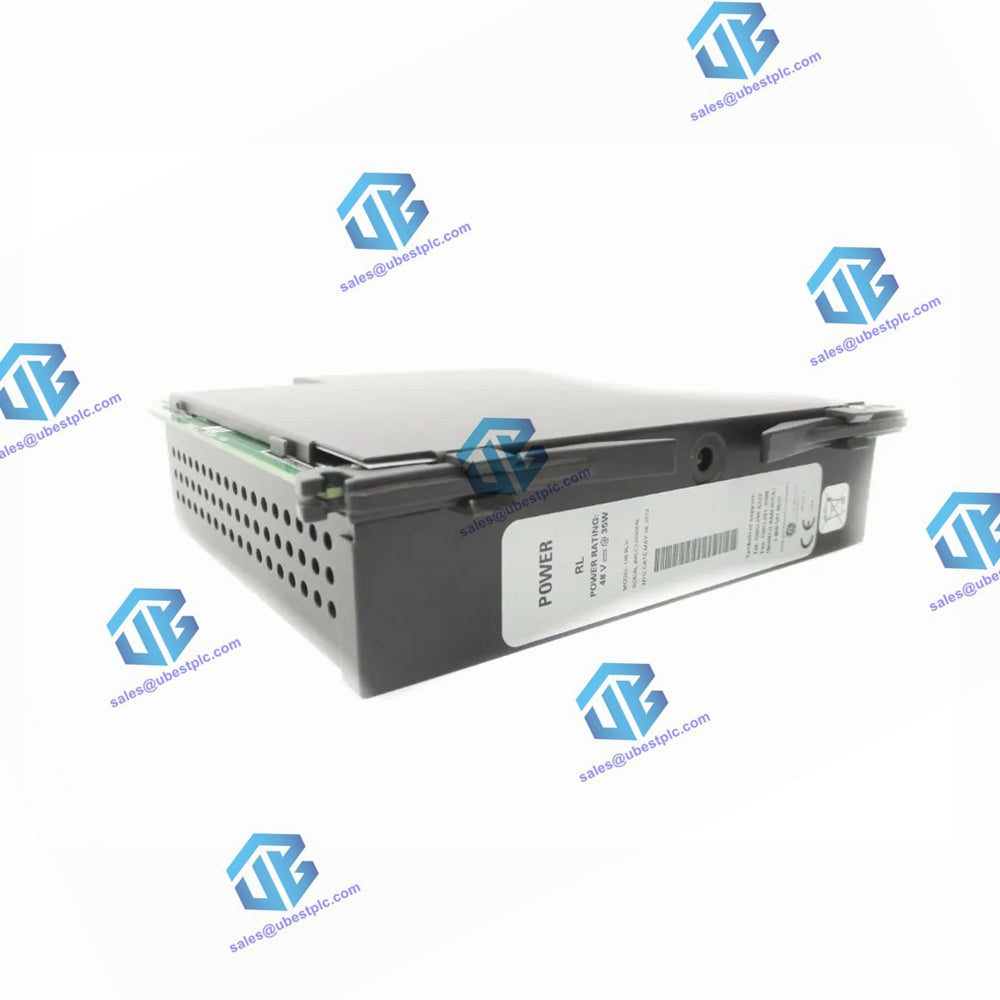

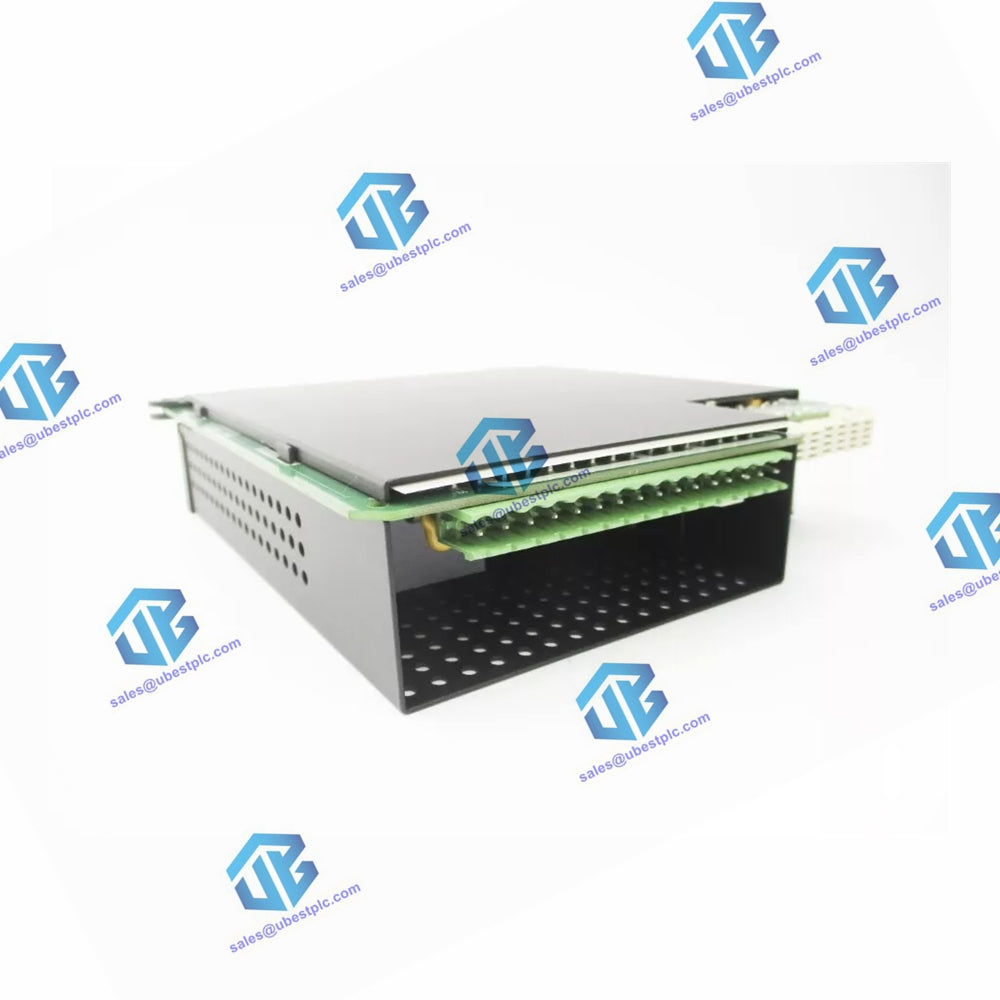

URRLH | GE Multilin UR-RLH Power Supply Module

GE Multilin UR-RLH Description

General Electric Multilin's UR-RLH is a low-power power supply module designed for use in the Universal Relays series. This module operates within a nominal range of 24 to 48 V DC, providing essential power input to the relay and its dry contact input connections. Additionally, it houses the battery for the Universal Relay, necessitating its removal and replacement during battery changes.

Technical Specifications

• Manufacturer: General Electric Multilin (GE)
• Weight: Approx. 2 lb, 2 oz
• Dimensions: Approx. 6.5” L x 6.5” W x 1.75” H
• Software: EnerVista
• Part Number: UR-RLH
• SKU: URRLHGM
• Series: UR Series Universal Relays

Features

1. Power Supply Range: The UR-RLH operates within a nominal voltage range of 24 to 48 V DC, identified as a low voltage range module.

2. Critical Failure Relay Element: The module includes a form-C relay that energizes upon successful system boot, ensuring no self-test failures and proper control power application. It de-energizes in case of a critical failure during operation or loss of control power.

3. Battery Housing: The UR-RLH houses the battery for the Universal Relay, requiring removal and replacement during battery maintenance.

4. Compatibility: It is compatible with other modules in the Universal Relays series, such as the CPU module, CT/VT module, digital input/output module, transducer input/output module, and inter-relay communications.

Frequently Asked Questions

Q: What type of power supply is a General Electric UR-RLH UR series Multilin power supply?

A: The UR-RLH is a second-generation Multilin power supply module, designated as UR-RH. It replaced the first-generation modules (UR-1H). In 2014, the third generation (UR-SH) was introduced, designed to replace the earlier generations while maintaining compatibility with the same Universal Relays series.

Q: What type of voltage range does the UR-RLH power supply module have?

A: The UR-RLH has a low voltage range (24 to 48 V DC), as indicated by the ‘L’ in the part number. High power supply modules have voltage ranges of 125-250 V AC/DC for the first and second generations, and 125-300 V AC/DC for the third generation (UR-SH).

Q: What is the isolation voltage level for the UR-RLH GE Multilin power supply module?

A: For the second generation, the isolation voltage level is 2000 V AC, with an output power of 35 W. The third generation (UR-SH) modules have an increased isolation voltage level of 2300 V AC and an output power of 45 W.
