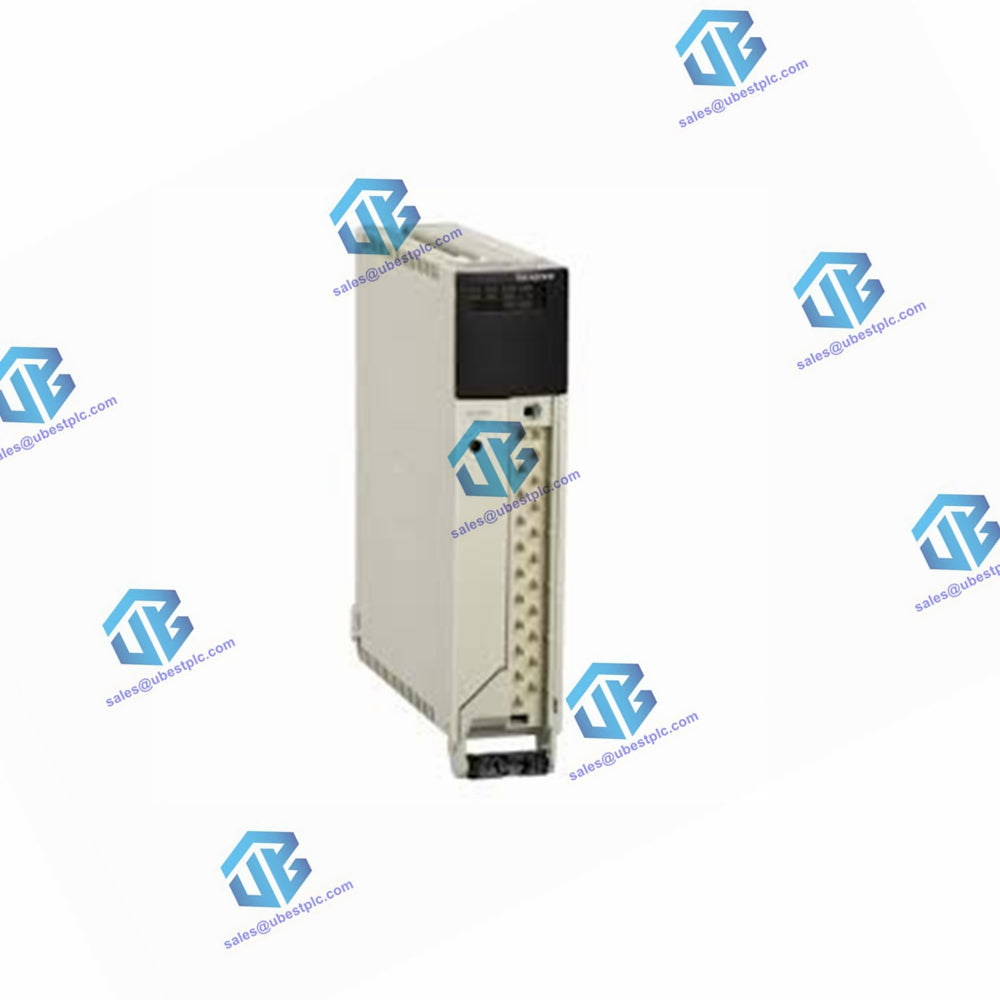

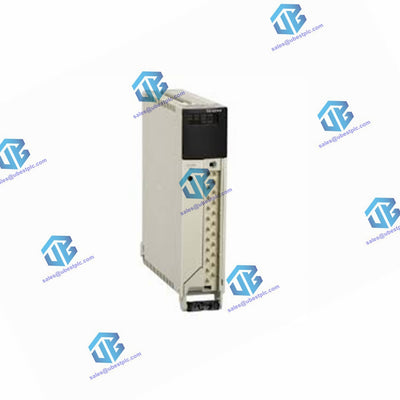

Technical Specifications:
Product Type:

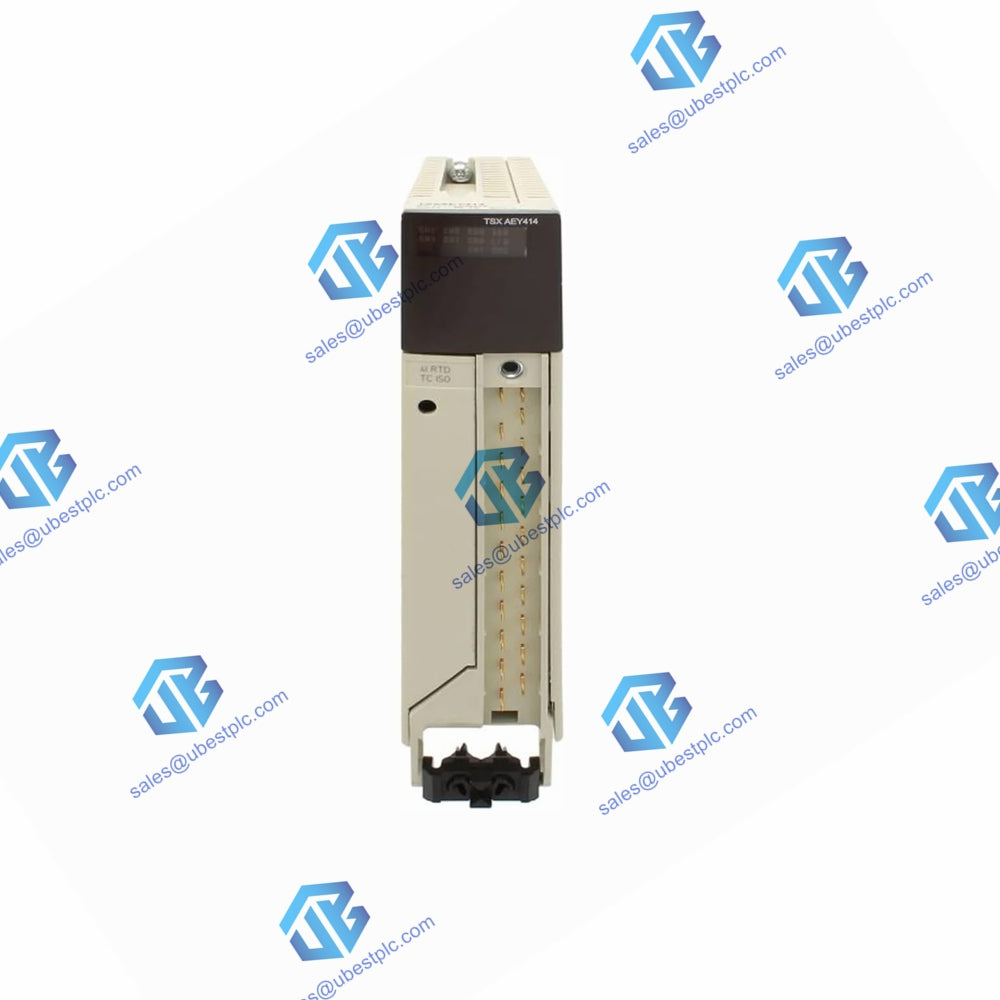

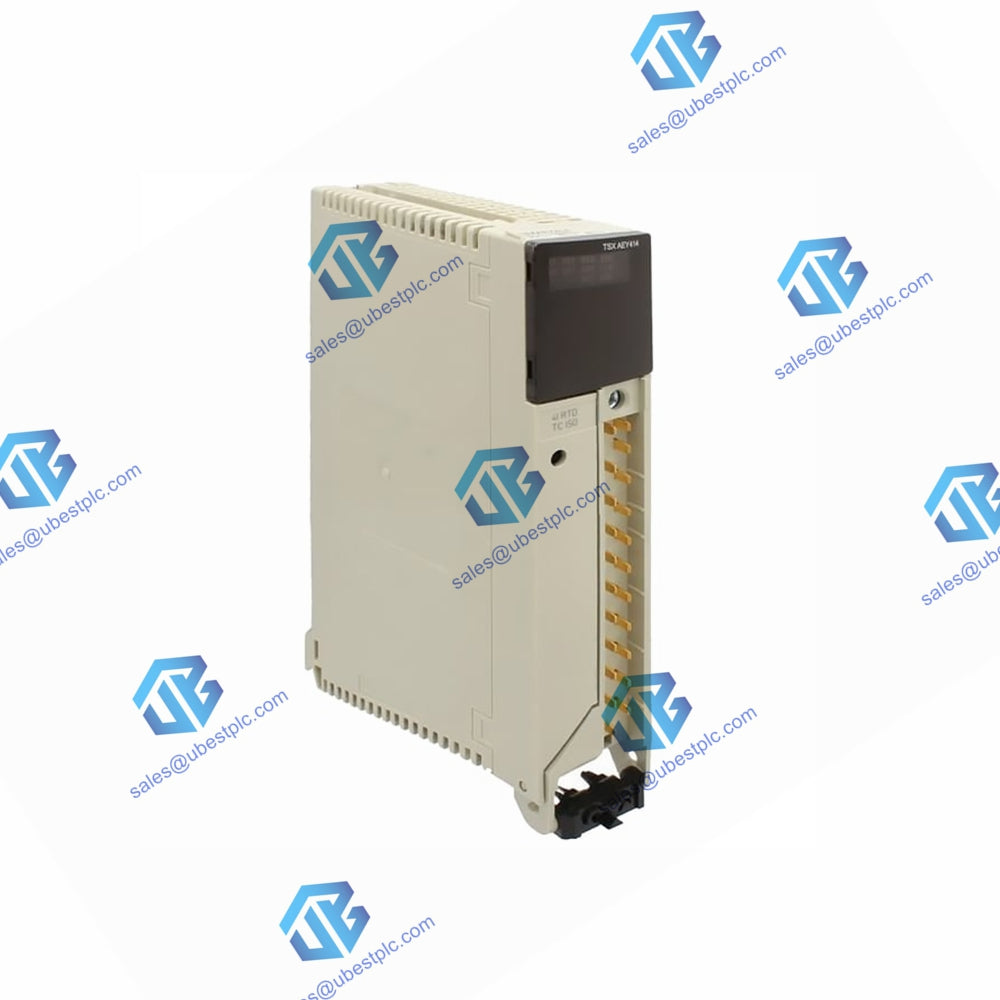

Analog Input Module
🔧 Product Model and Type
| Product Model |
TSXAEY414 |
| Range of Product |
Modicon Premium Automation Platform |
| Product Type |
Analog Input Module |
| Input Level |
Low Level |
⚡ Electrical and Input Specifications
| Analog Input Type |
Current: 4...20 mA, Voltage: +/- 10 V, 0...10 V, 0...5 V, 1...5 V, Thermocouples, Resistors, Temperature Probes |
| Analog/Digital Conversion |
16 bits |
| Nominal Read Cycle Time |
550 ms |
| Measurement Error |
0.1% to 1.5 °C for various thermocouples and full scale measurements |
🔋 Isolation and Protection
| Isolation Between Channels and Bus |
1780 Vrms |
| Isolation Between Channels |
2830 Vrms |
| Common Mode Between Channels |
415 V AC or 200 V DC |
| Input Overvoltage Protection |
-15…15 V at state 0, -30…30 V at state 1 (250 Ohm) |
📏 Physical and Environmental Specifications
| Operating Temperature |
0…60 °C |
| Storage Temperature |
-25…70 °C |
| Relative Humidity |
10…95% for operation, 5…95% for storage |
| Operating Altitude |
0...2000 m |
⚙️ Certifications and Standards
| Certifications |
DNV, BV, ABS, RMRS, RINA, GL, LR |
| Standards |
IEC 1131, DIN 43760, IEC 584, IEC 751 |
| Protection Degree |
IP20 |
| Pollution Degree |
2 |
📦 Packing and Shipping Details
| Package Type |
PCE |
| Number of Units |
1 |
| Package Dimensions |
Height: 5.5 cm, Width: 18.0 cm, Length: 26.0 cm |
| Package Weight |
455.0 g |
🔧 New Parameters
| Current Consumption |
660 mA at 5 V DC |
| Common Mode Between Channels and Earth |
240 V AC or 110 V DC |
| Electrical Connection |
Screw terminal block |
| Overcurrent Protection |
-30…30 mA at state 1 (250 kOhm) |
| Marking |
CE |
