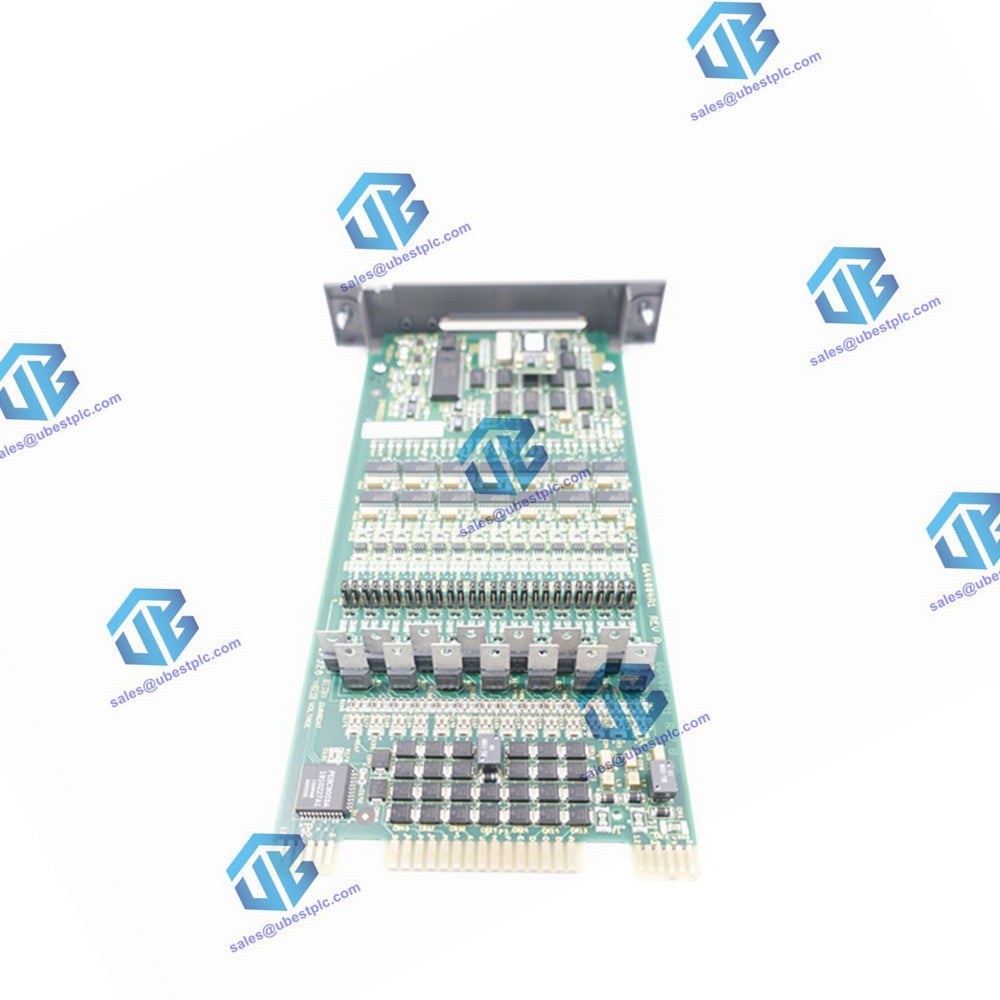

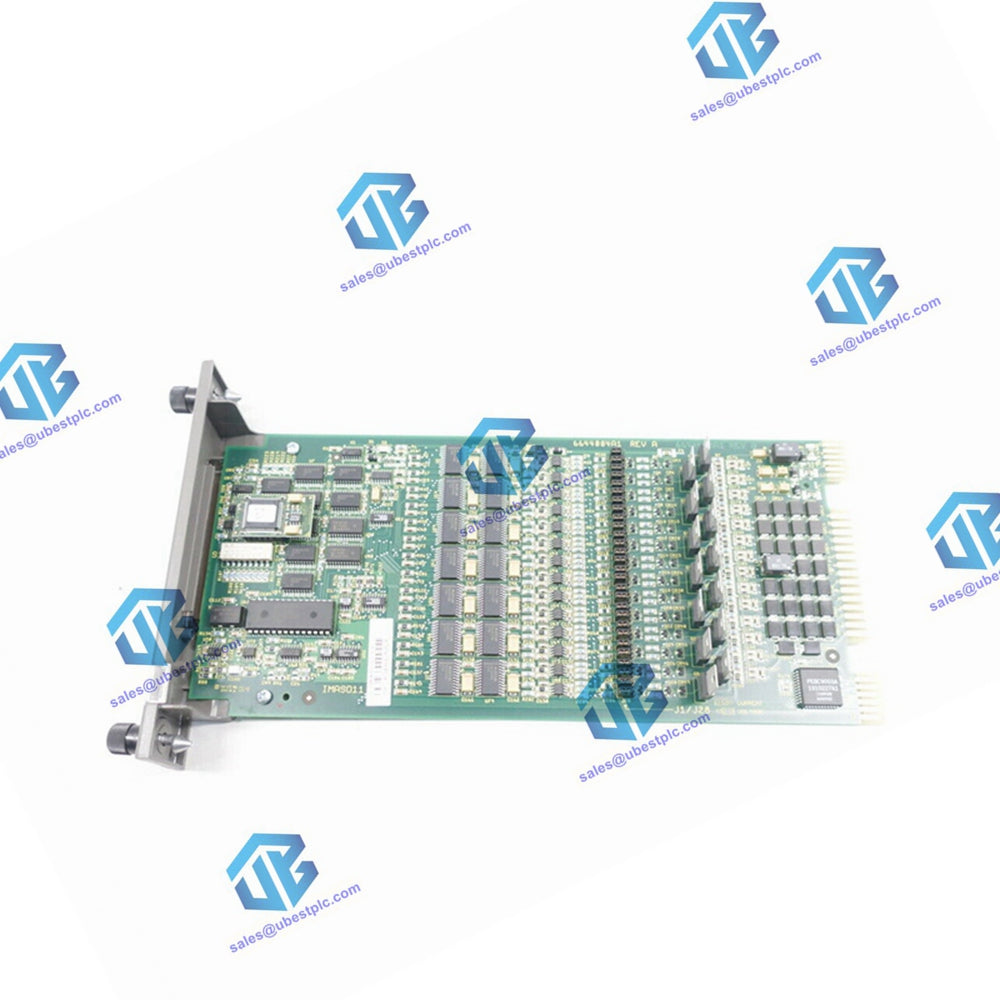

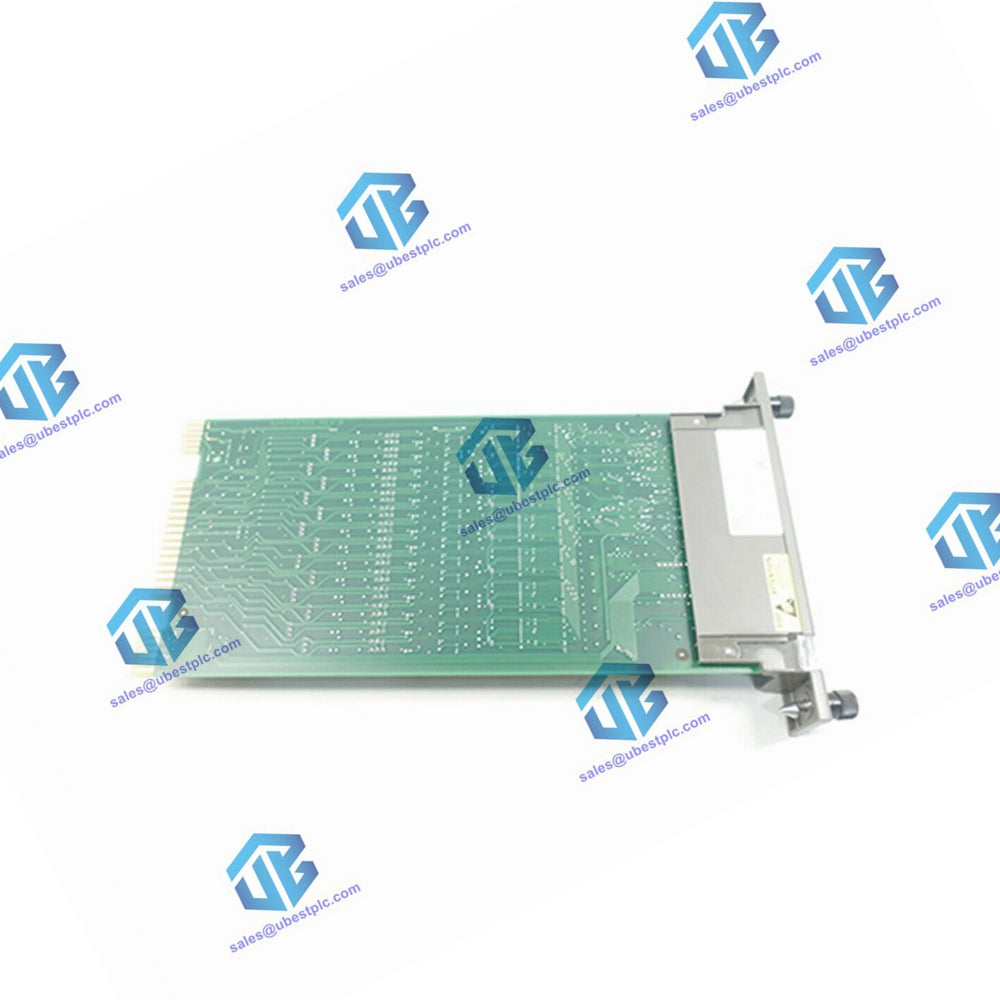

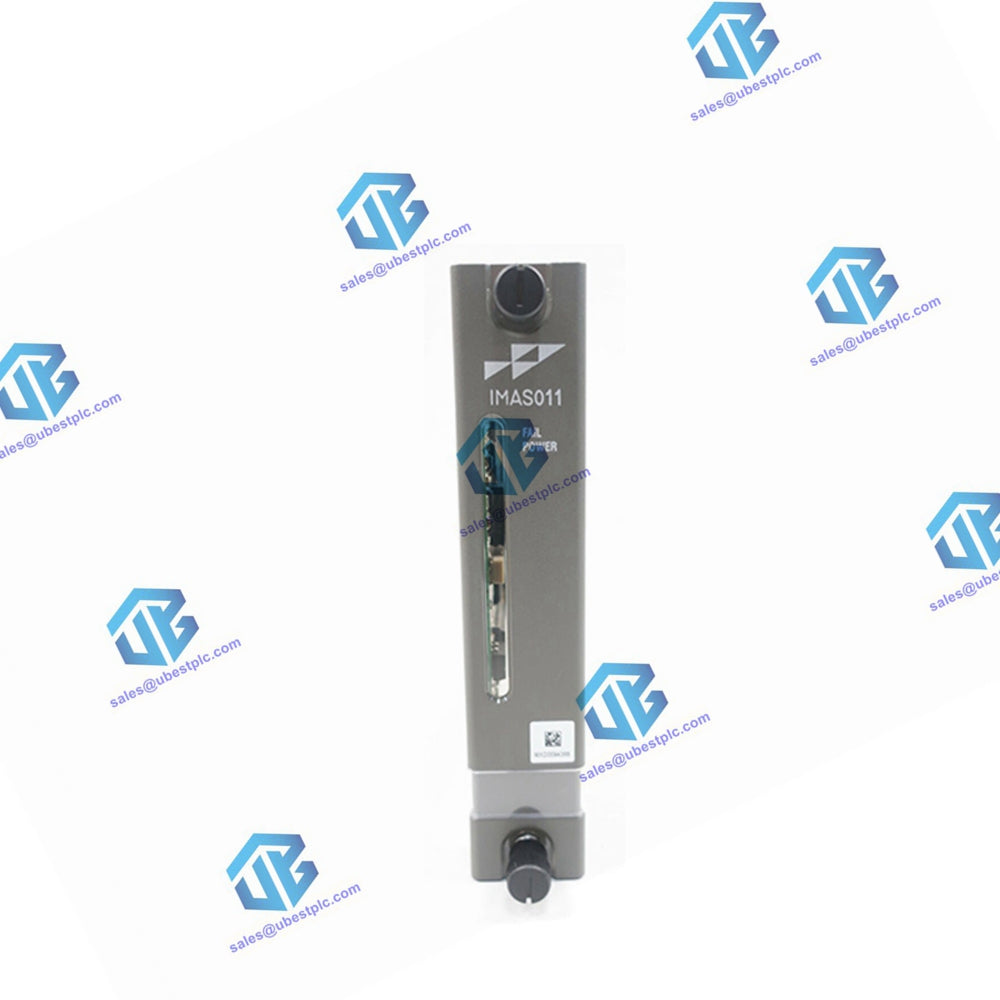

IMASO11 ABB Bailey Symphony Analog Output Module
Manufacturer:
ABB
Product No.:
IMASO11
Condition:
In Stock
Product Type:
Analog Output Module
Product Origin:
USA
Weight:
400g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Technical Specifications
| Analog Outputs | 14 channels, 1 to 5 VDC and 4-20 mA |
|---|---|
| D/A Resolution | 10 bits for analog outputs |
| Output Accuracy | ≤0.15% (voltage mode) ≤0.25% (current mode) |
| Output Load | 750 ohms maximum (current mode) 22 kilohms minimum (voltage mode) |
| Overvoltage Category | III for outputs per ANSI/ISA S82.01-1994 |
| Current Limiting | Short circuit protection 50 mA (nominal) output current limit |
| Power Requirements |
Voltage: +5 VDC ±5% +15 VDC ±5% -15 VDC ±5% +24 VDC ±10% (from termination unit/termination module) Current Consumption (Typical): 250 mA (+5 VDC) 100 mA (+15 VDC) 90 mA (-15 VDC) 310 mA (+24 VDC) Power Dissipation (Typical): 1.5 W at +5 VDC 2 W at +15 VDC 1.75 W at -15 VDC 8 W at +24 VDC |
Status LED Indicators
| Red LED | Green LED | Indication |
|---|---|---|
| OFF | OFF | No power or not enabled. |
| OFF | ON | Enabled and communicating with control module. |
| ON | OFF | Bus fault timer error (time-out) |
| ON | ON | Not allowed. |
