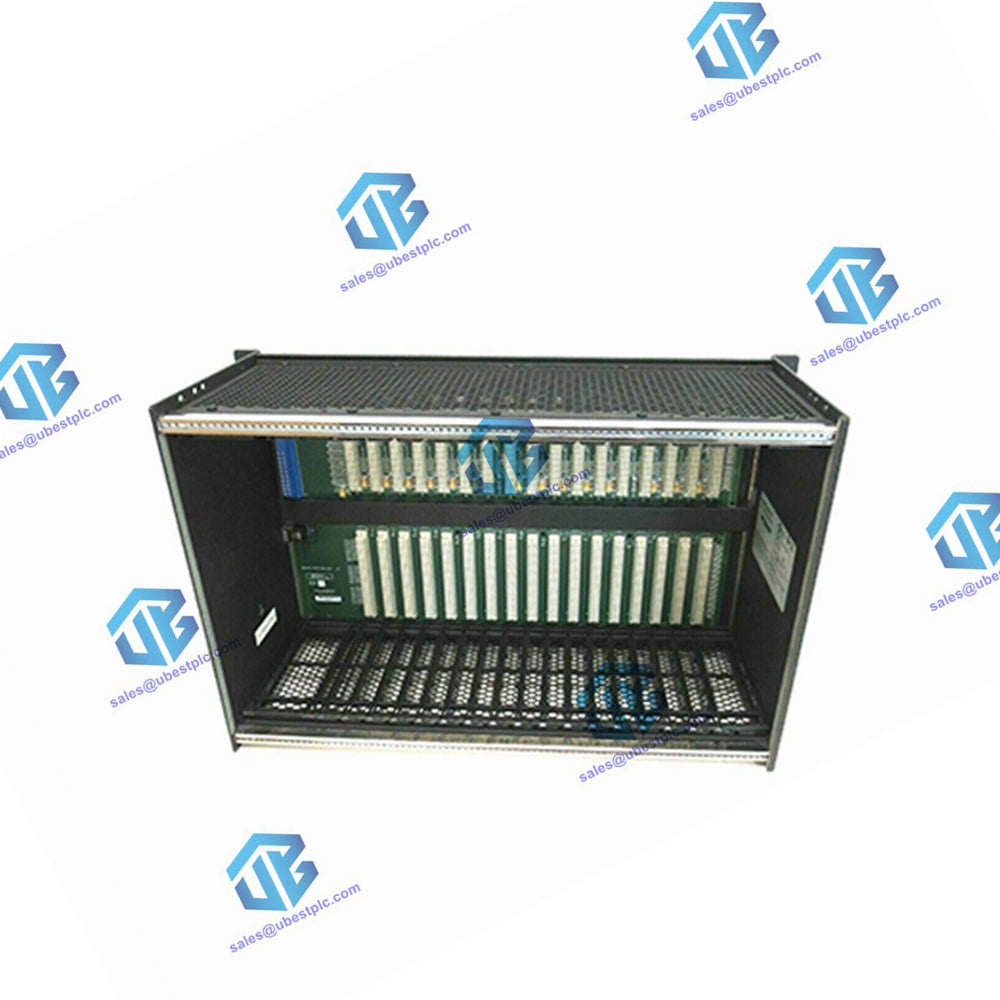

IC698CHS017 GE Fanuc | RX7i 17-slot Rear Mount Rack

IC698CHS017 GE Fanuc | RX7i 17-slot Rear Mount Rack

Technical Specifications:

Manufacturer:
GE
Product No.:
IC698CHS017
Condition:
In Stock
Product Type:
17-slot Rear Mount Rack
Product Origin:
USA
Weight:
4500g
Shipping port:
Xiamen
Warranty:
12 months

Product Description for GE Fanuc IC698CHS017

Product Name: GE Fanuc IC698CHS017

Series: PACSystems™ RX7i

Function: 17-slot Rear Mount Rack

Features: The IC698CHS017 is a versatile 17-slot rear mount rack designed for the PACSystems RX7i series. It supports all RX7i CPU and I/O configurations, Series 90-70 I/O, and VME modules. The backplane connectors are spaced on 0.8" (20.3mm) centers to accommodate single-width RX7i modules, VME modules, and single-width Series 90-70 modules. Double-width Series 90-70 modules use two slots each. The rack provides automatic daisy chaining of interrupt acknowledge and bus grant signals, slot sensing for rack-type I/O modules, and J2 backplane connectors for high-speed VME transfers.

Country of Origin: USA

Technical Specifications:

  • Number of Slots: 17 slots for I/O modules plus 1 slot for the power supply
  • Slot Spacing: 0.8" (20.3mm) for I/O modules, 2.4" (61.0mm) for the power supply slot
  • Maximum Current from RX7i Power Supplies:
    • 100 watt supply: +5V (20 amps), +12V (2 amps), -12V (1 amp)
    • 350 watt supply: +5V (60 amps), +12V (12 amps), -12V (4 amps)
  • Compatibility: Supports RX7i I/O modules, VME modules, single-width Series 90-70 modules, and double-width Series 90-70 PLC modules
  • Mounting: Can be mounted in a 10" (254 mm) deep enclosure (rear mount) or in a standard 19" (483 mm) rack (front mount)
  • Safety: Must be installed in a protective enclosure rated IP54 or greater
  • Optional Cooling: Supports an optional rack fan assembly

Physical Dimensions:

  • Height: 11.15" (283mm)
  • Width: 19.00" (483mm)
  • Depth: 7.5" (190mm)
