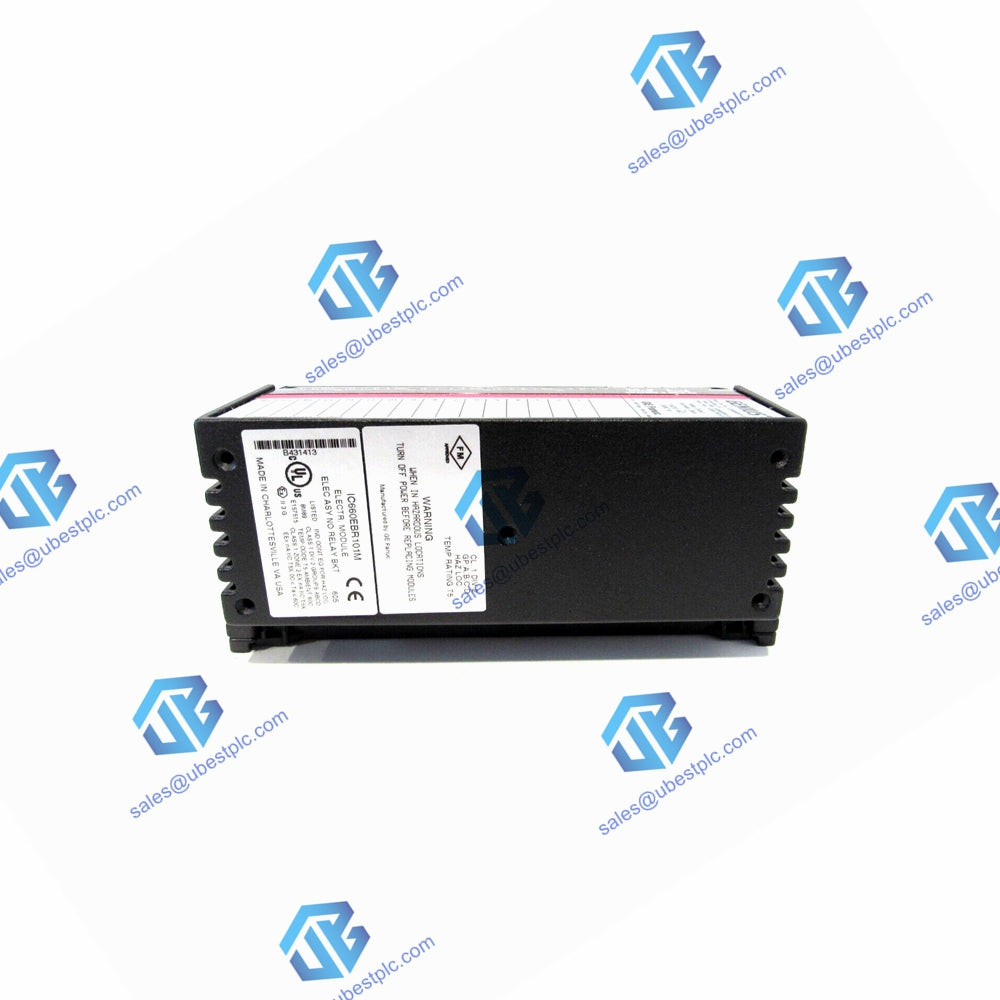

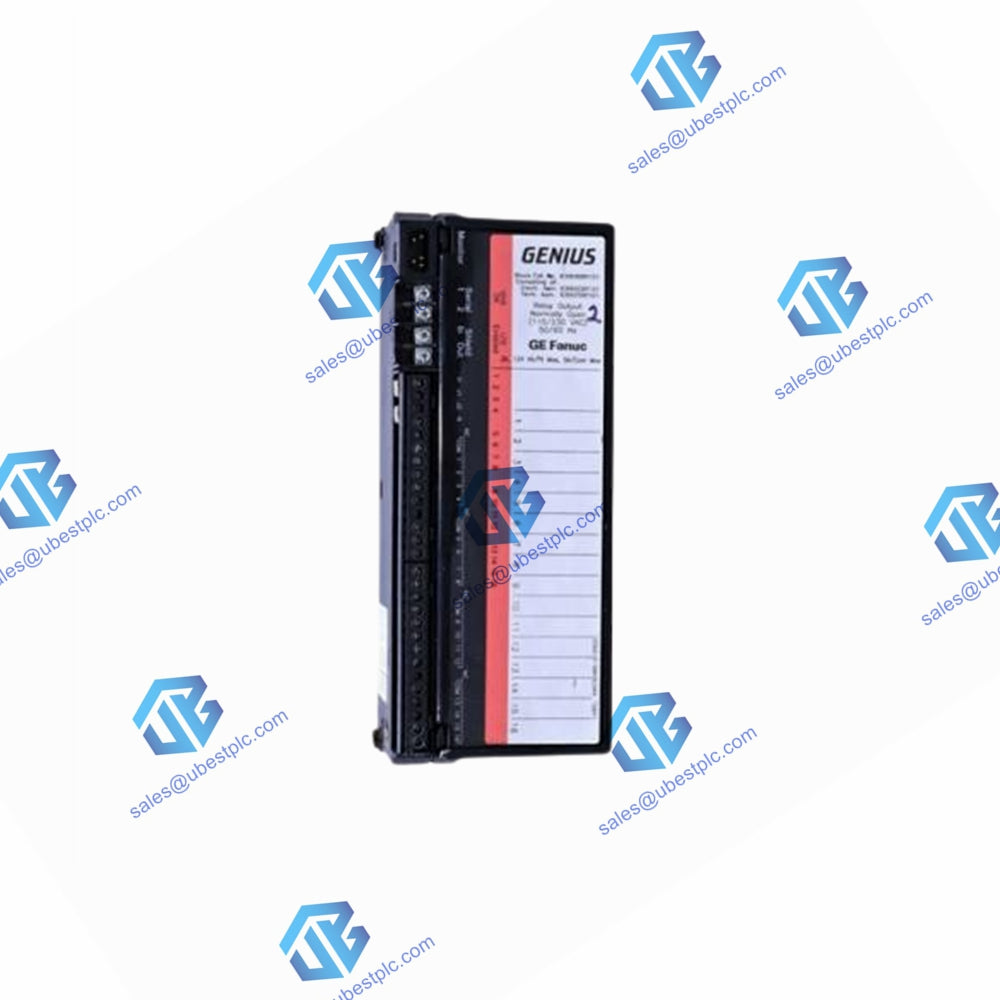

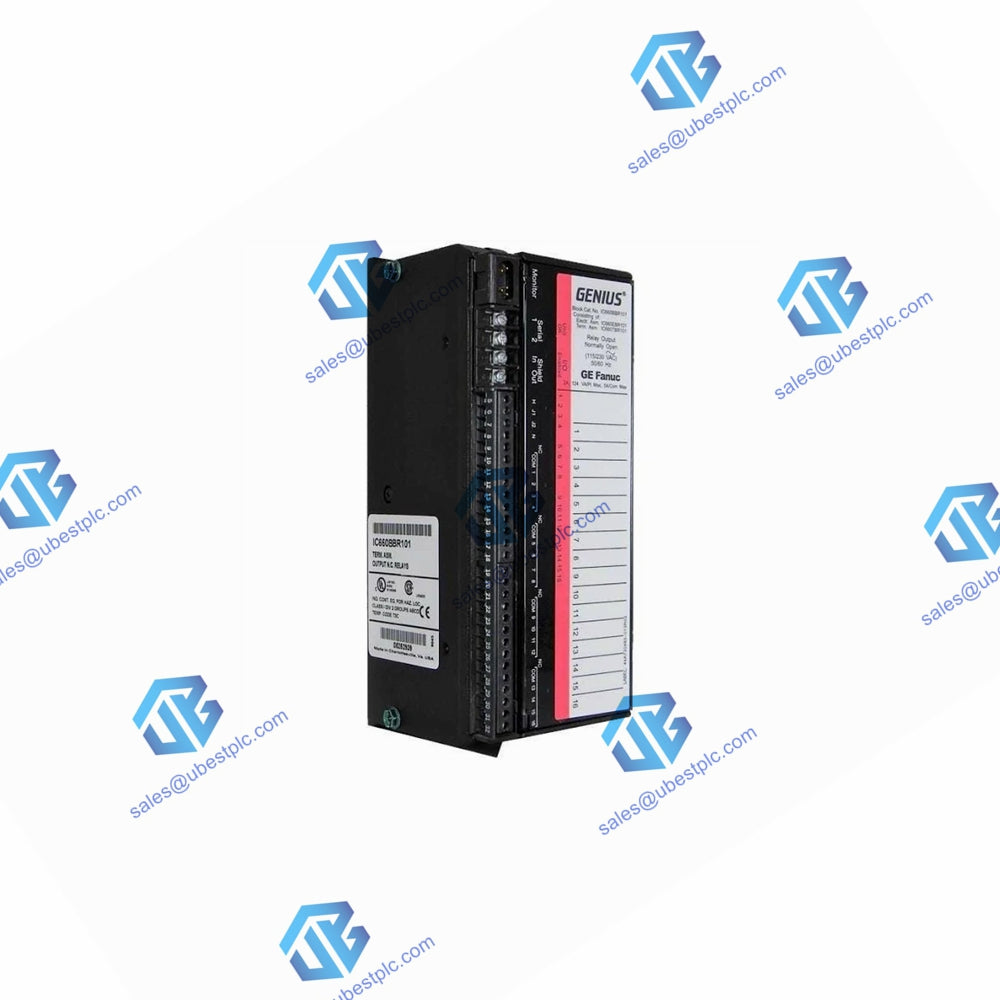

IC660BBR101 Qualitrol GE Series 90-30 Module

Technical Specifications

Block Dimensions:

• Height: 8.83” (22.44 cm)

• Width: 3.34” (8.48 cm)

• Depth: 3.91” (9.93 cm)

• Weight: 4 lbs. (1.8 kg)

Power Specifications:

• Operating Voltage: 93-132 VAC (115V) | 185-265 VAC (230V)

• Frequency: 47-63 Hz

• Current Requirement: 87 mA @ 115 VAC

• Power Dropout Time: 1 Cycle

• Heat Dissipation: 10.1 Watts (Max)

Environmental Ratings:

• Operating Temperature: 0°C to +60°C (+32°F to +140°F)

• Storage Temperature: -40°C to +100°C (-40°F to +212°F)

• Humidity: 5% to 95% (non-condensing)

• Vibration:

  • 5-10 Hz: 5.08 mm displacement

  • 10-200 Hz: 1G

Output Specifications:

• Maximum Output Current: 2 Amps per circuit

• Switching Power: 60 Watts or 125 VA

• Output Voltage Range: 5V to 250V AC | 5V to 220V DC

• Maximum Switching Frequency: 20 cycles/minute (Inductive Loads)

• Turn-On Delay: 5ms (Max)

• Minimum Recommended Load: 10 mA

• Output OFF Leakage Current: 0.1 mA

• Maximum Inrush Current: 2 Amps per circuit

Indicators:

• Module LEDs: Unit OK, I/O Enabled

• Circuit LEDs: Individual Relay Coil State

Isolation:

• Outputs to Chassis Ground: 1500 VAC

• Output Groups: 1500 VAC

• Power Terminals to Chassis: 1700 VDC

• Power Terminals to Outputs: 1500 VAC

• Communication Terminals to Power: 1700 VDC

• Communication Terminals to Outputs: 1500 VAC
