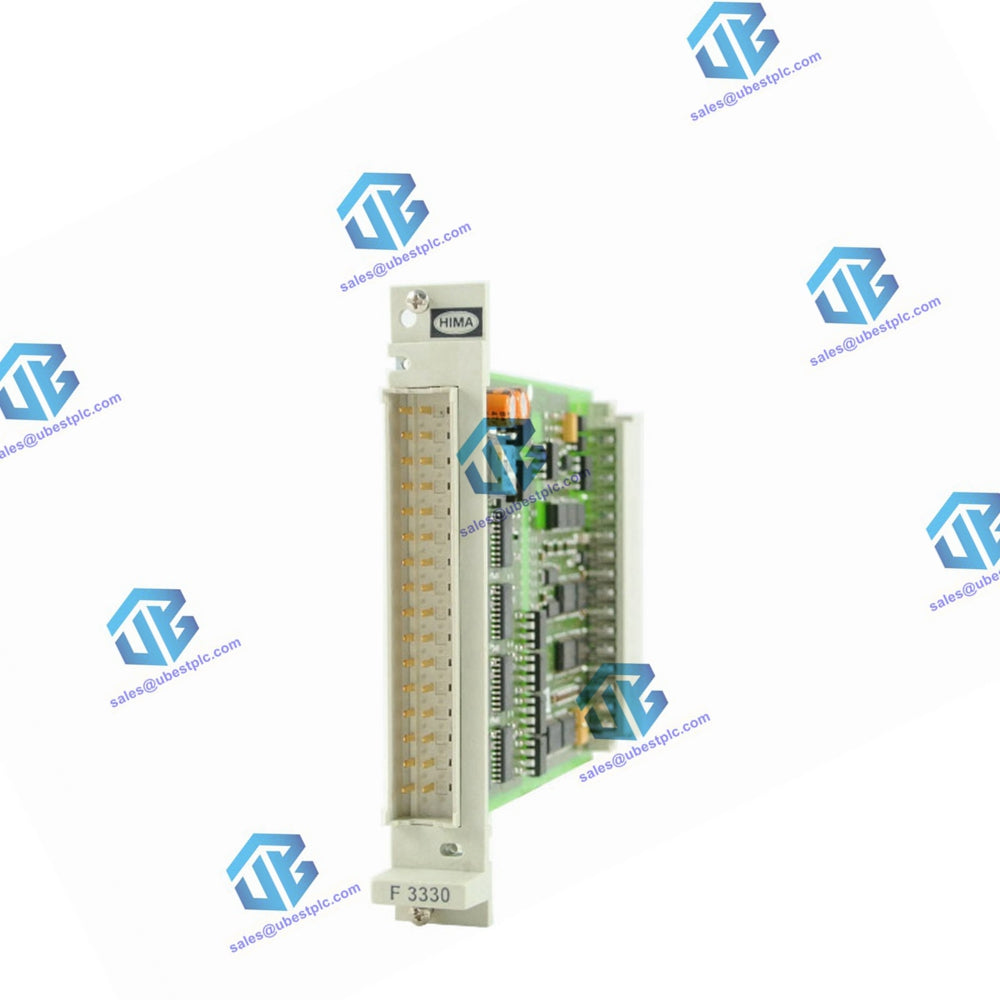

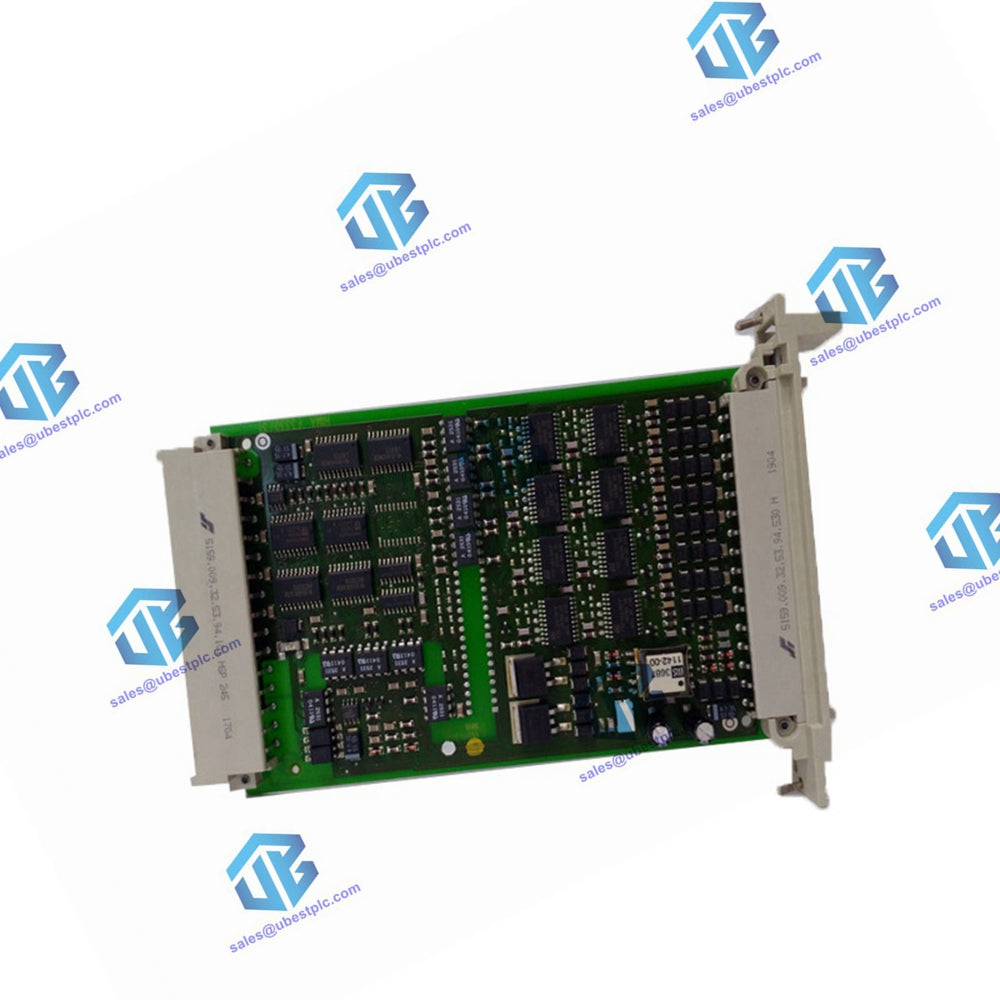

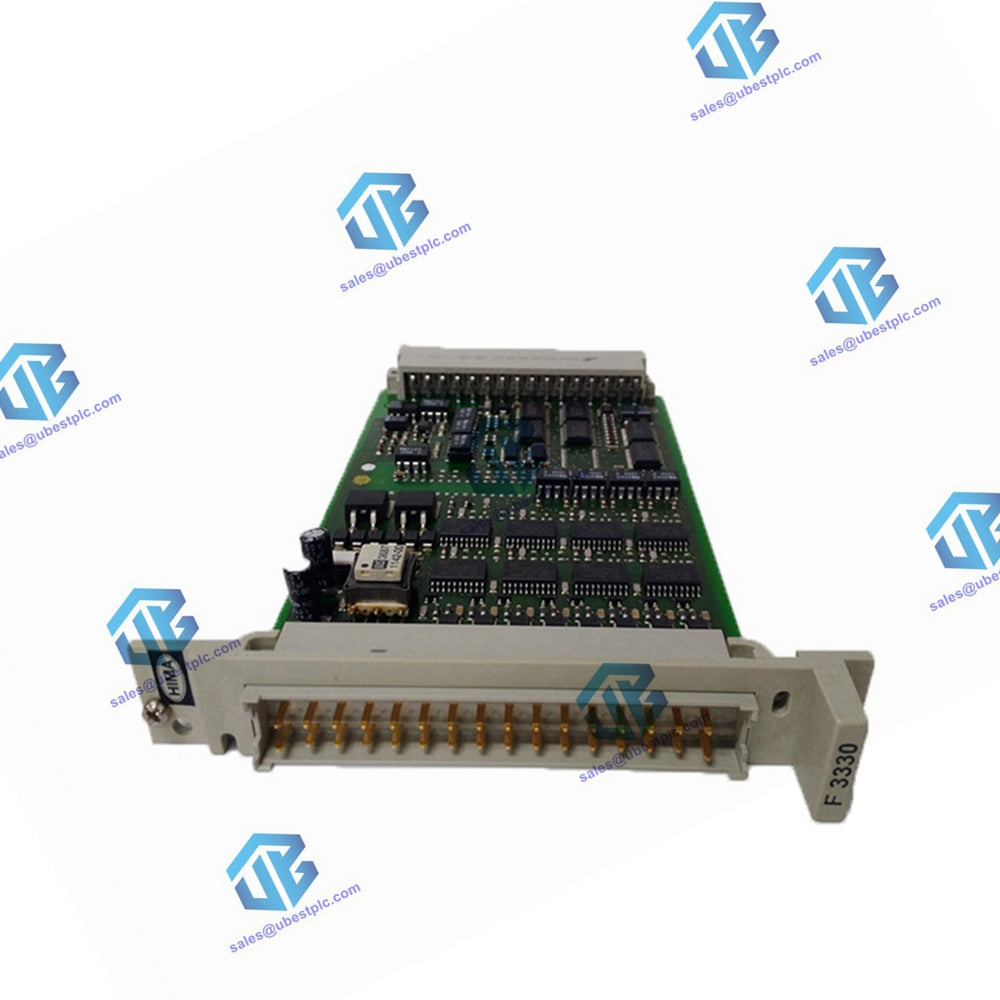

HIMA F3330 F 3330 8 fold Output Module

HIMA F3330 F 3330 8 fold Output Module

Technical Specifications:

Manufacturer:
HIMA
Product No.:
F3330
Condition:
In Stock
Product Type:
Output Module
Product Origin:
DE
Weight:
2000g
Shipping port:
Xiamen
Warranty:
12 months

Module Type: HIMA F3330

General Specifications:

  • Number of Channels: 8
  • Output Type: Digital
  • Safety Rating: Safety-related (suitable for applications with safety requirements)

Output Ratings:

  • Current Rating:
    • Per Channel: 500 mA (0.5 A)
    • Short Circuit Current: 0.75 - 1.5 A (module can handle temporary short circuits)
  • Voltage Rating: Likely 24 VDC (typical for similar modules)
  • Load Types:
    • Resistive, Inductive: Up to 500 mA
    • Lamp: Up to 4 W

Safety and Functional Features:

  • Safety Isolation: Yes (isolates outputs from power supply for safety)
  • Output Signal on L-Loss: No (outputs won't activate if L+ power supply is interrupted)

Additional Information:

  • Automatic Testing: Performs self-tests during operation:
    • Tests include reading back output signals and verifying switching capability.
  • Internal Voltage Drop: Up to 2 V at maximum load (500 mA)
  • Line Resistance: Maximum allowable resistance between power supply and module: 11 Ohms
  • Undervoltage Tripping: Module deactivates if voltage drops below a certain level (likely around 16 V)
  • Output Leakage Current: Maximum leakage current from outputs: 350 µA
  • Output Voltage (Reset): Maximum voltage at outputs when reset: 1.5 V
  • Test Signal Duration: Maximum duration of internal test signal: 200 µs
  • Space Requirement: 4 TE (standard unit in a rack system)

Power Consumption:

  • 5 VDC: 110 mA
  • 24 VDC: 180 mA (additional load)
