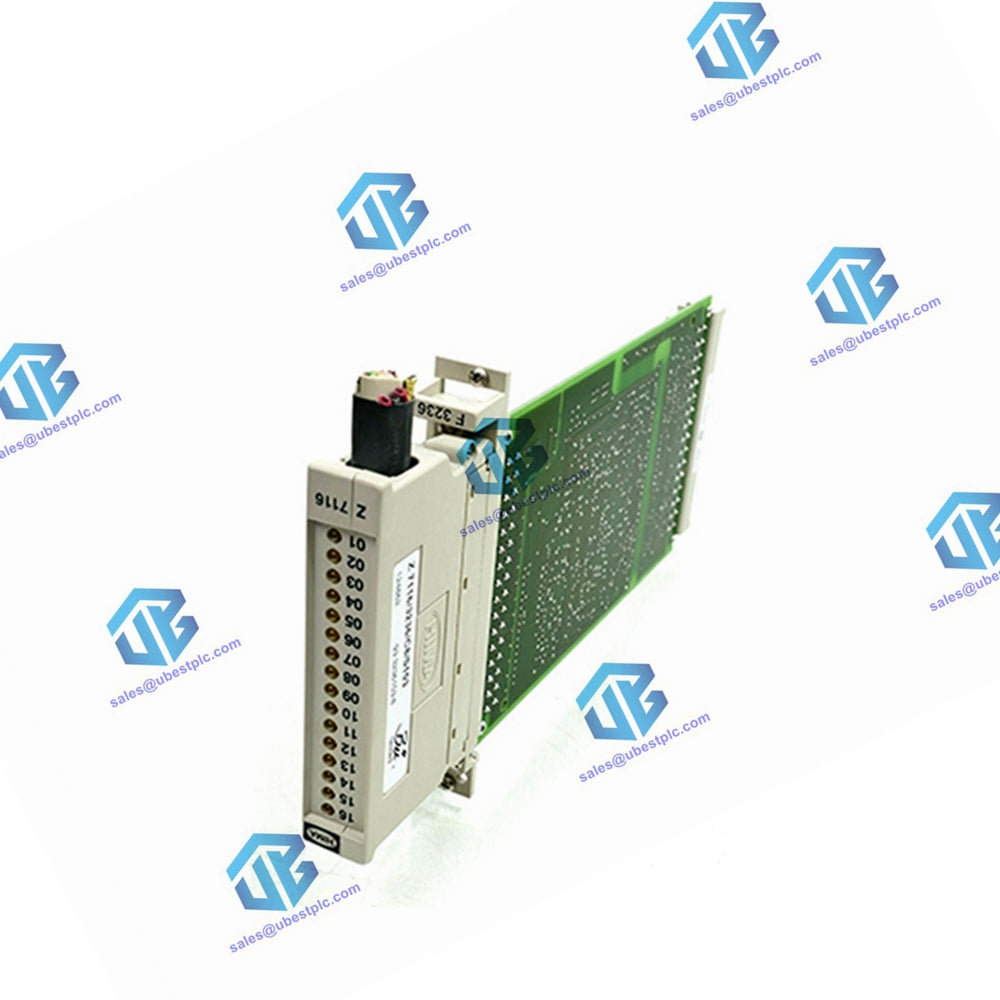

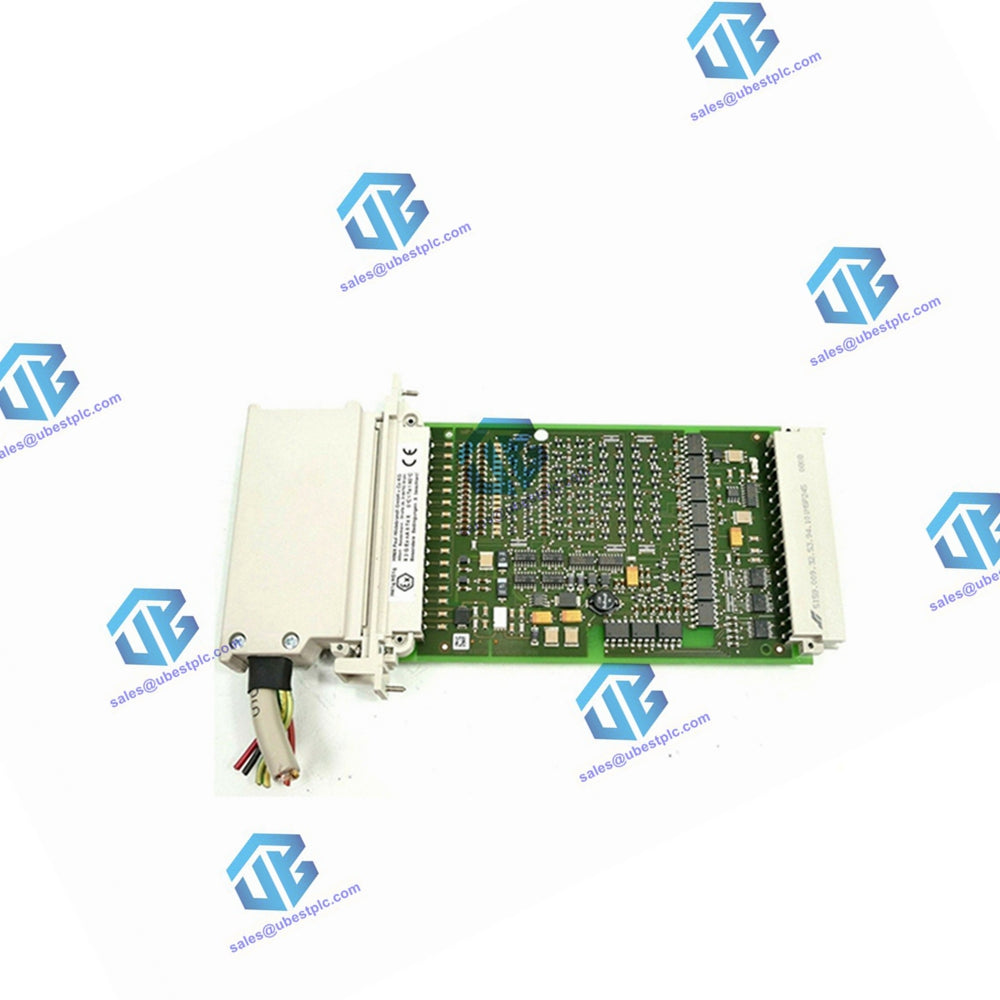

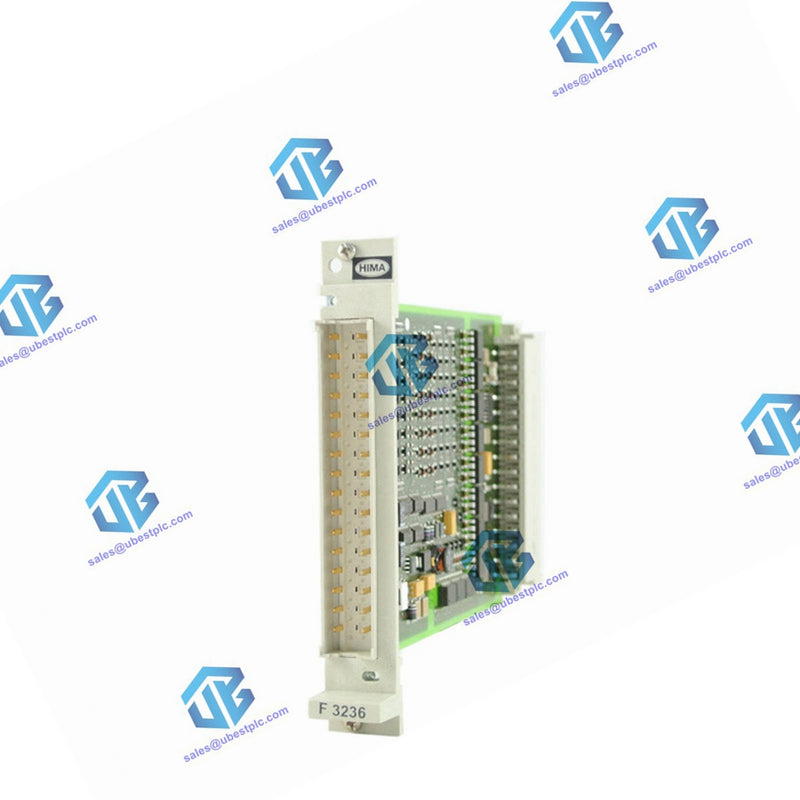

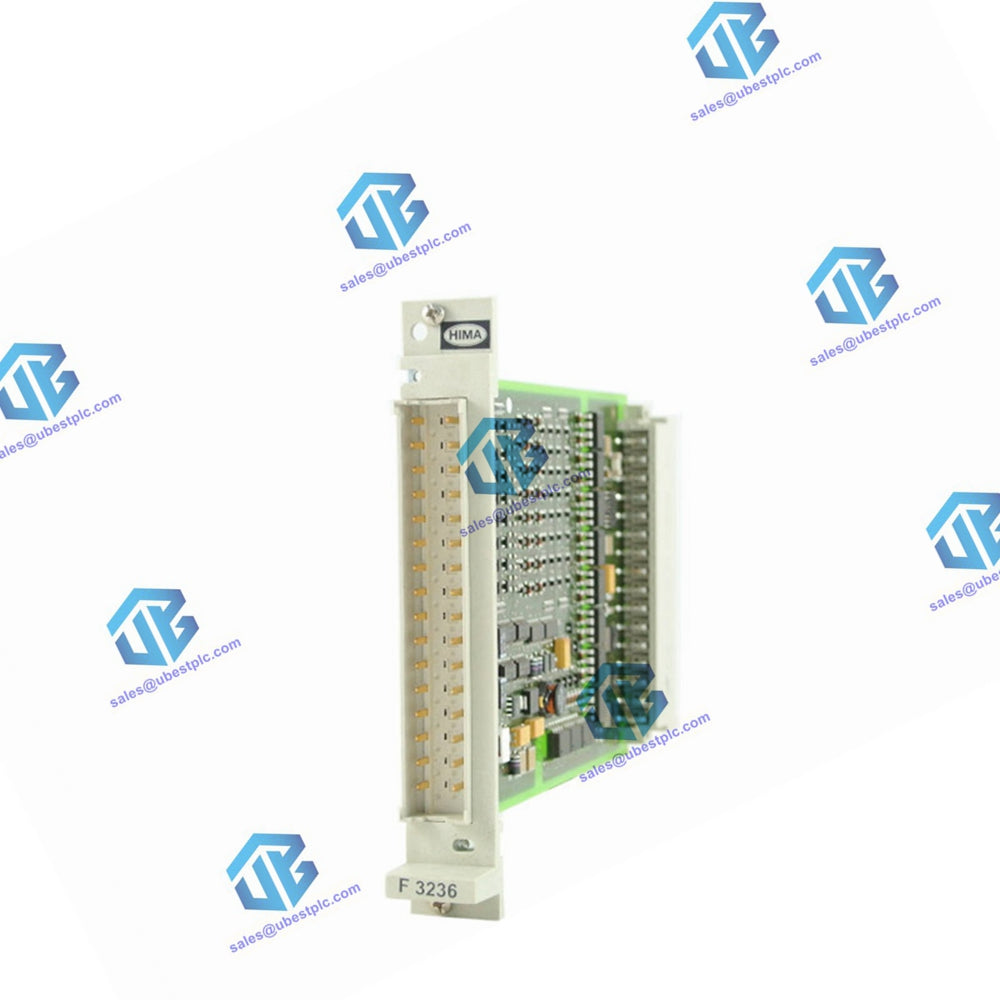

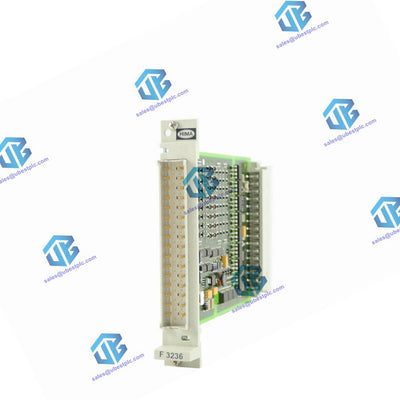

HIMA F-3236 F3236 16-Fold Input Module

HIMA F-3236 F3236 16-Fold Input Module

Technical Specifications:

Manufacturer:
HIMA
Product No.:
F3236
Condition:
In Stock
Product Type:
input Module
Product Origin:
DE
Weight:
1200g
Shipping port:
Xiamen
Warranty:
12 months

HIMA F3236 Technical Specifications

Overview:

  • Model: F 3236
  • Type: 16-fold input module, safety-related for 1 signals or sensors with safety isolation.
  • Requirement Class: AK 1 to AK 6

Testing and Functionality:

  • The module is automatically fully tested for correct functionality during operation.
  • Test Functions Include:
    • Cross-talking of the inputs with walking-zero.
    • Functions of the filter capacitors.
    • Function of the module itself.

Input Specifications:

  • Input Signal: 1-signal, 6 mA (including cable plug) or mechanical contact 24 V.
  • Switching Time: Typical 8 ms.

Physical and Operating Data:

  • Space Requirement: 4 TE (horizontal module width).
  • Operating Data:
    • 5 V DC: 120 mA
    • 24 V DC: 200 mA

Connections:

  • Front Cable Plug: Flat pin plug 2.8 x 0.8 mm², to be connected to the earth bar under the slot.
  • Cable: LiYY 16 x 0.25 mm².

Channel Connection and Color Coding:

  • Channels and Corresponding Colors:
    • 1: d2 - White (ws)
    • 2: d4 - Brown (br)
    • 3: d6 - Green (gn)
    • 4: d8 - Yellow (ge)
    • 5: d10 - Gray (gr)
    • 6: d12 - Pink (rs)
    • 7: d14 - Blue (bl)
    • 8: d16 - Red (rt)
    • 9: d18 - Black (sw)
    • 10: d20 - Violet (vio)
    • 11: d22 - White-Brown (ws-br)
    • 12: d24 - White-Green (ws-gn)
    • 13: d26 - White-Yellow (ws-ge)
    • 14: d28 - White-Gray (ws-gr)
    • 15: d30 - White-Pink (ws-rs)
    • 16: d32 - White-Blue (ws-bl)

Lead Marking of the Cable Plug:

  • Leads:
    • L–: z2 (Black sw)
    • L+: z12 (Red rt)
    • Screen: z4, z6 (Yellow-Green ge-gn)

Test Plug Diagram: Z 7201 / 3236

Manufacturer Information:

  • Company: HIMA Paul Hildebrandt GmbH + Co KG
  • Address: Postfach 1261, 68777 Brühl, Germany
