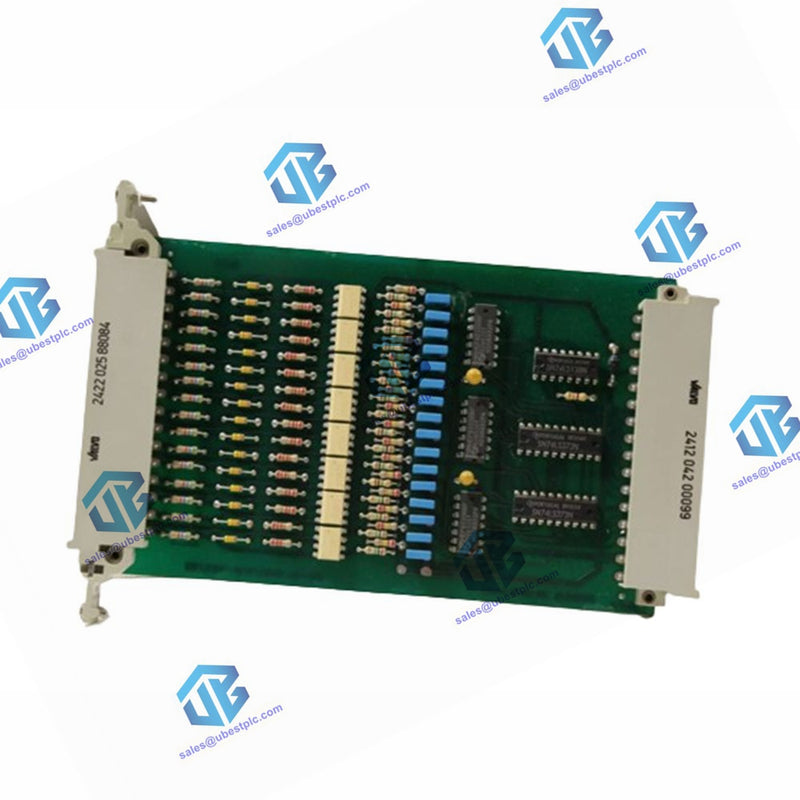

HIMA F 3221 F3221 16-fold input Module

The HIMA F3221 module is a 16-fold input module designed for use with sensors or 1-signal inputs with safety isolation. This module is used in industrial automation and safety systems to ensure reliable and secure signal processing from various sensors and input devices.

Description

The HIMA F3221 is engineered to handle up to 16 individual input signals. It provides robust and non-interacting input processing, making it suitable for critical safety applications where signal integrity and isolation are paramount. The module is designed to interface with various types of sensors or mechanical contacts, ensuring versatile application across different industrial environments.

Technical Specifications

Here are the key technical specifications of the HIMA F3221 module:

1. Power Requirements:

   • Operating Voltage: 5V DC and 24V DC
   • Current Consumption:
     • 5V DC: 70 mA
     • 24V DC: 130 mA

2. Input Channels:

   • Number of Channels: 16
   • Input Signal Type: 1-signal, 8 mA (including cable plug) or mechanical contact 24V
   • Non-Interacting: Ensures inputs do not interfere with each other
   • Switching Time: Typically 10 ms

3. Isolation and Safety:

   • Safety Isolation: Inputs are isolated to ensure safety and prevent cross-talk between channels

4. Physical Characteristics:

   • Space Requirement: 4 TE (unit width)
   • Connection Type: Front cable plug
   • Channel Connection Colors: Specific color coding for each input channel (e.g., d2 - white, d4 - brown, etc.)

5. Certifications:

   • SN-Test-Certificate 12 D 2/H 19-66 R/82: Indicates compliance with safety testing standards

6. Environmental Conditions:

   • Operating Temperature Range: Not specified in the document, typically designed for standard industrial environments

7. Other Features:

   • Lead Marking: Specific lead markings for easy identification and connection
   • Cable Specifications: LiYY 16 x 0.25 mm², flat pin plug 2.8 x 0.8 mm², conductor cross-section 1 mm², length 750 mm
