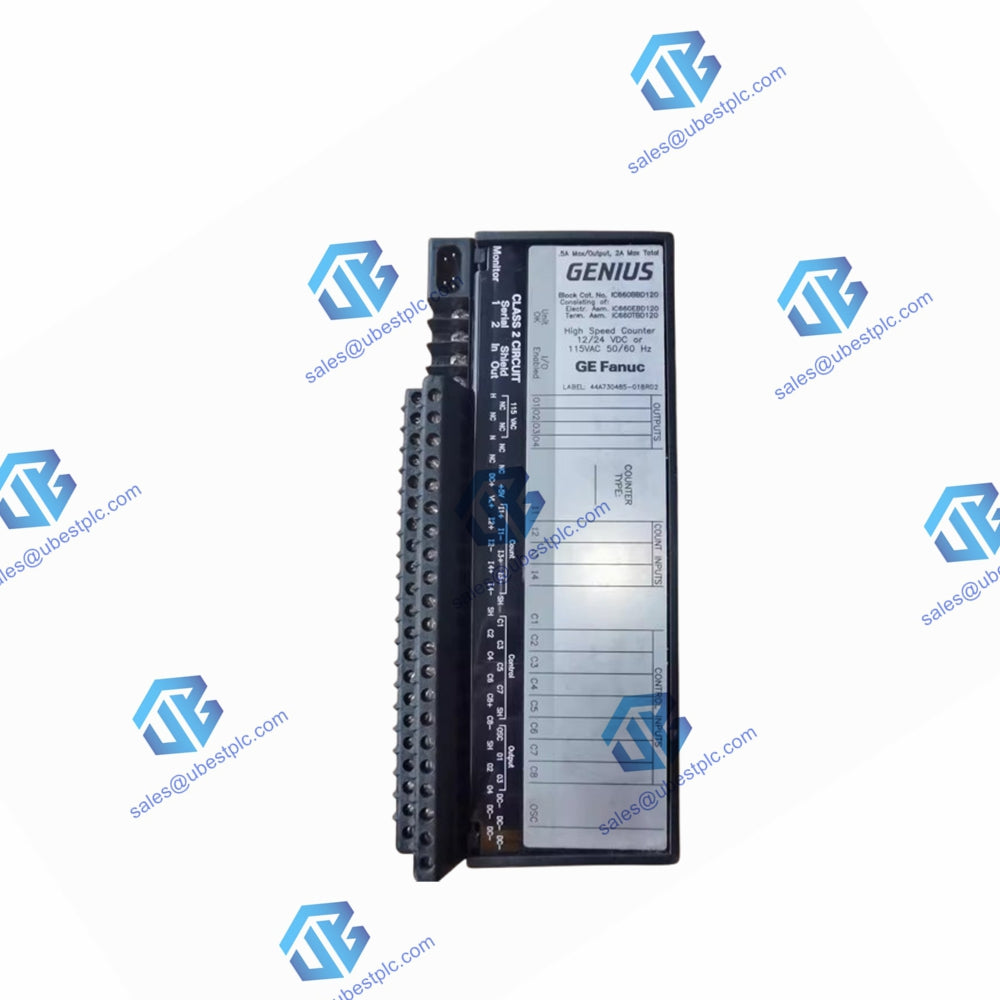

High-Speed Counter GE Fanuc IC660TBD120

Overview

The GE Fanuc IC660TBD120 is a versatile high-speed counter block from the Genius I/O series, designed for industrial automation systems. It supports both AC and DC voltage operations, offering reliable performance with robust power dropout handling and temperature resilience.

Features

• ⚡ Dual Voltage Operation: Compatible with 93-132V AC or 10-30V DC, enabling flexible deployment.
• ⏱ Fast Response: High-speed counter functionality for precision operations in automated systems.
• 🔋 Power Resilience: DC dropout times of up to 75 ms at 24V and AC dropout handling for 1 cycle.
• 🌡 Temperature Resistant: Operates seamlessly from 0 to 60°C and endures storage from -40 to 100°C.
• 📐 Compact Design: Slim profile with dimensions of 224 x 90 x 112 mm.
• ⚖ Lightweight: Weighing just 1.8 kg, ideal for compact industrial setups.

Technical Specifications

• Brand: GE Fanuc
• Series: Genius I/O
• Model: IC660TBD120
• Block Type: High-speed counter
• Operating Voltage: 93-132V AC / 10-30V DC
• Frequency/Ripple: 47-63 Hz (AC) / 10% max (DC)
• Required AC Power: 60 mA typical / 250 mA max
• Required DC Power: 200 mA typical / 300 mA max at 12V
• Power Dropout Time (DC): 10 ms at 12V, 75 ms at 24V
• Power Dropout Time (AC): 1 cycle
• Dimensions: 224 x 90 x 112 mm (8.8 x 3.5 x 4.4 inches)
• Weight: 1.8 kg (4 pounds)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 100°C (-40 to 212°F)

Applications

• Industrial Automation: Suitable for high-speed operations requiring accurate pulse counting.
• Flexible Power Systems: Designed for facilities with mixed AC and DC power sources.
• Precision Measurement: Ideal for processes demanding real-time counter performance.

FAQS

Q: Can the IC660TBD120 operate with DC power?
A: Yes, it supports DC voltage ranging from 10 to 30 Volts.

Q: What is the dropout time for AC power?
A: The dropout time is 1 cycle for AC power.

Q: What is the maximum power requirement for DC operation?
A: It requires up to 300 mA at 12 Volts DC.

Q: Is it suitable for extreme storage conditions?
A: Yes, it can be stored in temperatures ranging from -40 to 100°C.

Q: What is the purpose of the high-speed counter block?
A: It provides precise counting capabilities for automated processes in industrial settings.
