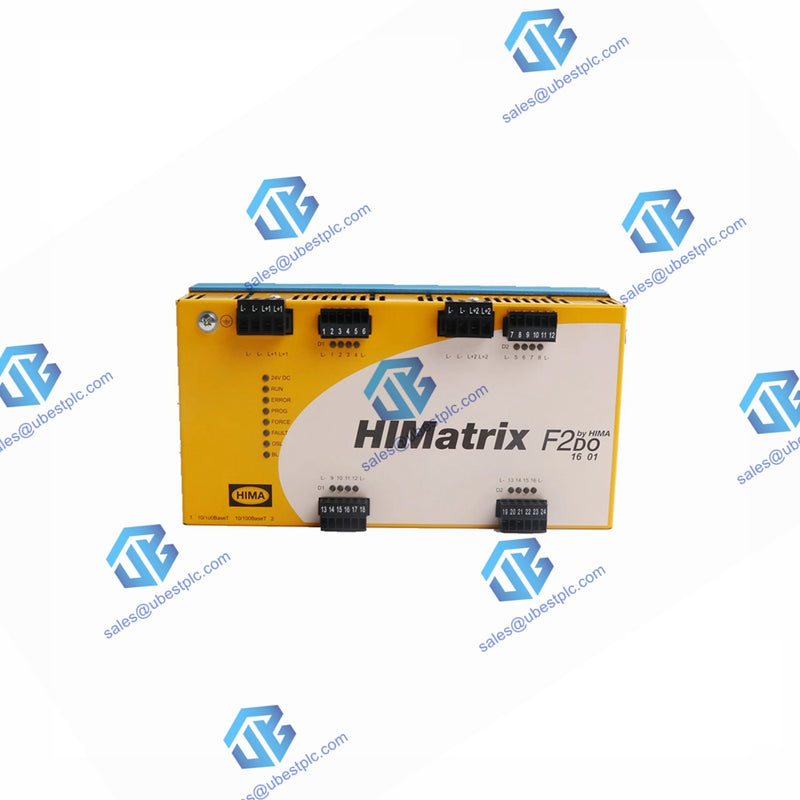

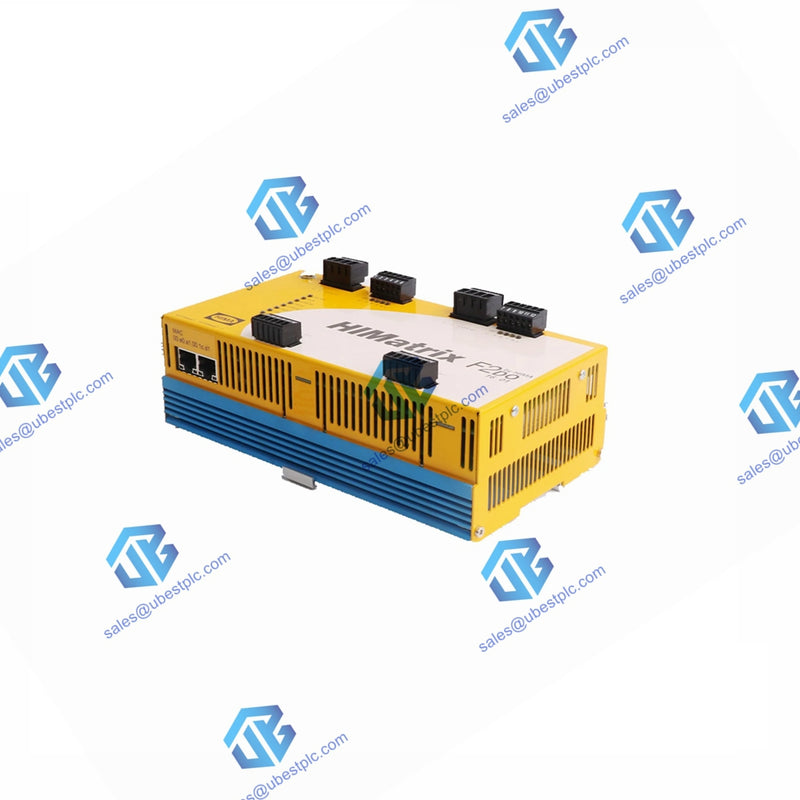

F2 DO 16 01 HIMA F2DO1601 Safety-Related Controller

F2 DO 16 01 HIMA F2DO1601 Safety-Related Controller

Technical Specifications:

Manufacturer:
HIMA
Product No.:
F2DO1601
Condition:
In Stock
Product Type:
Safety-Related Controller
Product Origin:
DE
Weight:
900g
Shipping port:
Xiamen
Warranty:
12 months

Technical Specifications

General Specifications

Parameter Specification
Response Time ≥ 20 ms
Ethernet Interfaces 2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch
Operating Voltage 24 VDC, -15...+20 %, rPP ≤ 15 %
Current Input Max. 9 A per group
Idle Current Approx. 0.2 A per group at 24 V
Fuse (External) 10 A time-lag (T)
Back-up Battery None
Operating Temperature 0...+60 °C
Storage Temperature -40...+85 °C
Type of Protection IP20
Max. Dimensions Width: 207 mm (with housing screws)
Height: 114 mm (with fixing bolt)
Depth: 66 mm (with earthing screw)
Weight Approx. 0.9 kg

Output Specifications

Parameter Specification
Number of Outputs 16 (non-galvanically separated)
Output Voltage ≥ L+ minus 2 V
Output Current Max. 2 A at < 40 °C
Max. 1 A at 40…60 °C
Current per Group Total Permissible Current: Max. 8 A
Max. Total Current: 16 A
Minimum Load 2 mA for each channel
Lamp Load Max. 10 W (with output 1 A)
Max. 25 W (with output 2 A)
Inductive Load Max. 500 mH
Internal Voltage Drop Max. 2 V at 2 A
Leakage Current (Low Level) Max. 1 mA at 2 V

Protection Class

Parameter Specification
Protection Class III in accordance with IEC/EN 61131-2
Ambient Temperature 0...+60 °C
Pollution Degree II in accordance with IEC/EN 61131-2
Altitude < 2000 m
Housing Standard: IP20
Supply Voltage 24 VDC

Equipment, Scope of Delivery

Remote I/O Variants

Designation Description
F2 DO 16 01 Remote I/O (16 digital outputs), Operating temperature: 0...+60 °C, for ELOP II Factory programming tool
F2 DO 16 014 Remote I/O (16 digital outputs), Operating temperature: -25...+70 °C (temperature class T1), Vibration and shock tested according to EN 50125-3 and EN 50155, class 1B according to IEC 61373, for ELOP II Factory programming tool
F2 DO 16 01 SILworX Remote I/O (16 digital outputs), Operating temperature: 0...+60 °C, for SILworX programming tool
F2 DO 16 014 SILworX Remote I/O (16 digital outputs), Operating temperature: -25...+70 °C (temperature class T1), Vibration and shock tested according to EN 50125-3 and EN 50155, class 1B according to IEC 61373, for SILworX programming tool
