Brand Information

• Brand: ABB

Model Information

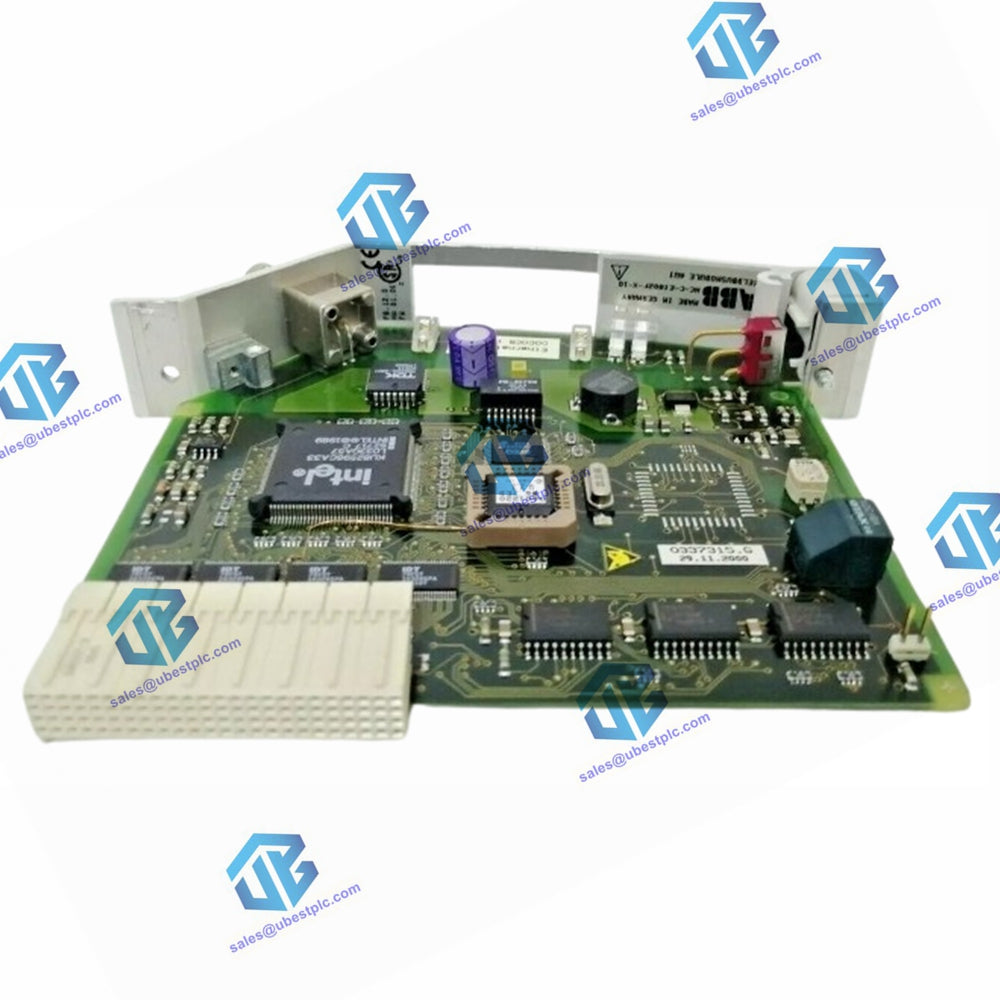

• Model: EI 801F（3BDH000015R1）
• Product Type: Communication Module

Product Description

• Catalog Description: EI 801F 10Base2 Ethernet Interface Module
• Medium Description: For use with PM802F and PM803F

Technical Specifications

• Dimensions:

  • Width: 28 mm
  • Height: 155 mm
  • Depth: 128 mm
  • Weight:
    • Without Battery: 150 g
    • With Battery: 170 g

• Power Supply:

  • Voltage: 5V DC +/- 3%
  • Power Consumption: 1.4W to 3.1W

• Communication:

  • Ethernet Interface: 10Base2
  • Connector Type: BNC
  • Transmission Speed: 10 Mbit/s
  • Cable Type: Coaxial, 50 ohm, Type: RG58U
  • Maximum Segment Length: 185 m
  • Segment Termination Resistance: 30 ohm

• Additional Features:

  • State LEDs: Yes
  • Batt Low LED: ≤ 2.4V
  • Backup Battery: 3.6V Lithium, 700 mAh
  • RAM and Real-Time Clock Retention Time: ≥ 1.5 years

• Protection:

  • Circuit Protection: Short circuit protection

Environmental Specifications

• Operating Temperature: 0 to 60°C
• Storage Temperature: -25 to 85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP20

Compliance and Certification

• RoHS Status: Not RoHS Compliant
• WEEE Category: 5 (Small Equipment)
• Certifications: CE, NAMUR, CSA, UL, GOST
