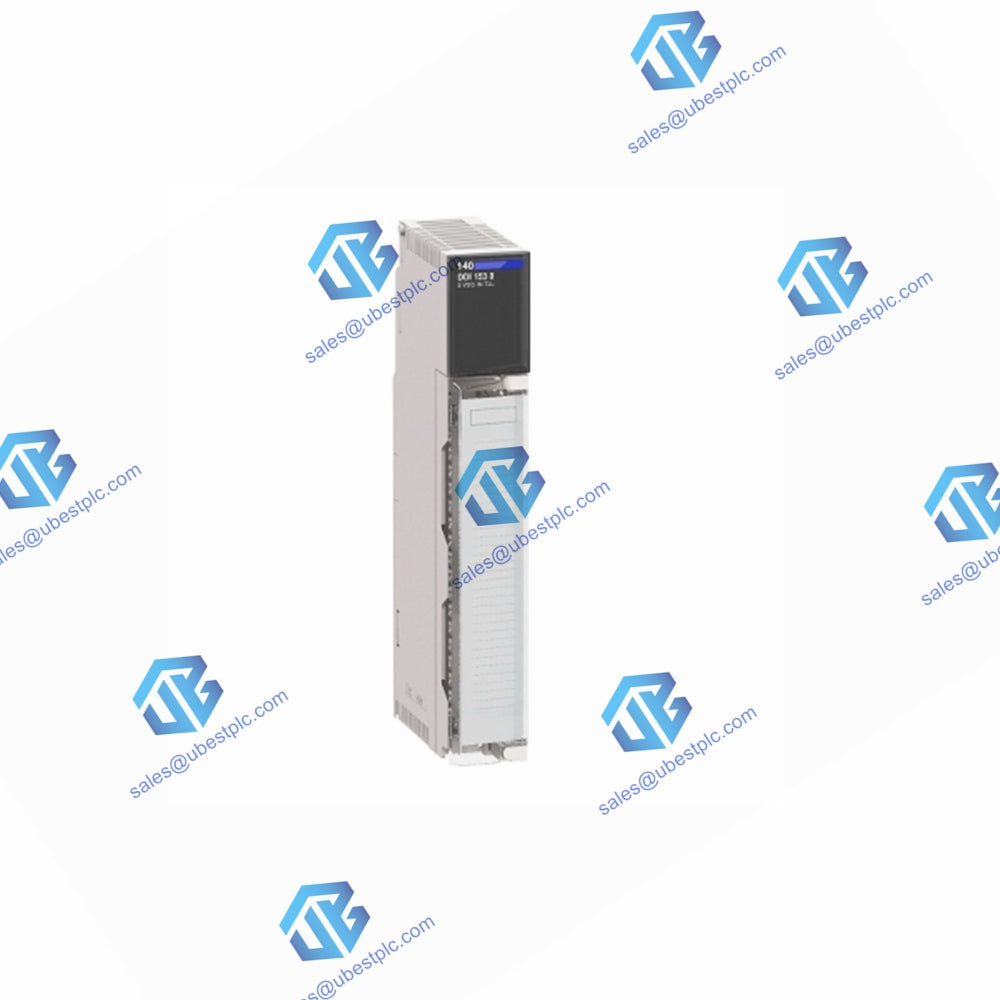

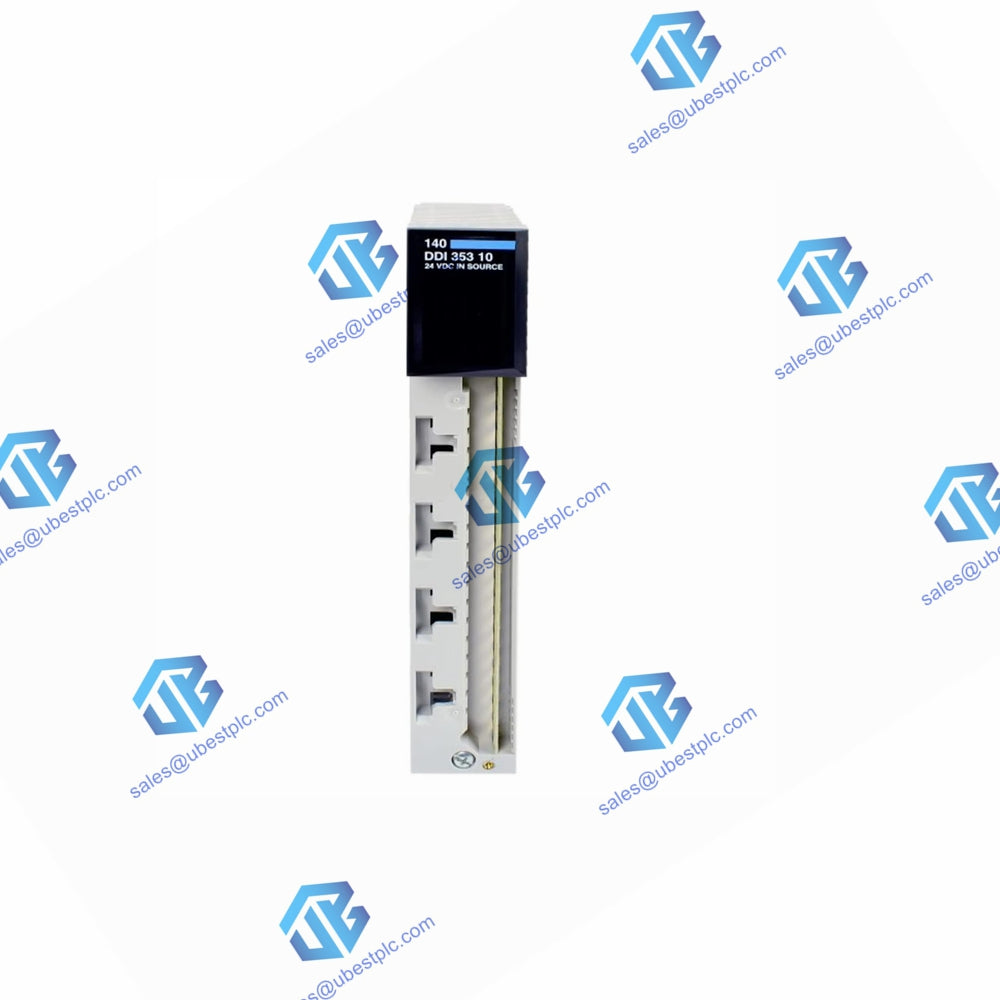

Discrete Input Module Schneider 140DDI35310
Manufacturer:
Schneider
Product No.:
140DDI35310
Condition:
In Stock
Product Type:
Discrete Input Module
Product Origin:
FR
Weight:
300g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Overview
The Modicon Quantum automation platform offers advanced control and automation capabilities, specifically through its Low Voltage DC Discrete Input Module. Designed for reliability and performance, this module supports a wide range of industrial applications with its robust features and specifications.
Features
- Input Channels: 32 discrete inputs grouped into 4 channels.
- Voltage Compatibility: Operates at 24 V DC with input voltage limits from 19.2 V to 30 V.
- Input Status Indication: Features 32 green LEDs for input status, plus additional LEDs for bus communication and fault detection.
- Protection Mechanism: Input protection is provided via resistor limitation, ensuring safe operation within specified limits.
- High Isolation Ratings: Provides 1780 Vrms isolation between groups and the bus, and 500 Vrms isolation between groups for enhanced safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Discrete Input Type | Negative (source) |
| Input Impedance | 2400 Ohm |
| Leakage Current | Maximum of 200 mA at 5.5 V with an input of 4 V |
| Current States | State 1 (Active): ≥ 2.5 mA at Us = -14 V State 0 (Inactive): ≤ 0.5 mA |
| Input Voltage Guarantee | State 1: -30 V to -15 V DC State 0: -5 V to 0 V DC |
| Response Time | ≤ 1 ms from state 0 to state 1 ≤ 1 ms from state 1 to state 0 |
| Power Dissipation | 1.5 W + (0.26 x number of points ON) |
| Absolute Maximum Input | 30 V continuous 50 V during a 1 ms decaying pulse |
| Bus Current Requirement | 330 mA |
| Ambient Conditions | Operating Temperature: 32°F to 140°F (0°C to 60°C) Storage Temperature: -40°F to 185°F (-40°C to 85°C) Relative Humidity: 95% without condensation Operating Altitude: Up to 16,404.2 ft (5000 m) |
Environmental Standards
| Parameter | Specification |
|---|---|
| Certification Standards | UL 508, CSA C22.2 No 142 |
| Product Certifications | RINA, GOST, FM Class 1 Division 2, C-tick, RMRS |
| Electrostatic Discharge Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Field Resistance | 9.1 V/m (10 V/m) at 80…2000 MHz (IEC 801-3) |
Physical Attributes
| Parameter | Specification |
|---|---|
| Module Format | Standard |
| Net Weight | 0.7 lb (0.3 kg) |
| Dimensions | Height: 6.4 in (16.3 cm) Width: 1.8 in (4.5 cm) Length: 12.3 in (31.2 cm) |
| Package Details | Number of Units per Package: 1 Package Weight: 14.5 oz (412.0 g) |
Ordering Information
| Parameter | Specification |
|---|---|
| Category Code | US1PC2118155 |
| Discount Schedule | PC21 |
| GTIN | 3595861135680 |
| Returnability | Yes |
| Country of Origin | CN |
Warranty
- Contractual Warranty Duration: 18 months
