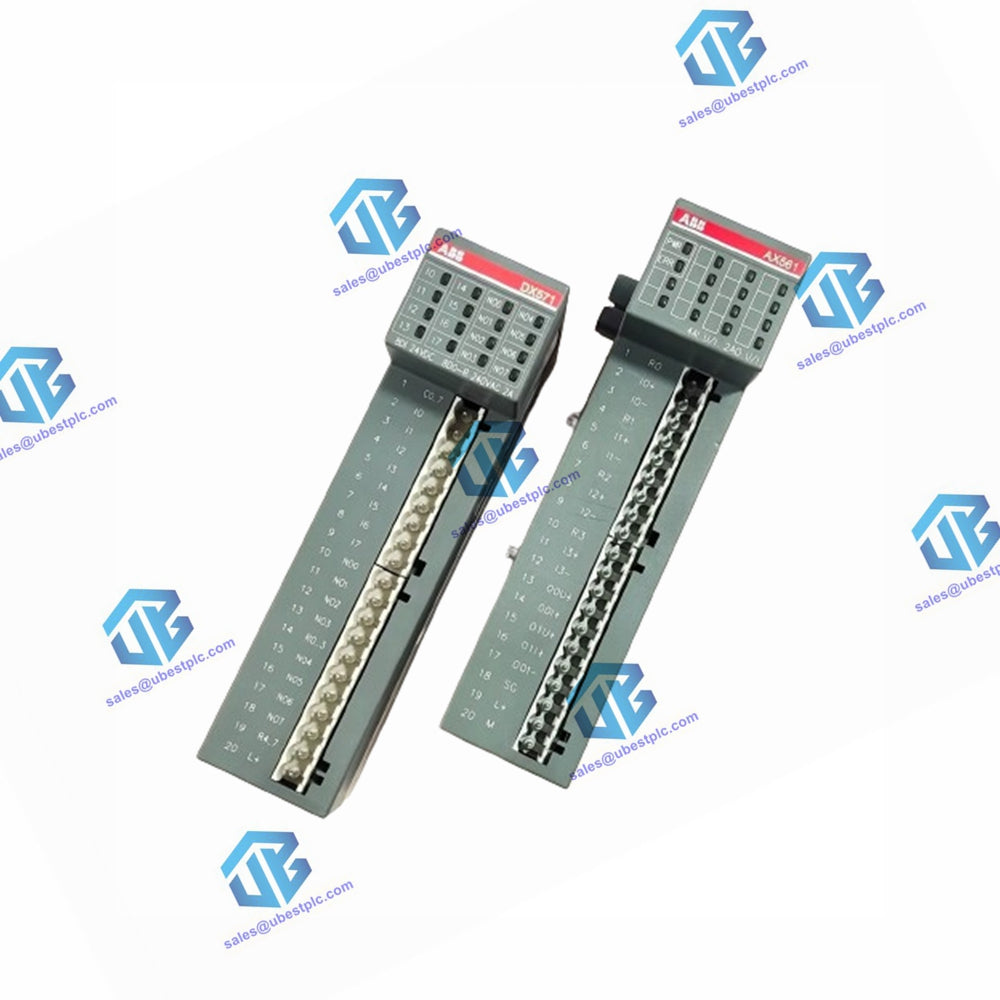

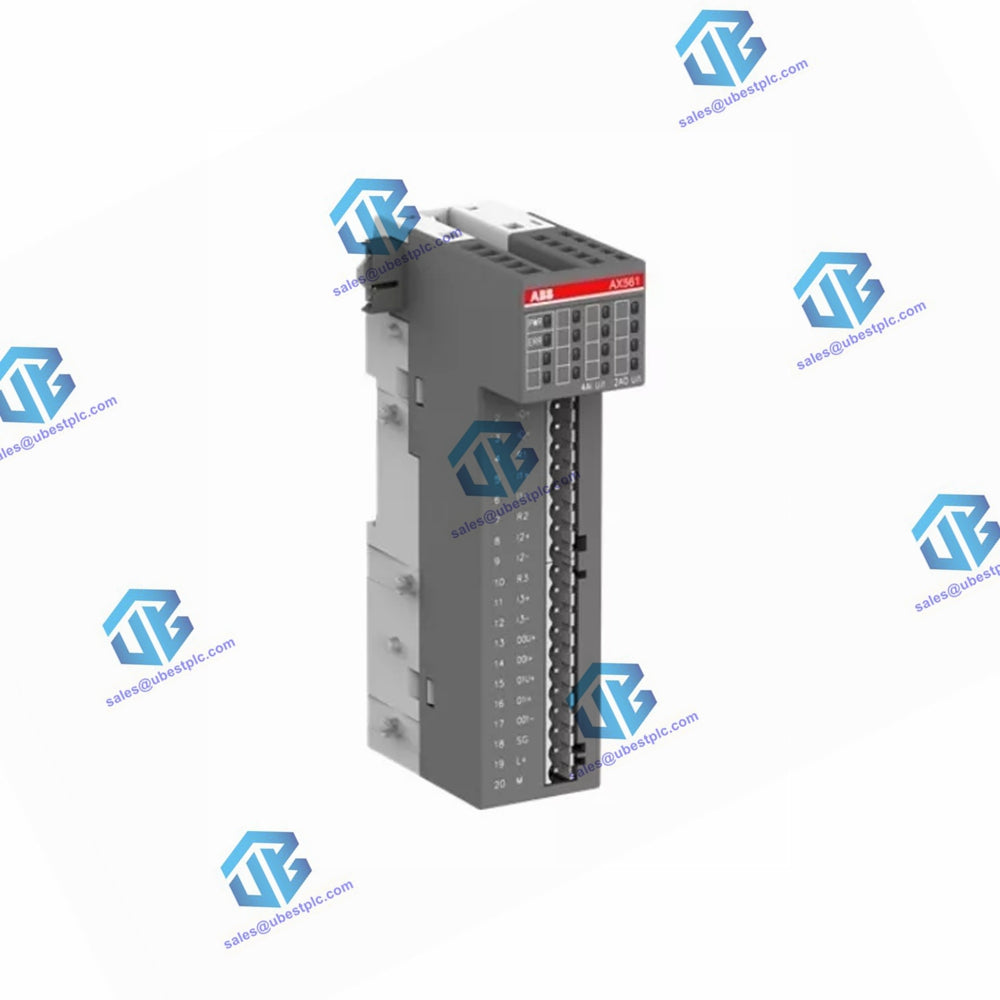

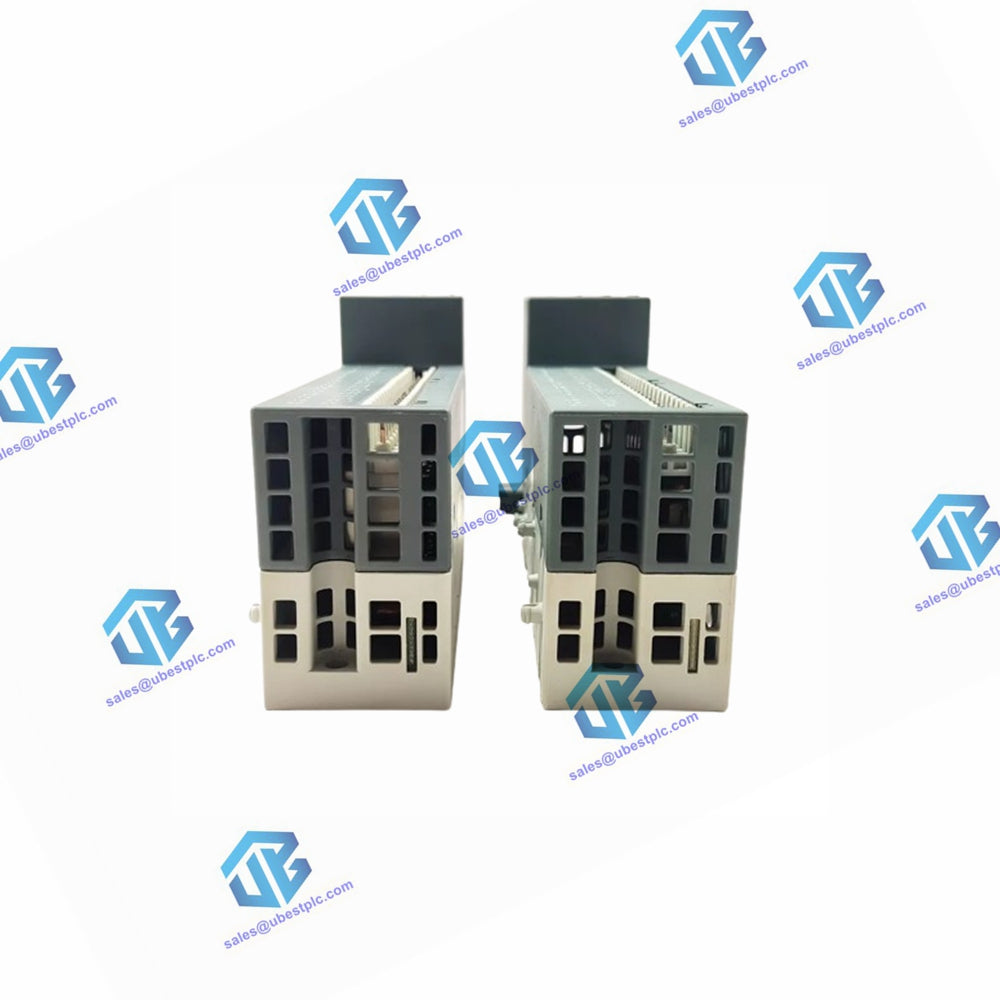

ABB AX561 Analog Input/Output Module Specifications

General Information

• Extended Product Type: AX561
• Product ID: 1TNE968902R1301
• ABB Type Designation: AX561
• EAN: 6943747170190
• Catalog Description: AX561: S500, Analog IO Module, 4AI/2AO U/I
• Long Description: AX561: S500, Analog IO Module, 4AI/2AO U/I 12bit+sign, 24VDC, 2-wire input, 1-wire output

Technical Specifications

• Ambient Air Temperature:
  • Operation: 0 ... +60 °C
  • Storage: -40 ... +70 °C
• Analog Inputs:
  • Channels: 4
  • Input Range: 0 ... 20mA, 4 ... 20mA, 0 ... +5V, 0 ... +10V, -2.5 ... +2.5V, -5V ... +5V
  • Resolution: 11bit + sign
• Analog Outputs:
  • Channels: 2
  • Output Range: 0 ... 20mA, 4 ... 20mA, -10 ... +10V
  • Resolution: 12bit + sign
• Degree of Protection: IP20

Certifications

Environmental Information

• Maximum Operating Altitude: 2000 m
• RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Physical Characteristics

• Gross Weight: 0.17 kg
• Net Weight: 0.13 kg
• Dimensions (H x L x W): 74 mm x 135 mm x 34 mm

Mounting Information

• Mounting Type: DIN rail and panel mounting
• Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
• Mounting Position: Horizontal, Vertical possible with derating

Usage Information

• Product Main Type: AX561
• Product Name: Distributed Automation I/Os
• Product Type: PLC-AC500-eCo
• Programming Software: AC500 Control Builder PS501-PROG
