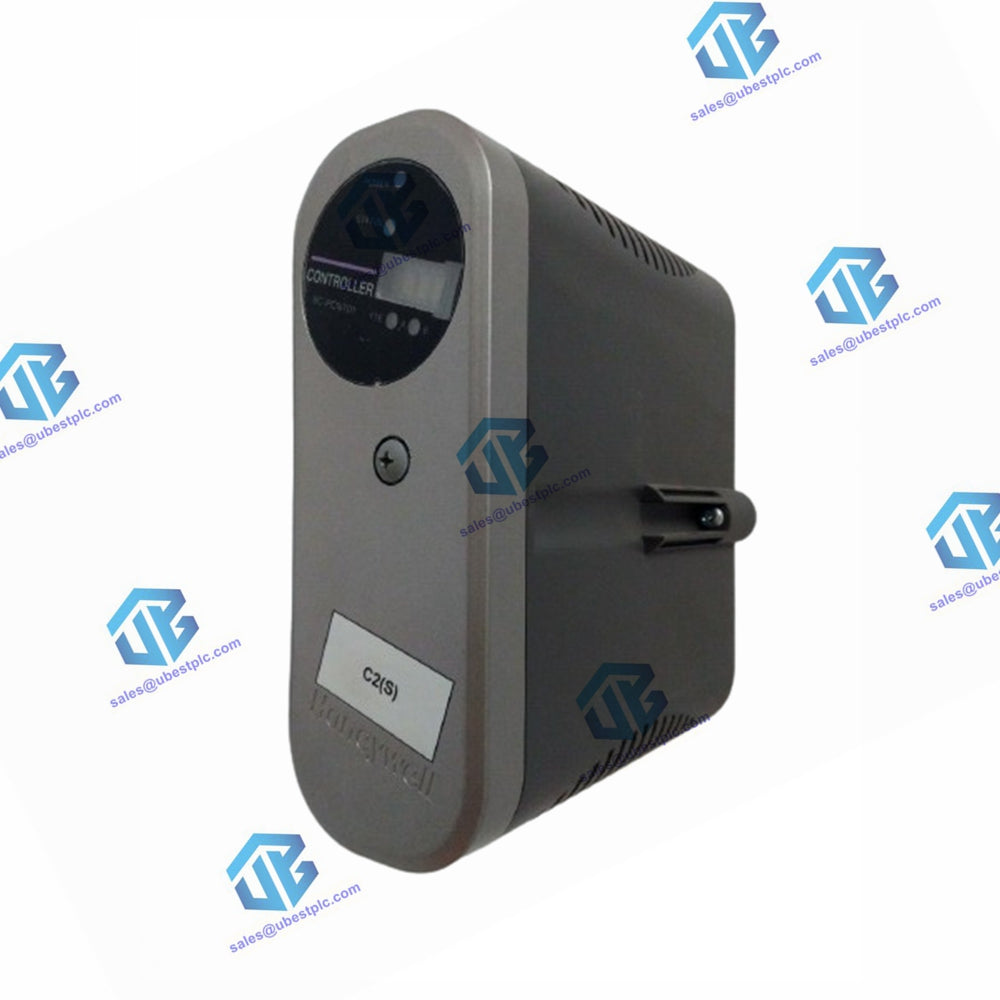

8C-PAIN01 Product Specifications

General:

• Product Type: Analog Input Module
• Model: 8C-PAIN01
• Spare Model: 51454356-175
• Manufacturer: Honeywell
• Dimensions: 5.1 cm x 26.7 cm x 17.8 cm
• Weight: 0.5 kg
• Origin: USA

Analog Input Specifications:

• Input Type: High-impedance, differential voltage, optically isolated (1000 VDC)
• Input Range:
  • -40 to +40 mA
  • 0 to 10 V
  • 0 to 20 mA
• Accuracy: ±0.1% of full scale
• Resolution: 0.01% of full scale
• Input Impedance: >10 MΩ
• Common Mode Voltage Rejection: >120 dB at 60 Hz
• Overload Protection: 120% of full scale for 2 seconds, 150% of full scale for 0.1 seconds

Digital Input Specifications:

• Input Type: Dry contact
• Input Voltage Range: 24 VDC minimum to 250 VAC maximum
• Input Current: 2 mA maximum
• Debounce Time: 5 ms
• Logic Levels:
  • Low: 0 to 2.4 V
  • High: 8 to 250 V

Communication Specifications:

• Protocol: RS-485
• Baud Rate: 9600 to 115,200 bps
• Data Format: 8 bits, 1 stop bit, no parity
• Address Range: 1 to 255

Environmental Specifications:

• Operating Temperature: -40 to +70°C (-40 to +158°F)
• Storage Temperature: -55 to +85°C (-67 to +185°F)
• Humidity: 0 to 95% RH non-condensing
• Vibration: 0.05 g rms (5 to 500 Hz)
• Shock: 15 g (50 ms)
