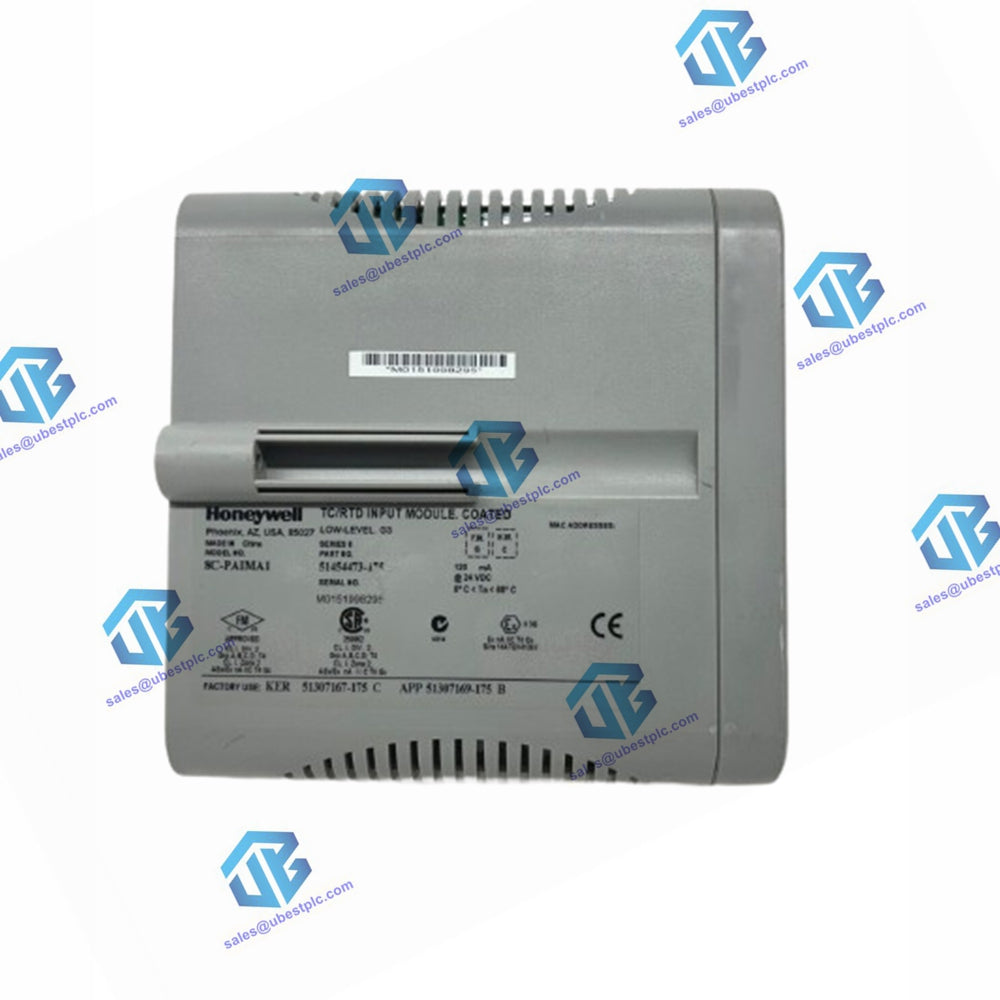

8C-PAIMA1 Honeywell Low Level Analog Input Module
Manufacturer:
Honeywell
Product No.:
8C-PAIMA1
Condition:
In Stock
Product Type:
Analog Input Module
Product Origin:
USA
Weight:
300g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
8C-PAIMA1 Low Level Analog Input (Temperature) LLAI Module
The Low Level Analog Input (LLAI) Module, designated as 8C-PAIMA1, is designed to accommodate up to 16 channels of temperature inputs from both RTD (Resistance Temperature Detector) and TC (Thermocouple) sensors. This module offers robust features and precise temperature measurement capabilities suitable for industrial applications.
Notable Features:
- TC and RTD Operation: Supports both Thermocouple and RTD sensor inputs, providing flexibility in temperature sensing applications.
- Remote Cold Junction Compensation Capability: Ensures accurate temperature measurements by compensating for variations in ambient temperature.
- 1 Second PV Scanning with OTD Protection: Performs Open Thermocouple Detection (OTD) within the scanning cycle to validate temperature readings, enhancing reliability.
- Configurable OTD Protection: Allows configuration to handle Open Thermocouple Detection events, preventing erroneous control actions.
- Temperature Point Addition: Temperature points can be added in 16 point increments, facilitating scalability and customization of temperature monitoring.
Detailed Specifications - Low Level Analog Input – RTD & TC (8C-PAIMA1)
| Parameter | Specification |
|---|---|
| Input / Output Module | 8C-PAIMA1 - Low Level Analog (Temperature) Input, Coated |
| IOTA Modules | 8C-TAIMA1 Non-Redundant, Coated 9” |
| Input Type | Thermocouple and/or RTD |
| Voltage Rating | 24 VDC |
| Module Current Rating | 120 mA |
| Input Channels | 16 fully-isolated channel-to-channel, channel-to-IOL, and channel-to-power supply common in 16 channel increments |
| Input Scan Rate | 1 second fixed by IOM, (up to 16 channels/sec max.) |
| Channel Bandwidth | 0 to 4.7 Hz (-3 dB) |
| Nominal Input Range (TC only) | -20 to +100 millivolts |
| Maximum Normal Mode Continuous Input | -10 to +10 volts (TC); -1 to +2 Volts @ 100 milliamps (RTD) |
| Gain Error (-20 to +100 millivolt range) | 0.050% full scale max |
| Temperature Stability (TC, millivolt) | +/-20 ppm per deg C max |
| Temperature Stability (RTD) | +/-20 ppm per deg C max |
| Long Term Drift | 500 ppm |
| Input Impedance | 1 megohm at DC (TC only) |
| CMV with Respect to Power System Common | DC to 60 Hz |
| Channel to Shield Voltage | +/-250 VDC or VAC RMS |
| Channel to Channel Voltage | +/-33 VDC or VAC RMS |
| CMRR at 50/60 Hz | 120 dB min (with 1000 ohms source impedance max.) |
| Voltage Crosstalk | 80 dB (120 dB at 50 and 60 Hz) |
| NMRR at 50/60 Hz | 60 dB min |
| Line Frequency Integration | Fixed selection of 50 Hz or 60 Hz |
| RTD Sensor Excitation Current | 1 milliamp |
| Cold Junction Compensation Range | -20 to +60 deg C (± 0.5 deg C typical) |
| TC Linearization Accuracy | ± 0.05 Ω / deg C |
| Open Thermocouple Detection | Each conversion qualified, ≤ 1000 Ω = guaranteed no-trip; ≥ 1500 Ω = guaranteed trip |
| RTD Max Lead Resistance | 15 Ω |
| Surge Protection (Sensor Terminals) | EN 61000-4-5 (Industrial locations, 1kV line to line, 2kV line to ground) |
| Surge Protection (Power/Serial Link) | EN 61000-4-5 (Industrial locations, 1kV line to line, 2kV line to ground) |
| Supported RTD Types | Pt: 100 ohm DIN 4376, Pt: 100 ohm JIS C-1604, Pt: 1000 ohm, Ni: 120 ohm ED #7, Cu: 10 ohm SEER, Cu: 50 ohm SEER |
| Supported Thermocouple Types | ANSI specifications J, K, E, T, B, S, R, N |
| Supported Millivolt Types | -20 to +100 millivolts |
