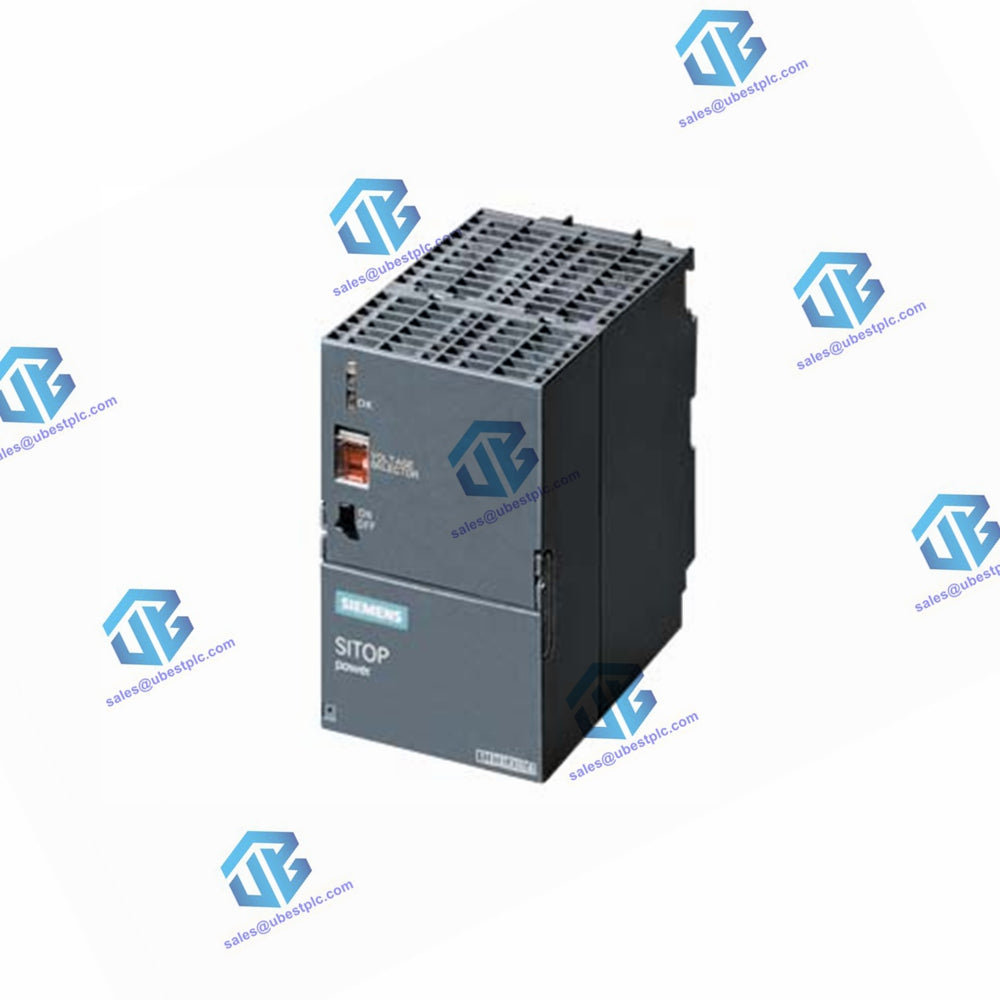

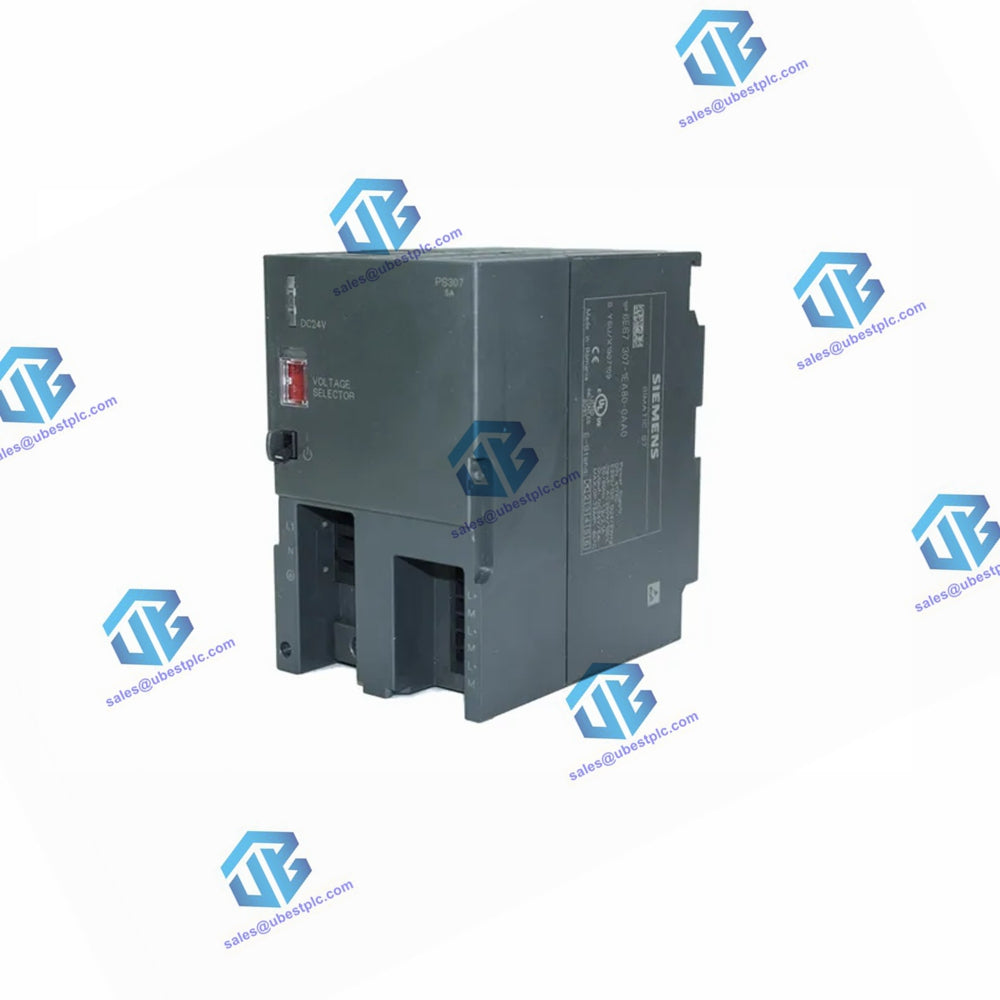

| Parameter |
Specification |
| Input |
-
Type of the Power Supply Network: 1-phase AC
- Supply Voltage at AC:
-
1 at AC rated value: 120 V
-
2 at AC rated value: 230 V
- Input Voltage:
-
1 at AC: 93 ... 132 V
-
2 at AC: 187 ... 264 V
-
Design of Input Wide Range Input: No
-
Overvoltage Overload Capability: 2.3 × Vin rated, 1.3 ms
- Operating Condition of the Mains Buffering at Vin = 93/187 V:
-
Buffering Time for Rated Value of the Output Current in the Event of Power Failure Minimum: 20 ms
- Line Frequency:
-
1 Rated Value: 50 Hz
-
2 Rated Value: 60 Hz
-
Line Frequency: 47 ... 63 Hz
- Input Current:
-
At Rated Input Voltage 120 V: 2.1 A
-
At Rated Input Voltage 230 V: 1.2 A
-
Current Limitation of Inrush Current at 25 °C Maximum: 45 A
-
Duration of Inrush Current Limiting at 25 °C Maximum: 3 ms
|
| Output |
-
Voltage Curve at Output: Controlled, isolated DC voltage
-
Output Voltage at DC Rated Value: 24 V
- Output Voltage:
-
At Output 1 at DC Rated Value: 24 V
-
Relative Overall Tolerance of the Voltage: 3 %
- Relative Control Precision of the Output Voltage:
-
On Slow Fluctuation of Input Voltage: 0.2 %
-
On Slow Fluctuation of Ohm Loading: 0.4 %
- Residual Ripple:
-
Maximum: 150 mV
-
Typical: 40 mV
- Voltage Peak:
-
Maximum: 240 mV
-
Typical: 90 mV
-
Product Function Output Voltage Adjustable: No
-
Type of Output Voltage Setting: -
-
Display Version for Normal Operation: Green LED for 24 V OK
-
Behavior of the Output Voltage When Switching On: No overshoot of Vout (soft start)
-
Response Delay Maximum: 3 s
-
Voltage Increase Time of the Output Voltage: 100 ms (typical)
- Output Current:
-
Rated Value: 5 A
-
Rated Range: 0 ... 5 A
-
Supplied Active Power: 120 W (typical)
- Short-term Overload Current:
-
On Short-circuiting During the Start-up: 20 A (typical)
-
At Short-circuit During Operation: 20 A (typical)
- Duration of Overloading Capability for Excess Current:
-
On Short-circuiting During the Start-up: 180 ms
-
At Short-circuit During Operation: 80 ms
-
Product Feature: Bridging of equipment No
|
| Efficiency |
-
Efficiency in Percent: 84 %
- Power Loss [W]:
-
At Rated Output Voltage for Rated Value of the Output Current: 23 W (typical)
|
| Closed-loop Control |
-
Relative Control Precision of the Output Voltage with Rapid Fluctuation of the Input Voltage by +/- 15%: 0.3 % (typical)
-
Relative Control Precision of the Output Voltage Load Step of Resistive Load 50/100/50 %: 3 % (typical)
- Setting Time:
-
Load Step 50 to 100 %: 0.2 ms (typical)
-
Load Step 100 to 50 %: 0.2 ms (typical)
-
Setting Time Maximum: 5 ms
|
| Dimensions |
-
Width of the Enclosure: 80 mm
-
Height of the Enclosure: 125 mm
-
Depth of the Enclosure: 120 mm
|
| Net Weight |
0.57 kg |
